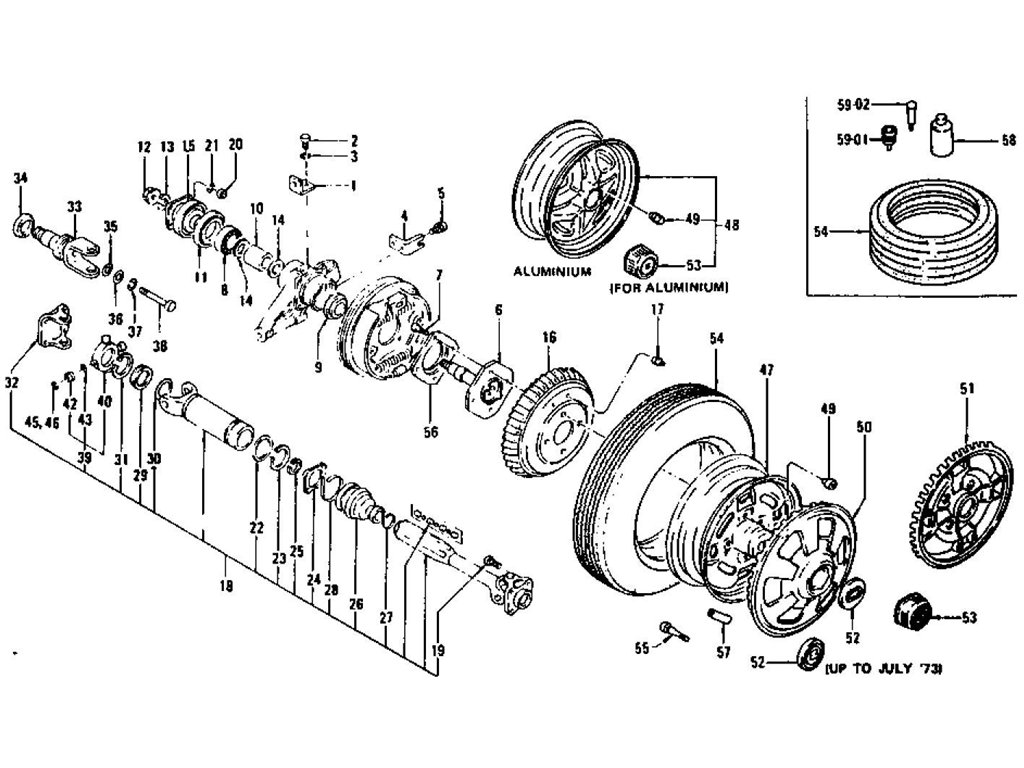

Rear Axle & Drive Shaft
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BRACKER-HOSE REAR BR | 46325-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 1 | BRACKET-HOSE REAR BR | 46325-E4100 | 7307 | 2 | |||||
| 1 | BRACKET-HOSE REAR BR | 46326-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 2 | BOLT-HEX M6X1.0 | 08120-61010 | 4 | ||||||
| 3 | WASHER-LOCK | 08915-13610 | 4 | ||||||
| 4 | BRACKET-REAR CABLE H | 36534-E4100 | 7307 | 2 | |||||
| 4 | BRACKET-REAR CABLE H | 36534-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 36534-E4100 | |
| 5 | BOLT-HEX WITH SPRING | 08120-61414 | 7307 | 4 | |||||
| 5 | BOLT-HEX WITH SPRING | 08120-61462 | 4 | Yes | Yes | 08120-61414 | |||
| 6 | ASSY-SHAFT REAR AXLE | 38162-E4100 | 7307 | 2 | |||||
| 6 | ASSY-SHAFT REAR AXLE | 38164-E4150 | 7307 | 2 | Yes | Yes | 38162-E4100 | ||
| 6 | ASSY-SHAFT REAR AXLE | 38164-N3401 | 2 SEATER 2+2 SEAT ER | 2 | 38164-N3400 | ||||
| 6 | ASSY-SHAFT REAR AXLE | 38164-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 38162-E4150 | |
| 7 | BOLT-HUB ROAD WHEEL | 40222-A0800 | 7307 | 8 | |||||
| 7 | BOLT-SHAFT REAR AXLE | 43222-N3200 | 2 SEATER | 7308 | 8 | No | No | 40222-A0800 | |
| 8 | BEARING-REAR WHEEL I | 43210-E4100 | 2 | ||||||
| 9 | BEARING-REAR WHEEL O | 43215-E4100 | 2 | ||||||
| 10 | (PIECE-DISTANCE BEAR | 43092-E4100 | 2 | ||||||
| 10 | PIECE-DISTANCE BEARI | 43090-E4100 | 2 | ||||||
| 10 | PIECE-DISTANCE BEARI | 43091-E4100 | 2 | ||||||
| 11 | SEAL-GREASE REAR AXL | 43232-E4100 | 2 | ||||||
| 12 | NUT-LOCK REAR WHEEL | 43262-21000 | 2 | ||||||
| 13 | WASHER-LOCK REAR WHE | 08915-45010 | 2 | ||||||
| 14 | WASHER-BEARING REAR | 43211-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | ||||
| 15 | ASSY-FLANGE COMPANIO | 43213-E4100 | 7307 | 2 | |||||
| 15 | ASSY-FLANGE COMPANIO | 43213-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 43213-E4100 | |
| 16 | DRUM-BRAKE REAR | 43206-E4100 | 2 | ||||||
| 17 | PLUG-ADJUST HOLE REA | 43208-E4100 | 2 | ||||||
| 18 | ASSY-DRIVE SHAFT | 39600-E4150 | 7206 | 2 | |||||
| 18 | ASSY-DRIVE SHAFT | 39600-E4110 | 7207 | 7304 | 2 | Yes | Yes | 39600-E4150 | |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4251 | 7412 | 7607 | 2 | ||||
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N3851 | 2 SEATER & 2+2 SE ATER AUTO | 7308 | 7404 | 2 | |||
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N3856 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 7408 | 2 | Yes | Yes | 39600-N3851 |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4151 | 2 SEATER & 2+2 SE ATER AUTO | 7409 | 7411 | 2 | Yes | Yes | 39600-N3856 |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4156 | 2 SEATER 2+2 SEAT ER AUTO | 7411 | 2 | Yes | Yes | 39600-N4151 | |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4151 | AUTOMATIC | 7608 | 7611 | 2 | No | No | 39600-N4251 |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4156 | AUTOMATIC | 7612 | 2 | Yes | Yes | 39600-N4151 | |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N3751 | MANUAL | 7305 | 7404 | 2 | |||
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N3756 | MANUAL | 7405 | 7408 | 2 | Yes | Yes | 39600-N3751 |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4251 | MANUAL | 7409 | 7607 | 2 | Yes | Yes | 39600-N3756 |
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4251 | MANUAL | 7608 | 7707 | 2 | |||
| 18 | ASSY-DRIVE SHAFT WIT | 39600-N4256 | MANUAL | 7708 | 2 | ||||
| 19 | BOLT-BOX DRIVE SHAFT | 39628-E4100 | 2 SEATER | 7308 | 8 | ||||
| 20 | NUT-HEX M10X1.25 | 39627-E4100 | 7307 | 16 | |||||
| 20 | NUT-HEX M10X1.25 | 39627-N3000 | 2 SEATER 2+2 SEAT ER | 7308 | 8 | No | No | 39627-E4100 | |
| 21 | WASHER-SPRING | 08915-14010 | 16 | ||||||
| 22 | STOPPER-SLEEVE YOKE | 39657-21000 | 2 | ||||||
| 23 | RING-SNAP | 00922-25000 | 4 | ||||||
| 24 | STOPPER-DRIVE SHAFT | 39653-21000 | 2 | ||||||
| 25 | RING-SNAP DRIVE SHAF | 39654-21000 | 2 | ||||||
| 26 | BOOT-RUBBER DRIVE SH | 39655-21002 | 7611 | 2 | |||||
| 26 | BOOT-RUBBER DRIVE SH | 39655-U7600 | 7612 | 2 | No | No | 39655-21002 | ||
| 27 | BAND-BOOT | 39658-21000 | 2 | ||||||
| 27 | BAND-BOOT | 39658-21050 | 7611 | 2 | Yes | Yes | 39658-21000 | ||
| 27 | BAND-BOOT | 39658-U7600 | 7612 | 2 | No | No | 39658-21050 | ||
| 28 | BAND-BOOT | 39659-21000 | 2 | ||||||
| 28 | BAND-BOOT | 39659-21050 | 7611 | 2 | Yes | Yes | 39659-21000 | ||
| 28 | BAND-BOOT | 39659-U7600 | 7612 | 2 | No | No | 39659-21050 | ||
| 29 | PLUG-SLEEVE YOKE | 39661-21000 | 7611 | 2 | |||||
| 29 | PLUG-SLEEVE YOKE | 39661-U7100 | 7612 | 2 | No | No | 39661-21000 | ||
| 30 | SEAL-"O" RING | 39662-21000 | 7611 | 2 | |||||
| 31 | RING-SNAP | 00922-25000 | 7611 | 4 | |||||
| 31 | RING-SNAP | 00922-25000 | 7612 | 2 | |||||
| 32 | YOKE-FLANGE | 39617-A0600 | 4 | ||||||
| 33 | ASSY-YOKE SIDE | 39610-U3800 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | ||||
| 34 | SHIELD-DUST | 38224-N3101 | 2 SEATER & 2+2 SE ATER AUTO | 2 | |||||
| 34 | SHIELD-DUST | 38224-78500 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | ||||
| 35 | RING-"O" | 38223-21000 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | ||||
| 36 | WASHER-PLAIN | 08915-44010 | 2 SEATER & 2+2 SE ATER AUTO | 2 | Yes | Yes | 08915-44000 | ||
| 36 | WASHER-PLAIN | 08915-44000 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | ||||
| 37 | WASHER-SPRING | 08915-24000 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | ||||
| 37 | WASHER-SPRING | 08915-24010 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | Yes | Yes | 08915-24000 | |
| 38 | BOLT-FIX SIDE YOKE | 39614-A9000 | 2 SEATER & 2+2 SE ATER AUTO | 7405 | 2 | ||||
| 39 | ASSY-SPIDER WITH BEA | 39625-21001 | 4 | ||||||
| 39 | ASSY-SPIDER WITH BEA | 39625-21026 | 4 | Yes | Yes | 39625-21001 | |||
| 39 | ASSY-SPIDER WITH BEA | 39625-U0127 | 2 SEATER & 2+2 SE ATER | 7308 | 7404 | 4 | |||
| 39 | ASSY-SPIDER WITH BEA | 39625-N3725 | 2 SEATER & 2+2 SE ATER | 7405 | 7408 | 4 | Yes | Yes | 39625-U0127 |
| 39 | ASSY-SPIDER WITH BEA | 39625-N4125 | 2 SEATER & 2+2 SE ATER | 7409 | 4 | Yes | Yes | 39625-N3725 | |
| 40 | SPIDER | 39626-21001 | 4 | ||||||
| 41 | PLUG FILLER | 37137-76000 | 4 | ||||||
| 42 | ASSY-BEARING RACE | 39630-21004 | 7307 | 16 | |||||
| 42 | ASSY-BEARING RACE | 39630-N4200 | 7409 | 16 | |||||
| 42 | ASSY-BEARING RACE | 39630-21006 | 2 SEATER & 2+2 SE ATER | 7308 | 7408 | 16 | Yes | Yes | 39630-21004 |
| 43 | SEAL-OIL | 39634-21001 | 7307 | 16 | |||||
| 43 | SEAL-OIL BEARING RAC | 39634-21006 | 7308 | 16 | Yes | Yes | 39634-21001 | ||
| 44 | COVER-DUST OIL SEAL | 39636-21004 | 2 | ||||||
| 45 | RING-SNAP BEARING RA | 39646-21001 | 16 | ||||||
| 45 | RING-SNAP BEARING RA | 39647-21001 | 16 | ||||||
| 45 | RING-SNAP BEARING RA | 39648-21001 | 16 | ||||||
| 45 | RING-SNAP BEARING RA | 39649-21001 | 16 | ||||||
| 46 | RING-SNAP BEARING RA | 39646-21002 | 16 | ||||||
| 46 | RING-SNAP BEARING RA | 39647-21002 | 16 | ||||||
| 46 | RING-SNAP BEARING RA | 39648-21002 | 16 | ||||||
| 47 | ASSY-ROAD WHEEL 5-JX | 40300-E4400 | 3 | ||||||
| 48 | ASSY-ROAD WHEEL (FOR | 40300-N4700 | 7608 | 1 | |||||
| 48 | SET-ROAD WHEEL 5-1/2 | 40300-N3225 | 3 | ||||||
| 48 | SET-ROAD WHEEL 5-1/2 | 40300-N3227 | 3 | Yes | Yes | 40300-N3225 | |||
| 49 | NUT-WHEEL ROAD | 40224-21001 | 8 | ||||||
| 49 | NUT-WHEEL ROAD (FOR | 40224-A0200 | 7608 | 8 | |||||
| 50 | ASSY-COVER ROAD WHEE | 40315-E4100 | 2 | ||||||
| 50 | ASSY-COVER ROAD WHEE | 40315-E4101 | 2 | Yes | Yes | 40315-E4100 | |||
| 51 | ASSY-COVER ROAD WHEE | 40315-N4700 | OP | 7608 | 2 | ||||
| 52 | ORNAMENT-WHEEL COVER | 40343-E4100 | 7307 | 2 | |||||
| 52 | ORNAMENT-WHEEL COVER | 40343-E8800 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | ||||
| 53 | ORNAMENT-ROAD WHEEL( | 40343-N4700 | OP | 7608 | 2 | ||||
| 54 | TIRE-175-HR-14 | 40312-E4645 | 7608 | 2 | |||||
| 54 | TIRE-175-HR-14 | 40312-E4645 | 2 SEATER 2+2 SEAT ER | 7310 | 7607 | 3 | |||
| 54 | TIRE-175-SR-14 TUBEL | 40312-E4643 | 3 | ||||||
| 54 | TIRE-195-70-HR-14 TU | 40312-N4240 | OP. | 7608 | 2 | ||||
| 54 | TIRE-195-70-HR-14 WI | 40310-N4140 | OP. | 7409 | 7607 | 3 | |||
| 54 | TIRE-SPARE C78=14(LO | 40312-N4700 | 7608 | 1 | |||||
| 55 | VALVE-AIR (FOR TUBE | 40311-H1000 | 3 | ||||||
| 56 | CATCHER-GREASE REAR | 43242-E4100 | 2 | ||||||
| 57 | WEIGHT-BALANCE ROAD | 40321-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40322-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40323-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40324-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40325-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40326-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40327-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40328-32200 | 7307 | 0 | |||||
| 57 | WEIGHT-BALANCE ROAD | 40329-32200 | 7307 | 0 | |||||
| 58 | ASSY-CANISTER(LOCAL | 40313-N4700 | 7608 | 1 | |||||
| 59 | VALVE-INFLATION (FOR | 40311-N4701 | 7608 | 1 | |||||
| 59 | VALVE-RELIEF (FOR SP | 40311-N4700 | 7608 | 1 |
