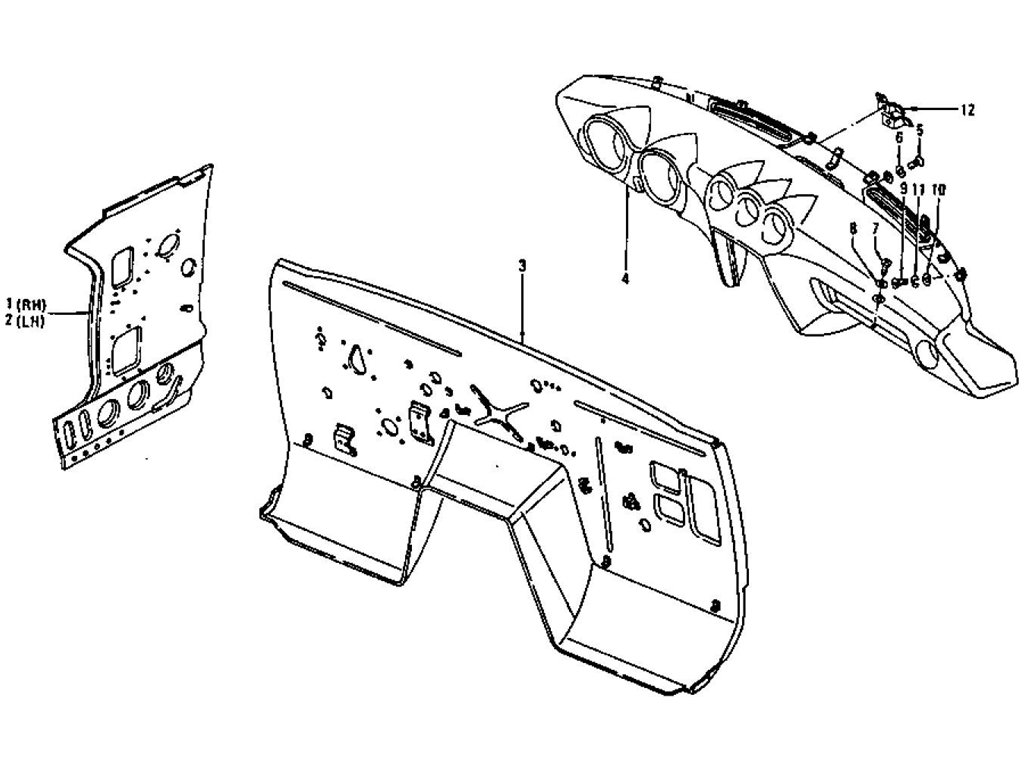

Dash Panel, Dash Side Panel & Instrument (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PANEL DASH SIDE | 66400-E4600 | 7206 | 1 | |||||
| 1 | ASSY-PANEL DASH SIDE | 66400-N3300 | 7207 | 1 | No | No | 66400-E4600 | ||
| 2 | ASSY-PANEL DASH SIDE | 66401-E4600 | 7206 | 1 | |||||
| 2 | ASSY-PANEL DASH SIDE | 66401-N3300 | 7207 | 1 | No | No | 66400-E4600 | ||
| 3 | ASSY-PANEL DUSE LOWE | 67100-N3300 | 7207 | 1 | No | No | 67100-E4600 | ||
| 3 | ASSY-PANEL DUSH LOWE | 67100-E4600 | 7206 | 1 | |||||
| 4 | ASSY-INSTRUMENT | 68100-E4600 | 1 | ||||||
| 4 | ASSY-INSTRUMENT | 68100-E8800 | 1 | Yes | Yes | 68100-E4600 | |||
| 4 | ASSY-INSTRUMENT | 68100-N3300 | 7207 | 1 | No | No | 68100-E8800 | ||
| 5 | SCREW-MACHINE MS | 08310-50810 | 3 | ||||||
| 5 | SCREW-MACHINE MS | 08310-50812 | 3 | Yes | Yes | 08310-50810 | |||
| 6 | WASHER-SPRING MS | 08915-13510 | 3 | ||||||
| 7 | SCREW-TAPPING MS TO | 08510-51210 | 17 | ||||||
| 7 | SCREW-TAPPING MS TO | 08510-51212 | 17 | Yes | Yes | 08510-51210 | |||
| 8 | WASHER-SPRING MS TO | 08915-13510 | 17 | ||||||
| 9 | SCREW-MACHINE M6 | 08360-61010 | 12 | ||||||
| 9 | SCREW-MACHINE M6 | 08360-61012 | 12 | Yes | Yes | 08360-61010 | |||
| 10 | WASHER-PLAIN M6 | 08915-43610 | 12 | ||||||
| 11 | WASHER-SPRING M6 | 08915-13610 | 12 | ||||||
| 12 | BRACKET CIGLIGHTER A | 68136-N3000 | 7206 | 1 |
