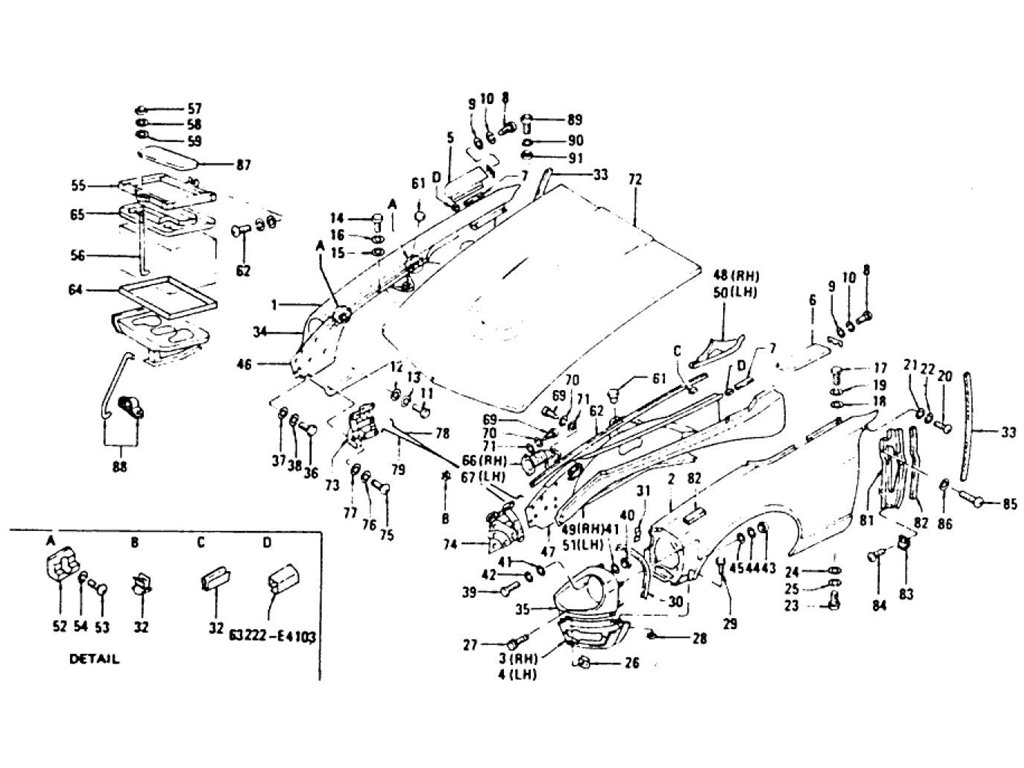

Front Fender, Head Lamp Case, Hood Ledge & Hood (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FRONT FENDER RH | 63100-E4600 | 1 | ||||||
| 1 | ASSY-FRONT FENDER RH | 63100-N3600 | 1 | Yes | Yes | 63100-E4600 | |||
| 1 | ASSY-FRONT FENDER RH | 63100-N4700 | 1 | Yes | Yes | 63100-N3600 | |||
| 2 | ASSY-FRONT FENDER LH | 63101-E4600 | 1 | ||||||
| 2 | ASSY-FRONT FENDER LH | 63101-N3600 | 1 | Yes | Yes | 63101-E4600 | |||
| 2 | ASSY-FRONT FENDER LH | 63101-N4700 | 1 | Yes | Yes | 63101-N3600 | |||
| 3 | PANEL-FRONT FENDER F | 63120-E4100 | 1 | ||||||
| 3 | PANEL-FRONT FENDER F | 63120-N3601 | 1 | Yes | Yes | 63120-E4100 | |||
| 4 | PANEL-FRONT FENDER F | 63121-E4100 | 1 | ||||||
| 4 | PANEL-FRONT FENDER F | 63121-N3601 | 7207 | 1 | Yes | Yes | 63121-E4100 | ||
| 5 | ASSY-LID BATTERY INS | 63200-E4101 | 7003 | 1 | |||||
| 5 | ASSY-LID BATTERY INS | 63200-E4100 | 7004 | 7204 | 1 | No | No | 63200-E4101 | |
| 5 | ASSY-LID BATTERY INS | 63200-E4102 | 7205 | 1 | No | No | 63200-E4100 | ||
| 6 | ASSY-LID BATTERY INS | 63201-E4101 | 7003 | 1 | |||||
| 6 | ASSY-LID BATTERY INS | 63201-E4100 | 7004 | 7204 | 1 | No | No | 63201-E4101 | |
| 6 | ASSY-LID BATTERY INS | 63201-E4102 | 7205 | 1 | No | No | 63201-E4100 | ||
| 7 | RUBBER-CUSHION | 63223-E4101 | 2 | Yes | Yes | 63223-E4100 | |||
| 7 | RUBBER-CUSHION | 63223-E4102 | 2 | Yes | Yes | 63223-E4101 | |||
| 8 | SCREW-MACHINE M5X0.8 | 08360-51210 | 4 | ||||||
| 8 | SCREW-MACHINE M5X0.8 | 08360-51212 | 4 | Yes | Yes | 08360-51210 | |||
| 9 | WASHER-RLAIN | 08915-43510 | 4 | ||||||
| 10 | WASHER-LOCK | 08915-13510 | 4 | ||||||
| 11 | BOLT-HEX HEAD LAMP S | 08110-61210 | 4 | ||||||
| 12 | WASHER-PRAIN HEAD LA | 08915-43610 | 4 | ||||||
| 13 | WASHER-PRAIN HEAD LA | 08915-13610 | 4 | ||||||
| 14 | BOLT-HEX FENDER TO H | 08110-61210 | 6 | ||||||
| 15 | WASHER-PLAIN FEDER T | 08915-43610 | 6 | ||||||
| 16 | WASHER-SPRING FENDER | 08915-13610 | 6 | ||||||
| 17 | BOLT-HEX COWL TOP TO | 08110-61210 | 4 | ||||||
| 18 | WASHER-PLAIN COWL TO | 08915-43610 | 4 | ||||||
| 19 | WASHER-SPRING COWL T | 08915-13610 | 4 | ||||||
| 20 | SCREW-MACHINE FENDER | 08360-81610 | 2 | ||||||
| 21 | WASHER-PLAIN FENDER | 08915-43810 | 2 | ||||||
| 22 | WASHER-SPRING FENDER | 08915-13810 | 2 | ||||||
| 23 | SCREW-MACHINE FENDER | 08360-81610 | 4 | ||||||
| 24 | WASHER-PLAIN FENDER | 08915-43810 | 4 | ||||||
| 25 | WASHER-SPRING FENDER | 08915-13810 | 4 | ||||||
| 26 | NUT-JOINT RETAINER | 63140-78500 | 4 | ||||||
| 27 | CAM-SCREW WITH WASHE | 77720-89908 | 4 | ||||||
| 28 | NUT-JOINT RETAINER | 63140-78500 | 4 | ||||||
| 29 | CAM-SCREW WITH WASHE | 77720-89908 | 4 | ||||||
| 30 | PACKING-FRONT FENDER | 63811-E4101 | 2 | ||||||
| 31 | SEALING-HEAD LAMP SU | 63814-E4100 | 2 | ||||||
| 32 | LOCK-LID INSPECTION | 63209-E4100 | 2 | ||||||
| 32 | LOCK-LID INSPECTION | 63209-E4101 | 2 | ||||||
| 33 | FILLER-BAFFLE FRONT | 63810-E4100 | 2 | ||||||
| 34 | CASE-HEAD LAMP RH (F | 63115-E4100 | 7206 | 1 | |||||
| 34 | CASE-HEAD LAMP RH (S | 63115-N4600 | 1 | Yes | Yes | 63115-N3000 | |||
| 34 | CASE-HEAD LAMP RH (S | 63115-N3000 | 7207 | 1 | Yes | Yes | 6311K-E4100 | ||
| 35 | CASE-HEAD LAMP LH (F | 63116-E4100 | 7206 | 1 | |||||
| 35 | CASE-HEAD LAMP LH (S | 63116-N4600 | 1 | Yes | Yes | 63116-N3000 | |||
| 35 | CASE-HEAD LAMP LH (S | 63116-N3000 | 7207 | 1 | Yes | Yes | 63116-E4100 | ||
| 36 | BOLT-HEX | 01111-00022 | 6 | Yes | Yes | 08110-61610 | |||
| 36 | BOLT-HEX | 08110-61610 | 6 | ||||||
| 37 | WASHER-PLAIN | 08915-43610 | 6 | ||||||
| 38 | WASHER-SPRING | 08915-13610 | 6 | ||||||
| 39 | BOLT-HEX | 01111-00022 | 4 | Yes | Yes | 08110-61610 | |||
| 39 | BOLT-HEX | 08110-61610 | 4 | ||||||
| 40 | NUT-HEX | 08911-10610 | 4 | ||||||
| 41 | WASHER-PLAIN | 08915-43610 | 8 | ||||||
| 42 | WASHER-SPRING | 08915-13610 | 4 | ||||||
| 43 | NUT-HEX | 08911-10510 | 6 | ||||||
| 44 | WASHER-SPRING | 08915-13510 | 6 | ||||||
| 45 | WASER-PLAIN | 08915-43510 | 6 | ||||||
| 46 | ASSY-HOOD LEDGE RH | 64100-E4650 | 7206 | 1 | |||||
| 46 | ASSY-PANEL HOOD LEDG | 64100-N3350 | 7207 | 1 | Yes | Yes | 64100-E4650 | ||
| 47 | ASSY-HOOD LEDGE LH | 64101-E8050 | AUTOMATIC | 7206 | 1 | ||||
| 47 | ASSY-HOOD LEDGE LH | 64101-E4650 | MANUAL | 7206 | 1 | ||||
| 47 | ASSY-PANEL HOOD LEDG | 64101-N3350 | 7207 | 1 | Yes | Yes | 64101-E8050 | ||
| 48 | GUSSET-HOOD LEDGE CO | 64155-E4100 | 1 | ||||||
| 49 | ASSY-REINF FOOD LEDG | 64150-E4100 | 1 | ||||||
| 49 | ASSY-REINF FOOD LEDG | 64150-N4501 | 1 | Yes | Yes | 64150-E4100 | |||
| 50 | GUSSET-HOOD LEDGE CO | 64157-E4100 | 1 | ||||||
| 51 | ASSY-REINF HOOD LEDG | 64151-E4100 | 1 | ||||||
| 51 | ASSY-REINF HOOD LEDG | 64151-N4501 | 1 | Yes | Yes | 64151-E4100 | |||
| 52 | BUMPER-HOOD | 65157-E4100 | 4 | Yes | Yes | 64151-E4100 | |||
| 52 | BUMPER-HOOD | 65157-N4400 | 4 | Yes | Yes | 65157-E4100 | |||
| 53 | SCREW-MACHINE M6 | 08310-61212 | 4 | ||||||
| 54 | WASHER-SPRING M6 | 08915-13610 | 4 | ||||||
| 55 | ASSY-FRAME BATTERY F | 24420-E4600 | 1 | ||||||
| 56 | ROD-BATTERY SUPPORT | 24438-21000 | 1 | ||||||
| 57 | NUT-HEX M6 | 08911-10610 | 1 | ||||||
| 58 | WASHER-SPRING M6 | 08915-13610 | 2 | ||||||
| 59 | WASHER-PLAIN M6 | 08915-43610 | 2 | ||||||
| 60 | SCREW-MACHINE M6 | 08513-61212 | 1 | ||||||
| 61 | CAP-INSULATOR FRONT | 64810-E4100 | 2 | ||||||
| 62 | RUBBER-SEALING SIDE | 64807-E4100 | 2 | ||||||
| 63 | CLIP-SEALING RUBBER | 64809-E4100 | 12 | ||||||
| 64 | TRAY-BATTERY | 24428-19102 | 1 | ||||||
| 64 | TRAY-BATTERY | 24428-89920 | 1 | Yes | Yes | 24428-19102 | |||
| 65 | COVER-BATTERY | 24431-E4600 | 1 | ||||||
| 66 | ASSY-GUIDE AIR INTAK | 62590-E4100 | 1 | ||||||
| 66 | ASSY-GUIDE AIR INTAK | 62590-E4101 | 1 | Yes | Yes | 62590-E4100 | |||
| 67 | ASSY-GUIDE AIR INTAK | 62591-E4100 | 1 | ||||||
| 67 | ASSY-GUIDE AIR INTAK | 62591-E4101 | 1 | Yes | Yes | 62591-E4100 | |||
| 68 | PLATE-GUIDE AIR INTA | 62595-E4100 | 2 | ||||||
| 69 | SCREW-TAPPING | 08510-51210 | 8 | ||||||
| 69 | SCREW-TAPPING | 08510-51212 | 8 | Yes | Yes | 08510-51210 | |||
| 70 | WASHER-LOCK | 08915-13510 | 8 | ||||||
| 71 | WASHER-PLAIN | 08915-43510 | 8 | ||||||
| 72 | ASSY-HOOD | 65100-E4100 | 1 | ||||||
| 72 | ASSY-HOOD | 65100-N4200 | 1 | Yes | Yes | 65100-E4100 | |||
| 73 | ASSY-HINGE HOOD RH | 65410-E4101 | 1 | ||||||
| 74 | ASSY-HINGE HOOD LH | 65411-E4101 | 1 | ||||||
| 75 | SCREW-MACHINE | 08360-81610 | 10 | ||||||
| 76 | WASHER-LOCK | 08915-13810 | 10 | ||||||
| 77 | WASHER-PLAIN | 08915-43810 | 10 | ||||||
| 78 | BAR-TORSION HOOD HIN | 65415-E4100 | 1 | ||||||
| 79 | BAR-TORSION HOOD HIN | 65416-E4100 | 1 | ||||||
| 80 | PACK-FRONT FENDER | 63159-E4100 | 2 | ||||||
| 81 | MUD GUARD-FENDER LH | 63831-E4100 | 1 | ||||||
| 81 | MUD GUARD-FENDER RH | 63830-E4100 | 1 | ||||||
| 82 | SEALING-MUD GUARD | 63815-E4100 | 2 | ||||||
| 83 | RUBBER-MUD GUARD | 63835-E4100 | 2 | ||||||
| 84 | SCREW | 08510-51612 | 4 | ||||||
| 85 | SCREW | 08360-81212 | 6 | ||||||
| 86 | WASHER-PLAIN | 08915-43610 | 6 | ||||||
| 87 | CAP-BATTERY COVER | 24432-E4600 | 1 | ||||||
| 88 | ASSY-ROD | 65710-E4101 | 1 | ||||||
| 89 | COMP.-HOOD BUMPER | 63840-E4100 | 2 | ||||||
| 89 | COMP-HOOD BUMPER | 63840-46500 | 2 | Yes | Yes | 63840-73000 | |||
| 89 | COMP-HOOD BUMPER | 63840-73000 | 2 | Yes | Yes | 63840-E4100 | |||
| 90 | WASHER-LOCK HOOD BUM | 00916-31410 | 2 | ||||||
| 91 | NUT-HEX HOOD BUMPER | 08911-10510 | 2 |
