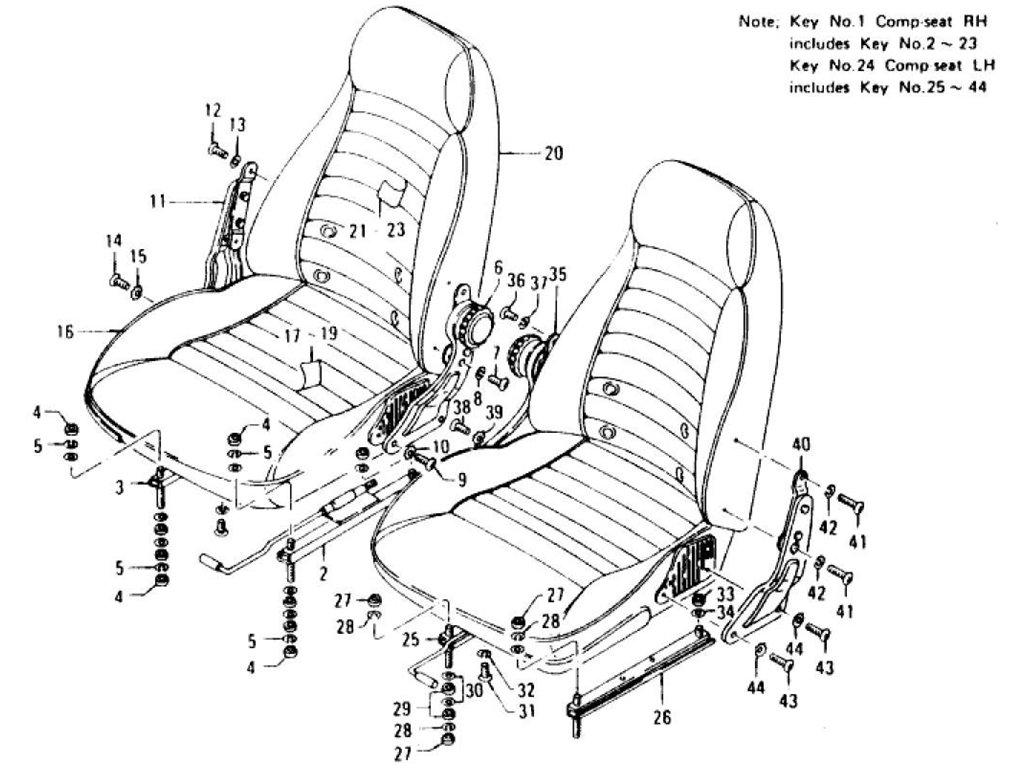

Seat & Slide (Type 1 Adjuster Seat) (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP-SEAT RH BLACK | 86000-E4605 | 1 | ||||||
| 1 | COMP-SEAT RH BLACK | 86000-E8203 | 1 | Yes | Yes | 86000-E4605 | |||
| 1 | COMP-SEAT RH BLACK | 86000-E8313 | 7112 | 1 | Yes | Yes | 86000-E8203 | ||
| 1 | COMP-SEAT RH BLUE | 86000-E4607 | 1 | ||||||
| 1 | COMP-SEAT RH BLUE | 86000-E8205 | 1 | Yes | Yes | 86000-E4607 | |||
| 1 | COMP-SEAT RH BLUE | 86000-E8315 | OP | 1 | Yes | Yes | 86000-E8205 | ||
| 1 | COMP-SEAT RH BROWN | 86000-E4606 | 1 | ||||||
| 1 | COMP-SEAT RH BROWN | 86000-E8204 | 1 | Yes | Yes | 86000-E4606 | |||
| 1 | COMP-SEAT RH BROWN | 86000-E8314 | 7112 | 1 | Yes | Yes | 86000-E8204 | ||
| 1 | COMP-SEAT RH BROWN | 86000-E8813 | 7201 | 1 | Yes | Yes | 86000-E8314 | ||
| 1 | COMP-SEAT RH BROWN | 86000-N3321 | 7207 | 1 | Yes | Yes | 86000-E8813 | ||
| 1 | COMP-SEAT RH RED | 86000-E8801 | 7112 | 1 | |||||
| 1 | COMP-SEAT RH RED | 86000-N3323 | 1 | Yes | Yes | 86000-E8815 | |||
| 1 | COMP-SEAT RH RED | 86000-E8815 | 7201 | 1 | Yes | Yes | 86000-E8801 | ||
| 1 | COMP-SEAT RH WHITE | 86000-E8800 | 7112 | 1 | |||||
| 2 | ASSY-SLIDE WITH LEVE | 87500-E4101 | 1 | ||||||
| 3 | ASSY-SLIDE LESS LEVE | 86550-E4100 | 1 | ||||||
| 3 | ASSY-SLIDE LESS LEVE | 86550-N3400 | 1 | Yes | Yes | 86550-E4100 | |||
| 4 | NUT-HEX | 08911-10810 | 4 | ||||||
| 5 | WASHER-SPRING | 08915-13810 | 4 | ||||||
| 6 | ASSY-ADJUSTER SEAT B | 86400-E4100 | 1 | ||||||
| 6 | ASSY-ADJUSTER SEAT B | 86400-N4510 | 1 | Yes | Yes | 86400-E4100 | |||
| 7 | SCREW-MACHINE FIX AD | 08313-82520 | 2 | ||||||
| 8 | WASHER-SPRING FIX AD | 08915-13820 | SCREW-MACHINE FIX ADJUSTER | 02 | 005 | 9 | |||
| 9 | WASHER-TOOTH LOCK FI | 08330-82520 | 2 | ||||||
| 10 | WASHER TOOTH LOCK FI | 08916-43820 | 2 | ||||||
| 11 | ASSY-BRACKET HINGE S | 86450-E4100 | 1 | ||||||
| 12 | SCREW-MACHINE FIX BR | 08313-82520 | 2 | ||||||
| 13 | WASHER-SPRING FIX BR | 08915-13820 | 2 | ||||||
| 14 | SCREW-MACHINE FIX BR | 08330-82520 | 2 | ||||||
| 15 | WASHER-TOOTH LOCK FI | 08916-43820 | 2 | ||||||
| 16 | ASSY-SEAT CUSHION BL | 86300-E4102 | 2 | ||||||
| 16 | ASSY-SEAT CUSHION BL | 86300-E4601 | 2 | ||||||
| 16 | ASSY-SEAT CUSHION BL | 86300-E8210 | 7112 | 2 | Yes | Yes | 86300-E4102 | ||
| 16 | ASSY-SEAT CUSHION BL | 86300-E8212 | 2 | Yes | Yes | 86300-E4601 | |||
| 16 | ASSY-SEAT CUSHION BR | 86300-E4103 | 2 | ||||||
| 16 | ASSY-SEAT CUSHION BR | 86300-E8211 | 7112 | 2 | Yes | Yes | 86300-E4103 | ||
| 16 | ASSY-SEAT CUSHION RE | 86300-E8801 | 7112 | 2 | |||||
| 16 | ASSY-SEAT CUSHION WH | 86300-E8800 | 7112 | 2 | |||||
| 17 | TRIM-CUSHION BLACK | 86320-E4100 | 2 | ||||||
| 17 | TRIM-CUSHION BLACK | 86320-E8210 | 2 | Yes | Yes | 86320-E4100 | |||
| 18 | TRIM-CUSHION BROWN | 86320-E4101 | 2 | ||||||
| 18 | TRIM-CUSHION BROWN | 86320-E8211 | 2 | Yes | Yes | 86320-E4101 | |||
| 19 | COVER-SEAT RED_OOP | 86320-E8801 | 2 | ||||||
| 19 | TRIM-CUSHION BLUE | 86320-E4600 | 2 | ||||||
| 19 | TRIM-CUSHION BLUE | 86320-E8212 | 2 | Yes | Yes | 86320-E4600 | |||
| 19 | TRIM-CUSHION WHITE | 86320-E8800 | 2 | ||||||
| 20 | ASSY-BACK WHITE | 86600-E8822 | 2 | ||||||
| 20 | ASSY-SEAT BACK BLACK | 86600-E4102 | 2 | ||||||
| 20 | ASSY-SEAT BACK BLACK | 86600-E4104 | 2 | ||||||
| 20 | ASSY-SEAT BACK BLACK | 86600-E8210 | 2 | Yes | Yes | 86600-E4104 | |||
| 20 | ASSY-SEAT BACK BLUE | 86600-E4601 | 2 | ||||||
| 20 | ASSY-SEAT BACK BLUE | 86600-E4602 | 2 | ||||||
| 20 | ASSY-SEAT BACK BLUE | 86600-E8212 | 2 | Yes | Yes | 86600-E4602 | |||
| 20 | ASSY-SEAT BACK BROWN | 86600-E4103 | 2 | ||||||
| 20 | ASSY-SEAT BACK BROWN | 86600-E4105 | 2 | ||||||
| 20 | ASSY-SEAT BACK BROWN | 86600-E8211 | 2 | Yes | Yes | 86600-E4105 | |||
| 20 | ASSY-SEAT BACK RED | 86600-E8823 | 2 | ||||||
| 21 | TRIM-BACK BLACK | 86620-E4100 | 2 | ||||||
| 21 | TRIM-BACK BLACK | 86620-E8210 | 2 | Yes | Yes | 86620-E4100 | |||
| 22 | TRIM-BACK BROWN | 86620-E4101 | 2 | ||||||
| 22 | TRIM-BACK BROWN | 86620-E8211 | 2 | Yes | Yes | 86620-E4101 | |||
| 23 | TRIM-BACK BLUE | 86620-E4600 | 2 | ||||||
| 23 | TRIM-BACK BLUE | 86620-E8212 | 2 | Yes | Yes | 86620-E4600 | |||
| 23 | TRIM-BACK RED | 86620-E8801 | 1 | ||||||
| 23 | TRIM-BACK WHITE | 86620-E8800 | 1 | ||||||
| 24 | COMP-SEAT LH BLACK | 87000-E4102 | 1 | ||||||
| 24 | COMP-SEAT LH BLACK | 87000-E8310 | 7112 | 1 | Yes | Yes | 87000-E8200 | ||
| 24 | COMP-SEAT LH BLUE | 87000-E4604 | 1 | ||||||
| 24 | COMP-SEAT LH BLUE | 87000-E8202 | 1 | Yes | Yes | 87000-E4604 | |||
| 24 | COMP-SEAT LH BLUE | 87000-E8312 | 1 | Yes | Yes | 87000-E8202 | |||
| 24 | COMP-SEAT LH BROWN | 87000-E4103 | 1 | ||||||
| 24 | COMP-SEAT LH BROWN | 87000-E8201 | 1 | Yes | Yes | 87000-E4103 | |||
| 24 | COMP-SEAT LH BROWN | 87000-E8311 | 7112 | 1 | Yes | Yes | 87000-E8201 | ||
| 24 | COMP-SEAT LH RED | 87000-E8801 | 7112 | 1 | |||||
| 24 | COMP-SEAT LH WHITE | 87000-E8800 | 7112 | 1 | |||||
| 24 | COMP-SET LH BLACK | 87000-E8200 | 1 | Yes | Yes | 87000-E4102 | |||
| 25 | ASSY-SLIDE WITH LEVE | 87500-E4100 | 1 | ||||||
| 25 | ASSY-SLIDE WITH LEVE | 87500-N3400 | 7201 | 1 | Yes | Yes | 87500-E4100 | ||
| 26 | ASSY-SLIDE LESS LEVE | 86550-E4100 | 1 | ||||||
| 26 | ASSY-SLIDE LESS LEVE | 86550-N3400 | 1 | Yes | Yes | 86550-E4100 | |||
| 27 | NUT-HEX FIX SLIDE TO | 08911-10810 | 4 | ||||||
| 28 | WASHER-SPRING FIX SL | 08915-13810 | 4 | ||||||
| 29 | SPACER-SEAT | 86511-E4100 | 8 | ||||||
| 30 | SPACER-SEAT | 86510-E4100 | 8 | ||||||
| 31 | SCREW-MACHINE M8 | 08310-85514 | 2 | ||||||
| 32 | WASHER-SPRING | 08915-13810 | 4 | ||||||
| 33 | NUT-HEX | 08911-10810 | 2 | ||||||
| 34 | WASHER-PLAIN | 08915-43810 | 2 | ||||||
| 35 | ASSY-ADJUSTER SEAT B | 87400-E4100 | 1 | ||||||
| 36 | SCREW-MACHINE FIX AD | 08313-82520 | 2 | ||||||
| 37 | WASHER-SPRING FIX AD | 08915-13820 | 2 | ||||||
| 38 | SCREW-MACHINE FIX AD | 08330-82520 | 2 | ||||||
| 39 | WASHER-TOOTH LOCK FI | 08916-43820 | 2 | ||||||
| 40 | ASSY-BRACKET HINGE S | 87450-E4100 | 1 | ||||||
| 41 | SCREW-MACHIEN FIX BR | 08313-82520 | 2 | ||||||
| 42 | WASHER-SPRING FIX BR | 08915-13820 | 2 | ||||||
| 43 | SCREW-MACHINE FIX BR | 08330-82520 | 2 | ||||||
| 44 | WASHER-TOOTH LOCK FI | 08916-43820 | 2 |
