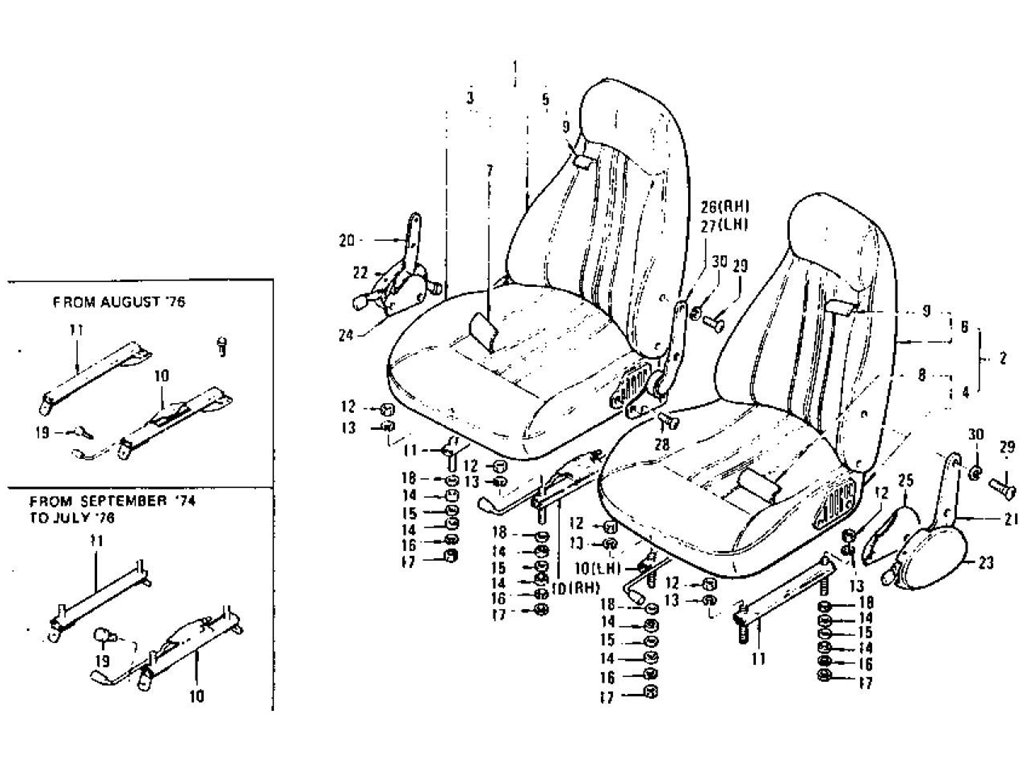

Front Seat & Slide (2+2 Seater) (From Oct.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP SEAT RH BEIGE | 86000-N4102 | 7403 | 1 | |||||
| 1 | COMP SEAT RH BEIGE | 86000-N4107 | 7404 | 7408 | 1 | Yes | Yes | 86000-N4102 | |
| 1 | COMP SEAT RH BEIGE | 86000-N4722 | 7608 | 1 | No | No | 86000-N4321 | ||
| 1 | COMP SEAT RH BEIGE | 86000-N4222 | USA | 7409 | 7502 | 1 | No | No | 86000-N4107 |
| 1 | COMP SEAT RH BEIGE | 86000-N4242 | USA | 7503 | 7505 | 1 | No | No | 86000-N4222 |
| 1 | COMP SEAT RH BEIGE | 86000-N4321 | USA | 7506 | 7607 | 1 | Yes | Yes | 86000-N4242 |
| 1 | COMP SEAT RH BLACK | 86000-N4100 | 7403 | 1 | |||||
| 1 | COMP SEAT RH BLACK | 86000-N4105 | 7404 | 7408 | 1 | Yes | Yes | 86000-N4100 | |
| 1 | COMP SEAT RH BLACK | 86000-N4720 | 7608 | 1 | No | No | 86000-N4320 | ||
| 1 | COMP SEAT RH BLACK | 86000-N4220 | USA | 7409 | 7502 | 1 | No | No | 86000-N4105 |
| 1 | COMP SEAT RH BLACK | 86000-N4240 | USA | 7503 | 7505 | 1 | No | No | 86000-N4220 |
| 1 | COMP SEAT RH BLACK | 86000-N4320 | USA | 7506 | 7607 | 1 | Yes | Yes | 86000-N4240 |
| 1 | COMP SEAT RH BROWN | 86000-N4101 | 7403 | 1 | |||||
| 1 | COMP SEAT RH BROWN | 86000-N4106 | 7404 | 7408 | 1 | Yes | Yes | 86000-N4101 | |
| 1 | COMP SEAT RH DARK BR | 86000-N4103 | 7403 | 1 | |||||
| 1 | COMP SEAT RH DARK BR | 86000-N4108 | 7404 | 7408 | 1 | Yes | Yes | 86000-N4103 | |
| 1 | COMP SEAT RH DARK BR | 86000-N4223 | USA | 7409 | 7502 | 1 | No | No | 86000-N4108 |
| 1 | COMP SEAT RH DARK BR | 86000-N4243 | USA | 7503 | 7505 | 1 | No | No | 86000-N4223 |
| 1 | COMP-SEAT | 86000-N4721 | 7608 | 1 | No | No | 86000-N4322 | ||
| 1 | COMP-SEAT | 86000-N4322 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 86000-N4243 |
| 2 | COMP-SEAT | 87000-N4102 | 7403 | 1 | |||||
| 2 | COMP-SEAT | 87000-N4107 | 7404 | 7408 | 1 | Yes | Yes | 87000-N4102 | |
| 2 | COMP-SEAT | 87000-N4722 | 7608 | 1 | No | No | 87000-N4321 | ||
| 2 | COMP-SEAT | 87000-N4222 | U.S.A | 7409 | 7502 | 1 | No | No | 87000-N4107 |
| 2 | COMP-SEAT | 87000-N4242 | U.S.A. | 7503 | 7505 | 1 | No | No | 87000-N4222 |
| 2 | COMP-SEAT | 87000-N4321 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 87000-N4242 |
| 2 | COMP-SEAT | 87000-N4100 | 7403 | 1 | |||||
| 2 | COMP-SEAT | 87000-N4105 | 7404 | 7408 | 1 | ||||
| 2 | COMP-SEAT | 87000-N4720 | 7608 | 1 | No | No | 87000-N4320 | ||
| 2 | COMP-SEAT | 87000-N4220 | U.S.A | 7409 | 7502 | 1 | No | No | 87000-N4105 |
| 2 | COMP-SEAT | 87000-N4240 | U.S.A | 7503 | 7505 | 1 | No | No | 87000-N4220 |
| 2 | COMP-SEAT | 87000-N4320 | U.S.A | 7506 | 7607 | 1 | Yes | Yes | 87000-N4240 |
| 2 | COMP-SEAT | 87000-N4101 | 7403 | 1 | |||||
| 2 | COMP-SEAT | 87000-N4106 | 7404 | 7408 | 1 | ||||
| 2 | COMP-SEAT | 87000-N4103 | 7403 | 1 | |||||
| 2 | COMP-SEAT | 87000-N4108 | 7404 | 7408 | 1 | Yes | Yes | 87000-N4103 | |
| 2 | COMP-SEAT | 87000-N4721 | 7608 | 1 | No | No | 87000-N4322 | ||
| 2 | COMP-SEAT | 87000-N4223 | U.S.A. | 7409 | 7502 | 1 | No | No | 87000-N4108 |
| 2 | COMP-SEAT | 87000-N4243 | U.S.A. | 7503 | 7505 | 1 | No | No | 87000-N4223 |
| 2 | COMP-SEAT | 87000-N4322 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 87000-N4243 |
| 3 | ASSY-CUSHION | 86300-N3605 | 7408 | 1 | |||||
| 3 | ASSY-CUSHION | 86300-N4200 | U.S.A. | 7409 | 7502 | 1 | Yes | Yes | 86300-N3605 |
| 3 | ASSY-CUSHION | 86300-N3606 | 7408 | 1 | |||||
| 3 | ASSY-CUSHION | 86300-N3607 | 7408 | 1 | |||||
| 3 | ASSY-CUSHION | 86300-N3608 | 7408 | 1 | |||||
| 3 | ASSY-CUSHION | 86300-N4700 | 7608 | 1 | No | No | 86300-N4300 | ||
| 3 | ASSY-CUSHION | 86300-N4701 | 7608 | 1 | No | No | 86300-N4302 | ||
| 3 | ASSY-CUSHION | 86300-N4702 | 7608 | 1 | No | No | 86300-N4301 | ||
| 3 | ASSY-CUSHION | 86300-N4202 | U.S.A. | 7409 | 7502 | 1 | Yes | Yes | 86300-N3607 |
| 3 | ASSY-CUSHION | 86300-N4203 | U.S.A. | 7409 | 7502 | 1 | Yes | Yes | 86300-N3608 |
| 3 | ASSY-CUSHION | 86300-N4500 | U.S.A. | 7503 | 7505 | 1 | No | No | 86300-N4200 |
| 3 | ASSY-CUSHION | 86300-N4502 | U.S.A. | 7503 | 7505 | 1 | No | No | 86300-N4202 |
| 3 | ASSY-CUSHION | 86300-N4503 | U.S.A. | 7503 | 7505 | 1 | No | No | 86300-N4203 |
| 3 | ASSY-CUSHION | 86300-N4300 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 86300-N4500 |
| 3 | ASSY-CUSHION | 86300-N4301 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 86300-N4502 |
| 3 | ASSY-CUSHION | 86300-N4302 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 86300-N4503 |
| 4 | ASSY-CUSHION | 86300-N3605 | 7408 | 1 | |||||
| 4 | ASSY-CUSHION | 86300-N3606 | 7408 | 1 | |||||
| 4 | ASSY-CUSHION | 86300-N3608 | 7408 | 1 | |||||
| 4 | ASSY-CUSHION | 86300-N3607 | 7408 | 1 | |||||
| 4 | ASSY-CUSHION | 87300-N4700 | 7608 | 1 | No | No | 87300-N4300 | ||
| 4 | ASSY-CUSHION | 87300-N4701 | 7608 | 1 | No | No | 87300-N4302 | ||
| 4 | ASSY-CUSHION | 87300-N4702 | 7608 | 1 | No | No | 87300-N4301 | ||
| 4 | ASSY-CUSHION | 87300-N4200 | U.S.A. | 7409 | 7502 | 1 | No | No | 86300-N3605 |
| 4 | ASSY-CUSHION | 87300-N4202 | U.S.A. | 7409 | 7502 | 1 | No | No | 86300-N3607 |
| 4 | ASSY-CUSHION | 87300-N4203 | U.S.A. | 7409 | 7502 | 1 | No | No | 86300-N3608 |
| 4 | ASSY-CUSHION | 87300-N4210 | U.S.A. | 7503 | 7505 | 1 | No | No | 87300-N4200 |
| 4 | ASSY-CUSHION | 87300-N4212 | U.S.A. | 7503 | 7505 | 1 | No | No | 87300-N4202 |
| 4 | ASSY-CUSHION | 87300-N4213 | U.S.A. | 7503 | 7505 | 1 | No | No | 87300-N4203 |
| 4 | ASSY-CUSHION | 87300-N4300 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 87300-N4210 |
| 4 | ASSY-CUSHION | 87300-N4301 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 87300-N4212 |
| 4 | ASSY-CUSHION | 87300-N4302 | U.S.A. | 7506 | 7607 | 1 | Yes | Yes | 87300-N4213 |
| 5 | ASSY-BACK | 86600-N4225 | OP. | 7409 | 7607 | 1 | |||
| 5 | ASSY-BACK | 86600-N4325 | OP. | 7506 | 7607 | 1 | Yes | Yes | 86600-N4225 |
| 5 | ASSY-BACK | 86600-N3525 | OP. | 7608 | 1 | No | No | 86600-N4325 | |
| 5 | ASSY-BACK | 86600-N3526 | OP. | 7608 | 1 | ||||
| 5 | ASSY-BACK | 86600-N4002 | 7408 | 1 | |||||
| 5 | ASSY-BACK | 86600-N4222 | 7409 | 7505 | 1 | Yes | Yes | 86600-N4002 | |
| 5 | ASSY-BACK | 86600-N4321 | 7506 | 7607 | 1 | Yes | Yes | 86600-N4222 | |
| 5 | ASSY-BACK | 86600-N4722 | 7608 | 1 | No | No | 86600-N4321 | ||
| 5 | ASSY-BACK | 86600-N4000 | 7408 | 1 | |||||
| 5 | ASSY-BACK | 86600-N4220 | 7409 | 7505 | 1 | Yes | Yes | 86600-N4000 | |
| 5 | ASSY-BACK | 86600-N4320 | 7506 | 7607 | 1 | Yes | Yes | 86600-N4220 | |
| 5 | ASSY-BACK | 86600-N4720 | 7608 | 1 | No | No | 86600-N4320 | ||
| 5 | ASSY-BACK | 86600-N4001 | 7408 | 1 | |||||
| 5 | ASSY-BACK | 86600-N4003 | 7408 | 1 | |||||
| 5 | ASSY-BACK | 86600-N4223 | 7409 | 7505 | 1 | Yes | Yes | 86600-N4003 | |
| 5 | ASSY-BACK | 86600-N4322 | 7506 | 1 | Yes | Yes | 86600-N4223 | ||
| 5 | ASSY-BACK | 86600-N4721 | 7608 | 1 | No | No | 86600-N4322 | ||
| 6 | ASSY-BACK | 87600-N4225 | OP. | 7409 | 7505 | 1 | |||
| 6 | ASSY-BACK | 87600-N4325 | OP. | 7506 | 7607 | 1 | Yes | Yes | 87600-N4225 |
| 6 | ASSY-BACK | 87600-N3525 | OP. | 7608 | 1 | No | No | 87600-N4325 | |
| 6 | ASSY-BACK | 87600-N3526 | OP. | 7608 | 1 | No | No | 87600-N4326 | |
| 6 | ASSY-BACK | 87600-N4002 | 7408 | 1 | |||||
| 6 | ASSY-BACK | 87600-N4222 | 7409 | 7505 | 1 | Yes | Yes | 87600-N4002 | |
| 6 | ASSY-BACK | 87600-N4321 | 7506 | 7607 | 1 | Yes | Yes | 87600-N4222 | |
| 6 | ASSY-BACK | 87600-N4722 | 7608 | 1 | No | No | 87600-N4321 | ||
| 6 | ASSY-BACK | 87600-N4000 | 7408 | 1 | |||||
| 6 | ASSY-BACK | 87600-N4220 | 7409 | 7505 | 1 | Yes | Yes | 87600-N4000 | |
| 6 | ASSY-BACK | 87600-N4320 | 7506 | 7607 | 1 | Yes | Yes | 87600-N4220 | |
| 6 | ASSY-BACK | 87600-N4720 | 7608 | 1 | No | No | 87600-N4320 | ||
| 6 | ASSY-BACK | 87600-N4001 | 7408 | 1 | |||||
| 6 | ASSY-BACK | 87600-N4003 | 7408 | 1 | |||||
| 6 | ASSY-BACK | 87600-N4223 | 7409 | 7505 | 1 | Yes | Yes | 87600-N4003 | |
| 6 | ASSY-BACK | 87600-N4322 | 7506 | 7607 | 1 | Yes | Yes | 87600-N4223 | |
| 6 | ASSY-BACK | 87600-N4721 | 7608 | 1 | No | No | 87600-N4322 | ||
| 6 | ASSY-TRIM | 86320-N4702 | 7608 | 7408 | 1 | No | No | 86320-N4301 | |
| 7 | ASSY-TIRM | 86320-N3402 | 7505 | 1 | |||||
| 7 | ASSY-TIRM | 86320-N4301 | 7506 | 7607 | 1 | Yes | Yes | 86320-N3402 | |
| 7 | ASSY-TIRM | 86320-N4702 | 7608 | 1 | No | No | 86320-N4301 | ||
| 7 | ASSY-TRIM | 86320-N3400 | 7505 | 1 | |||||
| 7 | ASSY-TRIM | 86320-N3401 | 7408 | 1 | |||||
| 7 | ASSY-TRIM | 86320-N3403 | 7505 | 1 | |||||
| 7 | ASSY-TRIM | 86320-N4300 | 7506 | 7607 | 1 | Yes | Yes | 86320-N3400 | |
| 7 | ASSY-TRIM | 86320-N4302 | 7506 | 7607 | 1 | Yes | Yes | 86320-N3403 | |
| 7 | ASSY-TRIM | 86320-N4700 | 7608 | 1 | No | No | 86320-N4300 | ||
| 7 | ASSY-TRIM | 86320-N4701 | 7608 | 1 | No | No | 86320-N4302 | ||
| 7 | ASSY-TRIM | 86320-N4215 | OP. | 7409 | 7505 | 1 | |||
| 7 | ASSY-TRIM | 86320-N4305 | OP. | 7506 | 7607 | 1 | Yes | Yes | 86320-N4215 |
| 7 | ASSY-TRIM | 86320-N3505 | OP. | 7608 | 1 | No | No | 86320-N4305 | |
| 7 | ASSY-TRIM | 86320-N3506 | OP. | 7608 | 1 | ||||
| 8 | ASSY-TRIM | 86320-N3400 | 7408 | 1 | |||||
| 8 | ASSY-TRIM | 86320-N3401 | 7408 | 1 | |||||
| 8 | ASSY-TRIM | 86320-N3402 | 7408 | 1 | |||||
| 8 | ASSY-TRIM | 86320-N3403 | 7408 | 1 | |||||
| 8 | ASSY-TRIM | 87320-N4210 | 7409 | 7505 | 1 | No | No | 86320-N3400 | |
| 8 | ASSY-TRIM | 87320-N4212 | 7409 | 7505 | 1 | No | No | 86320-N3402 | |
| 8 | ASSY-TRIM | 87320-N4213 | 7409 | 7505 | 1 | No | No | 86320-N3403 | |
| 8 | ASSY-TRIM | 87320-N4300 | 7506 | 7607 | 1 | Yes | Yes | 87320-N4210 | |
| 8 | ASSY-TRIM | 87320-N4301 | 7506 | 7607 | 1 | Yes | Yes | 87320-N4212 | |
| 8 | ASSY-TRIM | 87320-N4302 | 7506 | 7607 | 1 | Yes | Yes | 87320-N4213 | |
| 8 | ASSY-TRIM | 87320-N4700 | 7608 | 1 | No | No | 87320-N4300 | ||
| 8 | ASSY-TRIM | 87320-N4701 | 7608 | 1 | No | No | 87320-N4302 | ||
| 8 | ASSY-TRIM | 87320-N4702 | 7608 | 1 | No | No | 87320-N4301 | ||
| 8 | ASSY-TRIM | 87320-N4215 | OP. | 7409 | 7505 | 1 | |||
| 8 | ASSY-TRIM | 87320-N4305 | OP. | 7506 | 7607 | 1 | Yes | Yes | 87320-N4215 |
| 8 | ASSY-TRIM | 87320-N3505 | OP. | 7608 | 1 | No | No | 87320-N4305 | |
| 8 | ASSY-TRIM | 87320-N3506 | OP. | 7608 | 1 | ||||
| 9 | ASSY-TRIM | 86620-N3400 | 7505 | 2 | |||||
| 9 | ASSY-TRIM | 86620-N3401 | 7408 | 2 | |||||
| 9 | ASSY-TRIM | 86620-N3402 | 7505 | 2 | |||||
| 9 | ASSY-TRIM | 86620-N3403 | 7505 | 2 | |||||
| 9 | ASSY-TRIM | 86620-N4300 | 7506 | 7607 | 2 | Yes | Yes | 86620-N3400 | |
| 9 | ASSY-TRIM | 86620-N4301 | 7506 | 7607 | 2 | Yes | Yes | 86620-N3402 | |
| 9 | ASSY-TRIM | 86620-N4302 | 7506 | 7607 | 2 | Yes | Yes | 86620-N3403 | |
| 9 | ASSY-TRIM | 86620-N4700 | 7608 | 2 | No | No | 86620-N4300 | ||
| 9 | ASSY-TRIM | 86620-N4701 | 7608 | 2 | No | No | 86620-N4302 | ||
| 9 | ASSY-TRIM | 86620-N4702 | 7608 | 2 | No | No | 86620-N4301 | ||
| 9 | ASSY-TRIM | 86620-N4700 | 7708 | 1 | |||||
| 9 | ASSY-TRIM | 86620-N4701 | 7708 | 1 | |||||
| 9 | ASSY-TRIM | 86620-N4702 | 7708 | 1 | |||||
| 9 | ASSY-TRIM | 87620-N4700 | 7708 | 1 | |||||
| 9 | ASSY-TRIM | 87620-N4701 | 7708 | 1 | |||||
| 9 | ASSY-TRIM | 87620-N4702 | 7708 | 1 | |||||
| 9 | ASSY-TRIM | 86620-N4215 | OP. | 7409 | 7505 | 2 | |||
| 9 | ASSY-TRIM | 86620-N4305 | OP. | 7506 | 7607 | 2 | Yes | Yes | 86620-N4215 |
| 9 | ASSY-TRIM | 86620-N3505 | OP. | 7608 | 2 | No | No | 86620-N4305 | |
| 9 | ASSY-TRIM | 86620-N3506 | OP. | 7608 | 2 | ||||
| 9 | ASSY-TRIM | 86620-N3505 | OP. | 7708 | 1 | ||||
| 9 | ASSY-TRIM | 86620-N3506 | OP. | 7708 | 1 | ||||
| 9 | ASSY-TRIM | 87620-N3506 | OP. | 7708 | 1 | ||||
| 9 | ASSY-TRIM | 87620-N3505 | OP. | 7808 | 1 | ||||
| 10 | ASSY-SLIDE WITH LEVE | 87500-E4100 | 7311 | 1 | |||||
| 10 | ASSY-SLIDE WITH LEVE | 87500-N3400 | 7312 | 7408 | 1 | Yes | Yes | 87500-E4100 | |
| 10 | ASSY-SLIDE WITH LEVE | 87500-N4500 | 7409 | 7607 | 1 | No | No | 87500-N3400 | |
| 10 | ASSY-SLIDE WITH LEVE | 87500-N4700 | 7608 | 1 | No | No | 87500-N4500 | ||
| 10 | ASSY-SLIDE | 86500-E4100 | 7311 | 1 | |||||
| 10 | ASSY-SLIDE | 86500-N3400 | 7312 | 7408 | 1 | Yes | Yes | 86500-E4100 | |
| 10 | ASSY-SLIDE | 86500-N4500 | 7409 | 7607 | 1 | No | No | 86500-N3400 | |
| 10 | ASSY-SLIDE | 86500-N4700 | 7608 | 1 | No | No | 86500-N4500 | ||
| 11 | ASSY-SLIDE | 86550-N3601 | 7311 | 2 | |||||
| 11 | ASSY-SLIDE | 86550-N3602 | 7312 | 7408 | 2 | Yes | Yes | 86550-N3601 | |
| 11 | ASSY-SLIDE | 86550-N4200 | 7409 | 7607 | 2 | No | No | 86550-N3602 | |
| 11 | ASSY-SLIDE | 86550-N4700 | 7608 | 2 | No | No | 86550-N4200 | ||
| 12 | NUT-HEX FIX SLIDE TO | 08911-10810 | 7607 | 8 | |||||
| 12 | SCREW MACHINE | 08310-82014 | 7608 | 8 | |||||
| 13 | WASHER-LOCK | 08915-13810 | 7607 | 8 | |||||
| 14 | SPACER-SEAT | 86511-E4100 | 7408 | 16 | |||||
| 15 | SPACER-SEAT | 86510-E4100 | 7408 | 8 | |||||
| 16 | WASHER-LOCK | 08915-13810 | 7408 | 8 | |||||
| 17 | NUT-HEX | 08911-10810 | 7408 | 8 | |||||
| 18 | WASHER-PLAIN | 08915-43810 | 7408 | 8 | |||||
| 19 | BOLT-HEX | 08116-82037 | 7409 | 7607 | 8 | ||||
| 19 | BOLT-HEX | 08116-82547 | 7608 | 8 | |||||
| 20 | ASSY-DEVICE | 86470-N4000 | 7602 | 1 | |||||
| 20 | ASSY-DEVICE | 86470-N4220 | 7603 | 7607 | 1 | No | No | 86470-N4000 | |
| 20 | ASSY-DEVICE | 86470-N4720 | 7608 | 1 | No | No | 86470-N4220 | ||
| 21 | ASSY-DEVICE | 87470-E8800 | 7602 | 1 | |||||
| 21 | ASSY-DEVICE | 87470-N4200 | 7603 | 7607 | 1 | No | No | 87470-E8800 | |
| 21 | ASSY-DEVICE | 87470-N4700 | 7608 | 1 | No | No | 87470-N4200 | ||
| 22 | COVER-DEVICE | 86475-N3700 | 7602 | 1 | |||||
| 22 | COVER-DEVICE | 86475-N4220 | 7603 | 7607 | 1 | No | No | 86475-N3700 | |
| 22 | COVER-DEVICE | 86475-N4720 | 7608 | 1 | No | No | 86475-N4220 | ||
| 23 | COVER-DEVICE | 87475-N3400 | 7602 | 1 | |||||
| 23 | COVER-DEVICE | 87475-N4200 | 7603 | 7607 | 1 | No | No | 87475-N3400 | |
| 23 | COVER-DEVICE | 87475-N4700 | 7608 | 1 | No | No | 87475-N4200 | ||
| 24 | COVER-DEVICE INNER R | 86478-N3400 | 7607 | 1 | |||||
| 24 | COVER-DEVICE INNER R | H6478-N3400 | 7607 | 1 | Yes | Yes | 86478-N3400 | ||
| 24 | COVER-DEVICE INNER R | 86478-N4700 | 7608 | 1 | No | No | 86478-N3400 | ||
| 25 | COVER-DEVICE INNER L | 87478-N4700 | 7608 | 1 | No | No | 87478-N3400 | ||
| 25 | COVER-DEVICE | 87478-N3400 | 7607 | 1 | |||||
| 25 | COVER-DEVICE | H7478-N3400 | 7607 | 1 | Yes | Yes | 87478-N3400 | ||
| 26 | ASSY-SPRING | 86480-E8210 | 7410 | 1 | |||||
| 26 | ASSY-SPRING | 86480-N4500 | 7411 | 7607 | 1 | Yes | Yes | 87480-E8210 | |
| 26 | ASSY-SPRING | 86480-N4700 | 7608 | 1 | No | No | 86480-N4500 | ||
| 27 | ASSY-SPRING | 87480-E8210 | 7410 | 1 | |||||
| 27 | ASSY-SPRING | 87480-N4500 | 7411 | 7607 | 1 | Yes | Yes | 87480-E8210 | |
| 27 | ASSY-SPRING | 87480-N4700 | 7608 | 1 | No | No | 87480-N4500 | ||
| 28 | SCREW-SPECIAL | 86902-U0201 | 8 | ||||||
| 29 | SCREW-SPECIAL | 86902-E8800 | 8 | ||||||
| 30 | WASHER-LOCK | 08916-43842 | 8 |
