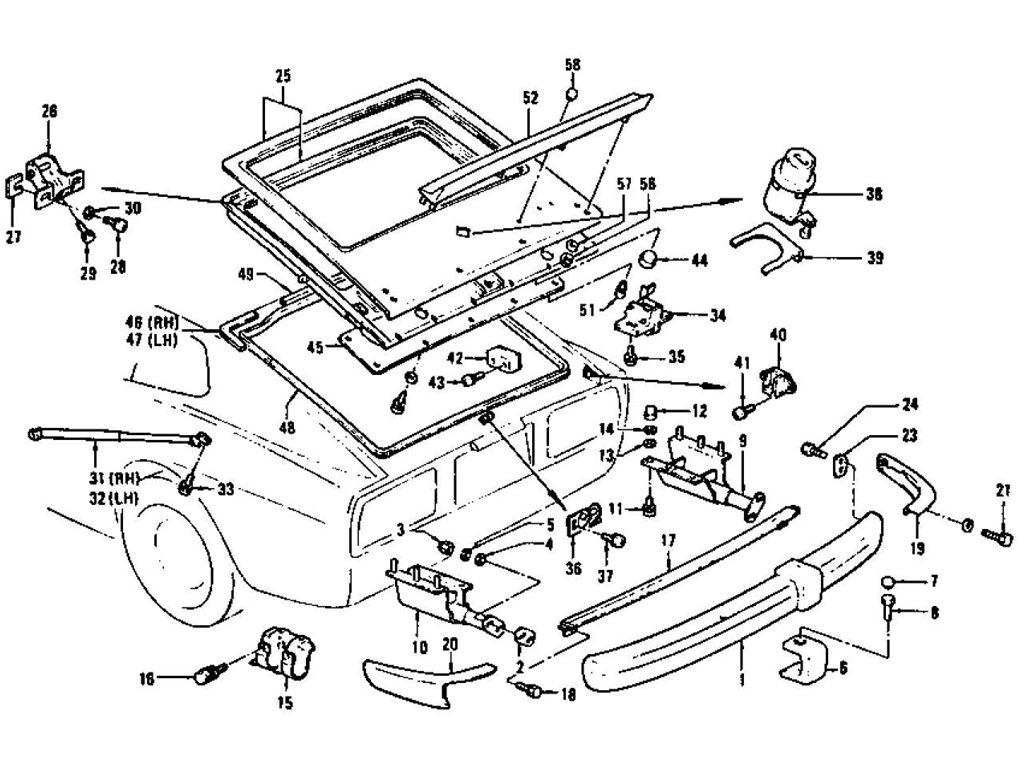

Tail Gate Panel, Trim, Lock & Rear Bumper (2+2 Seater) (From Sep.-'74 To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-BUMPER | 85301-N4200 | 7409 | 7507 | 1 | ||||
| 1 | ASSY-BUMPER | 85301-N4201 | 7508 | 1 | Yes | Yes | 85301-N4200 | ||
| 2 | SHIM-REAR BUMPER | 85388-N4200 | 7409 | 1 | |||||
| 3 | NUT-HEX | 08912-84010 | 7409 | 4 | |||||
| 4 | WASHER-PLAIN | 08915-54010 | 7409 | 7507 | 4 | ||||
| 4 | WASHER-PLAIN | 54473-N3400 | 7508 | 4 | Yes | Yes | 08915-54010 | ||
| 5 | WASHER-LOCK | 08915-24010 | 7409 | 4 | |||||
| 6 | ASSY-OVERRIDER REAR | 85340-N4200 | 7409 | 2 | |||||
| 7 | PLUG-OVERRIDER | 85345-N4200 | 7409 | 2 | |||||
| 8 | BOLT-HEX | 08120-81633 | 7409 | 4 | |||||
| 9 | ASSY-ABSORBER REAR B | 85210-N4220 | 7409 | 1 | |||||
| 10 | ASSY-ABSORBER REAR B | 85211-N4220 | 7409 | 1 | |||||
| 11 | BOLT-HEX | 01121-00053 | 7409 | 6 | |||||
| 12 | NUT-CAP | 13274-78200 | 7409 | 6 | |||||
| 13 | WASHER-PLAIN | 08915-53810 | 7409 | 6 | |||||
| 14 | WASHER-SPRING | 08915-23810 | 7409 | 6 | |||||
| 15 | HEATSHIELD-REAR BUMP | 85090-N3600 | 7409 | 1 | |||||
| 16 | SCREW | 08160-61610 | 7409 | 3 | |||||
| 17 | ASSY-SIGHT SHIELD RE | 85360-N4200 | 7409 | 1 | |||||
| 18 | BOLT-HEX | 08116-83047 | 7409 | 3 | |||||
| 19 | ASSY-BUMPER REAR SID | 85350-N4220 | 7409 | 1 | |||||
| 20 | ASSY-BUMPER REAR SID | 85351-N4220 | 7409 | 1 | |||||
| 21 | BOLT HEX | 08116-84037 | 7409 | 2 | |||||
| 22 | BOLT HEX | 08116-83047 | 7409 | 2 | |||||
| 23 | SHIELD DUST REAR BUM | 85396-N4200 | 7409 | 2 | |||||
| 24 | BOLT HEX | 08363-61648 | 7409 | 4 | |||||
| 25 | ASSY PANEL TAIL GATE | 90101-N3700 | 7507 | 1 | |||||
| 25 | ASSY PANEL TAIL GATE | 90101-N4000 | 7508 | 1 | Yes | Yes | 90101-N3700 | ||
| 26 | ASSY TAIL GATE HINGE | 90400-N3700 | 2 | ||||||
| 27 | SHIM-ADJUSTING TAIL | 90407-E4100 | 4 | ||||||
| 27 | SHIM-ADJUSTING TAIL | 90407-N3700 | 4 | ||||||
| 28 | SCREW MCHINE M8 | 08110-82525 | 4 | ||||||
| 29 | SCREW MACHINE M8 | 08320-81812 | 4 | ||||||
| 30 | WASHER TOOTH M8 | 08916-43810 | 4 | ||||||
| 31 | SET STAY TAIL GATE R | 90420-N3701 | 7408 | 1 | |||||
| 31 | SET STAY TAIL GATE R | 90420-N3702 | 7409 | 1 | Yes | Yes | 90420-N3701 | ||
| 32 | SET STAY TAIL GATE L | 90421-N3701 | 7408 | 1 | |||||
| 32 | SET STAY TAIL GATE L | 90421-N3702 | 7409 | 1 | Yes | Yes | 90421-N3701 | ||
| 33 | SCREW MACHINE | 08363-61626 | 6 | ||||||
| 34 | ASSY TAIL GATE LOCK | 90502-E4101 | 1 | ||||||
| 35 | SCREW MACHINE | 08363-61626 | 2 | ||||||
| 36 | ASSY STRICKER TAIL G | 90805-E4100 | 1 | ||||||
| 37 | SCREW MACHINE | 08363-61626 | 2 | ||||||
| 38 | CYLINDER LOCK TAIL G | 90560-E8201 | 7508 | 1 | |||||
| 38 | CYLINDER LOCK TAIL G | 90560-N4420 | 7509 | 1 | Yes | Yes | 90560-E8201 | ||
| 39 | CLIP CYLINDER | 96809-19700 | 1 | ||||||
| 40 | ASSY DOWN STOPPER TA | 90522-E4100 | 2 | ||||||
| 40 | ASSY DOWN STOPPER TA | 90522-E4100 | 2 | Yes | Yes | 90522-E4100 | |||
| 41 | SCREW MACHINE | 08363-61626 | 4 | ||||||
| 42 | BUMPER RUBBER TAIL G | 90526-E4100 | 2 | ||||||
| 43 | SCREW MACHINE | 08313-51226 | 4 | ||||||
| 44 | GROMMET HEATER | 27035-21000 | 2 | ||||||
| 45 | ASSY TRIM TAIL GATE | 90902-N4100 | 1 | ||||||
| 45 | ASSY TRIM TAIL GATE | 90902-N4103 | 1 | ||||||
| 45 | ASSY TRIM TAIL GATE | 90902-N4104 | 1 | ||||||
| 46 | WEATHERSTRIP TAIL GA | 76913-N4520 | 7506 | 1 | |||||
| 47 | WEATHERSTRIP TAIL GA | 76914-N4520 | 7506 | 1 | |||||
| 48 | WEATHER STRIP GATE I | 76912-N3700 | 7505 | 1 | |||||
| 48 | WEATHER STRIP TAIL G | 76912-N4521 | 7506 | 1 | Yes | Yes | 26912-N3700 | ||
| 49 | WELT TAIL GATE CENTE | 76921-N4420 | 7508 | 1 | Yes | Yes | 76921-N4520 | ||
| 49 | WELT TAIL GATE CENTE | 76921-N4520 | 7508 | 1 | |||||
| 50 | SEALING SCREEN TAIL | 90905-N4100 | 7508 | 1 | |||||
| 51 | CLIP TRIM | 01553-00081 | 10 | ||||||
| 52 | ASSY AIR SPOILAR | 98100-N3105 | OP | 1 | Yes | Yes | 98100-N3525 | ||
| 52 | ASSY AIR SPOILAR | 98100-N3525 | OP | 1 | |||||
| 53 | WASHER PLAIN | 08915-53610 | OP | 8 | |||||
| 54 | SEALING AIR SPOILER | 98115-E7200 | OP | 2 | |||||
| 55 | CUSHION AIR SPOILER | 98116-E7200 | OP | 2 | |||||
| 56 | NUT FLANGE | 01225-00021 | OP | 6 | |||||
| 57 | WASHER | 08915-53610 | OP | 6 | |||||
| 58 | PLUG | 77700-89922 | OP | 6 | |||||
| 59 | NUT FLANGE | 01225-00021 | OP | 6 | |||||
| 60 | PLUG NYLON | 77700-89922 | OP | 5 |
