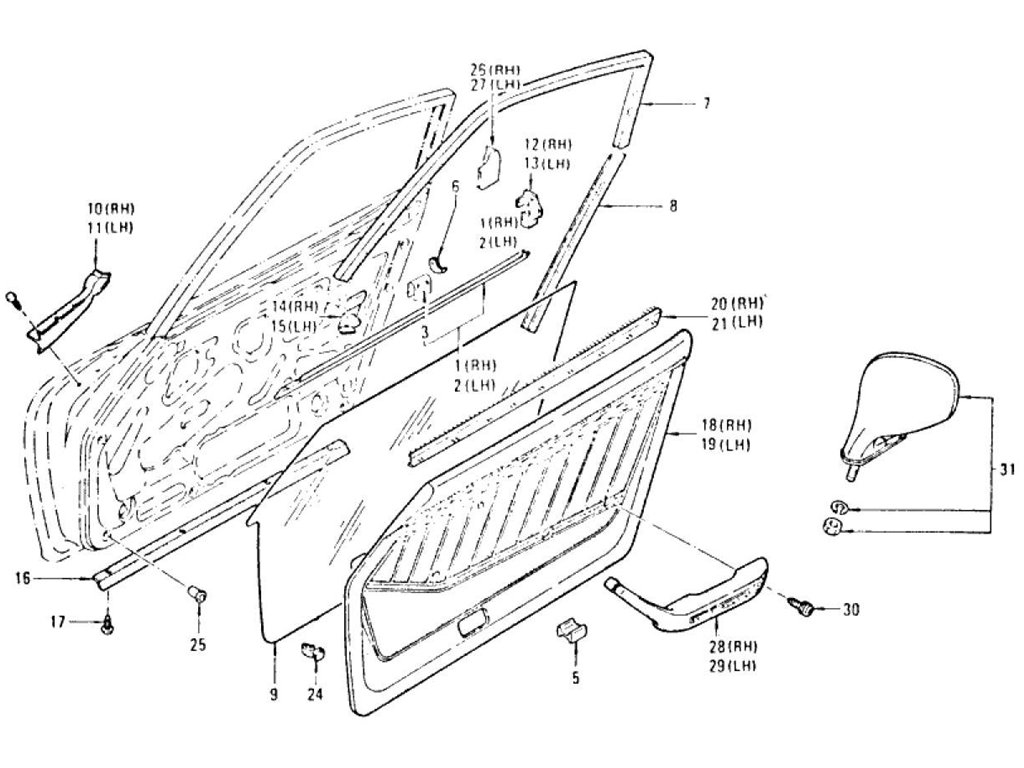

Door Moulding Finisher, Arm Rest & Door Mirror (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-MOULDING DOOR O | 80820-N3000 | 7511 | 1 | |||||
| 1 | ASSY-MOULDING DOOR O | 80820-N4400 | 7512 | 7712 | 1 | Yes | Yes | 80820-N3000 | |
| 1 | ASSY-MOULDING DOOR O | 80820-N4401 | 7801 | 1 | Yes | Yes | 80820-N4400 | ||
| 2 | ASSY-MOULDING DOOR O | 80821-N3000 | 7511 | 1 | |||||
| 2 | ASSY-MOULDING DOOR O | 80821-N4400 | 7512 | 7712 | 1 | Yes | Yes | 80821-N3000 | |
| 2 | ASSY-MOULDING DOOR O | 80821-N4401 | 7801 | 1 | Yes | Yes | 80821-N4400 | ||
| 3 | CLIP MOULDING DOOR O | 80835-N3700 | 5 | ||||||
| 4 | ASSY-BRACKET | 80117-N3400 | 1 | ||||||
| 4 | ASSY-BRACKET | 80116-N3400 | 1 | ||||||
| 5 | CUSHION-WINDOW GLASS | 80317-25900 | 2 | ||||||
| 5 | CUSHION-WINDOW GLASS | 80317-A3200 | 2 | Yes | Yes | 80317-25900 | |||
| 6 | CLIP-TRIM BOARD | 80919-22500 | 2 | ||||||
| 7 | FELT-GLASS RUN DOOR | 80335-E4102 | 7506 | 2 | |||||
| 7 | FELT-GLASS RUN DOOR | 80335-N4500 | 7507 | 2 | No | No | 80335-E4102 | ||
| 8 | RUBBER-GLASS RUN DOO | 80336-E8700 | 7607 | 2 | |||||
| 8 | RUBBER-GLASS RUN DOO | 80336-N4600 | 7608 | 2 | No | No | 80336-E8700 | ||
| 9 | SEALING-SCREEN DOOR | 80880-E4100 | 2 | ||||||
| 10 | RUBBER-SEALING DOOR | 80931-N3400 | 7506 | 1 | |||||
| 10 | RUBBER-SEALING DOOR | 80931-N4500 | 7506 | 1 | 80931-N3400 | ||||
| 10 | RUBBER-SEALING DOOR | 80931-N4501 | 7507 | 1 | No | No | 80931-N3400 | ||
| 11 | RUBBER-SEALING DOOR | 80932-N3400 | 7506 | 1 | |||||
| 11 | RUBBER-SEALING DOOR | 80932-N4500 | 7506 | 1 | 80932-N3400 | ||||
| 11 | RUBBER-SEALING DOOR | 80932-N4501 | 7507 | 1 | No | No | 80932-N3400 | ||
| 12 | RUBBER-SEALING DOOR | 80933-N3400 | 1 | ||||||
| 13 | RUBBER-SEALING DOOR | 80934-N3400 | 1 | ||||||
| 14 | ASSY-BUMBER | 80840-E4101 | 2 | ||||||
| 15 | ASSY-BUMPER | 80841-E4101 | 2 | ||||||
| 16 | RUBBER-SEALING BODY | 80935-E4101 | 2 | ||||||
| 17 | CLIP | 66919-H1001 | 14 | ||||||
| 18 | ASSY-FINISH DOOR RH | 80900-N3600 | 7607 | 1 | |||||
| 18 | ASSY-FINISH DOOR RH | 80900-N3601 | 7408 | 1 | |||||
| 18 | ASSY-FINISH DOOR RH | 80900-N3603 | 7607 | 1 | |||||
| 18 | ASSY-FINISH DOOR RH | 80900-N3604 | 7607 | 1 | |||||
| 18 | ASSY-FINISH DOOR RH | 80900-N4206 | 7608 | 1 | No | No | 80900-N3600 | ||
| 18 | ASSY-FINISH DOOR RH | 80900-N4207 | 7608 | 7707 | 1 | No | No | 80900-N3604 | |
| 18 | ASSY-FINISH DOOR RH | 80900-N4208 | 7608 | 7707 | 1 | No | No | 80900-N3603 | |
| 18 | ASSY-FINISH DOOR RH | 80900-N7601 | 7708 | 1 | Yes | Yes | 80900-N4207 | ||
| 18 | ASSY-FINISH DOOR RH | 80900-N7602 | 7708 | 1 | Yes | Yes | 80900-N4208 | ||
| 19 | ASSY-FINISH DOOR DOO | 80901-N3601 | 7408 | 1 | |||||
| 19 | ASSY-FINISH DOOR LH | 80901-N3600 | 7607 | 1 | |||||
| 19 | ASSY-FINISH DOOR LH | 80901-N3603 | 7607 | 1 | |||||
| 19 | ASSY-FINISH DOOR LH | 80901-N3604 | 7607 | 1 | |||||
| 19 | ASSY-FINISH DOOR LH | 80901-N4207 | 7608 | 7707 | 1 | No | No | 80901-N3604 | |
| 19 | ASSY-FINISH DOOR LH | 80901-N4208 | 7608 | 7707 | 1 | No | No | 80901-N3603 | |
| 19 | ASSY-FINISH DOOR LH | 80901-N7601 | 7708 | 1 | Yes | Yes | 80901-N4207 | ||
| 19 | ASSY-FINISH DOOR LH | 80901-N7602 | 7708 | 1 | Yes | Yes | 80901-N4208 | ||
| 19 | ASSY-FINISH DOOR RH | 80901-N4206 | 7608 | 1 | No | No | 80901-N3600 | ||
| 20 | ASSY-WEATHERSTRIP DO | 80845-E4100 | 7506 | 1 | |||||
| 21 | ASSY-WEATEHRSTRIP DO | 80846-E4100 | 1 | ||||||
| 22 | GORMMET-LOCK KNOB BL | 80970-N4400 | 7511 | 2 | Yes | Yes | 80970-78500 | ||
| 22 | GROMMET-LOCK KNOB | 80970-78500 | 7510 | 2 | |||||
| 22 | GROMMET-LOCK KNOB BR | 80970-N7601 | 7708 | 2 | |||||
| 22 | GROMMET-LOCK KNOB GE | 80970-N7602 | 7708 | 2 | |||||
| 23 | SPACER | 80910-N3400 | 2 | ||||||
| 24 | CLIP-TRIM BOARD | 80919-22500 | 16 | ||||||
| 25 | CAP-DOOR FINISH | 80929-32200 | 16 | ||||||
| 26 | PROTECTOR-SEALING DO | 80933-N4500 | 7511 | 1 | |||||
| 27 | PROTECTOR-SEALING DO | 80934-N4500 | 7511 | 1 | |||||
| 28 | ASSY-ARM REST DOOR R | 80940-N3400 | 1 | ||||||
| 28 | ASSY-ARM REST DOOR R | 80940-N3430 | 7512 | 1 | Yes | Yes | 80940-N3400 | ||
| 28 | ASSY-ARM REST DOOR R | 80940-N4600 | 7601 | 1 | Yes | Yes | 80940-N3430 | ||
| 28 | ASSY-ARM REST DOOR R | 80940-N4601 | 7608 | 1 | |||||
| 28 | ASSY-ARM REST DOOR R | 80940-N4602 | 7608 | 1 | |||||
| 29 | ASSY-ARM DOOR LH BEI | 80941-N4602 | 7608 | 1 | |||||
| 29 | ASSY-ARM REST DOOR L | 80941-N3400 | 1 | ||||||
| 29 | ASSY-ARM REST DOOR L | 80941-N3430 | 7512 | 1 | Yes | Yes | 80941-N3400 | ||
| 29 | ASSY-ARM REST DOOR L | 80941-N4600 | 7601 | 1 | Yes | Yes | 80941-N3430 | ||
| 29 | ASSY-ARM REST DOOR L | 80941-N4601 | 7608 | 1 | |||||
| 30 | SCREW-MACHINE M6X1.0 | 08440-61612 | 6 | ||||||
| 31 | ASSY-BACK MIRROR DOO | 96302-N3600 | 7607 | 1 | |||||
| 31 | ASSY-BACK MIRROR DOO | 96302-N4700 | 7608 | 1 | Yes | Yes | 96302-N3600 |
