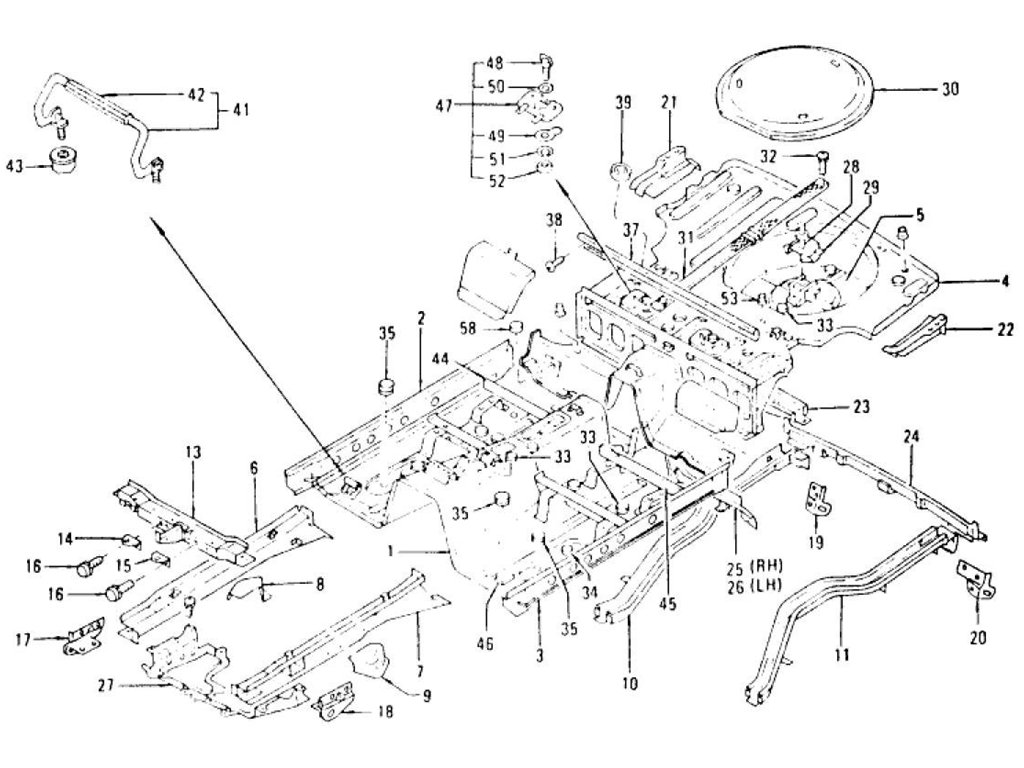

Floor Panel & Spare Tire Cover (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FLOOR FRONT | 74300-N3631 | AUTOMATIC | 7408 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N4311 | AUTOMATIC | 7409 | 7411 | 1 | No | No | 74300-N3631 |
| 1 | ASSY-FLOOR FRONT | 74300-N4301 | CAL | AUTOMATIC | 7412 | 1 | No | No | |
| 1 | ASSY-FLOOR FRONT | 74300-N4801 | CAL | AUTOMATIC | 7608 | 1 | |||
| 1 | ASSY-FLOOR FRONT | 74300-N4300 | CAL.MANUAL | 7412 | 1 | No | No | 74300-N4310 | |
| 1 | ASSY-FLOOR FRONT | 74300-N4800 | CAL.MANUAL | 7608 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N4201 | FED.AUTOMATIC | 7412 | 1 | No | No | 74300-N4311 | |
| 1 | ASSY-FLOOR FRONT | 74300-N4701 | FED.AUTOMATIC | 7608 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N4200 | FED.MANUAL | 7412 | 1 | No | No | 74300-N4310 | |
| 1 | ASSY-FLOOR FRONT | 74300-N4700 | FED.MANUAL | 7608 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N3630 | MANUAL | 7408 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N4310 | MANUAL | 7409 | 7411 | 1 | No | No | 74300-N3630 |
| 2 | ASSY-PANEL SILL INNE | 76410-N3400 | 7607 | 1 | |||||
| 2 | ASSY-PANEL SILL INNE | 76410-N4600 | 7608 | 1 | No | No | 76410-N3400 | ||
| 3 | ASSY-PANEL SILL INNE | 76411-N3600 | 1 | ||||||
| 3 | ASSY-PANEL SILL INNE | 76411-N4200 | 7412 | 7607 | 1 | No | No | 76411-N3600 | |
| 3 | ASSY-PANEL SILL INNE | 76411-N4700 | 7608 | 1 | No | No | 76411-N4200 | ||
| 4 | ASSY-REAR FLOOR | 74500-N3650 | 7408 | 1 | |||||
| 4 | ASSY-REAR FLOOR | 74500-N4251 | 7409 | 7411 | 1 | No | No | 74500-N3650 | |
| 4 | ASSY-REAR FLOOR | 74500-N4250 | 7412 | 7507 | 1 | No | No | 74500-N4251 | |
| 4 | ASSY-REAR FLOOR | 74500-N4253 | 7508 | 7607 | 1 | No | No | 74500-N4250 | |
| 4 | ASSY-REAR FLOOR | 74500-N4750 | 7608 | 7611 | 1 | No | No | 74500-N4250 | |
| 4 | ASSY-REAR FLOOR | 74500-N4752 | 7612 | 1 | No | No | 74500-N4750 | ||
| 5 | ASSY-HOUSING SPARE T | 74540-N3400 | 1 | ||||||
| 5 | ASSY-HOUSING SPARE T | 74540-N4200 | 7412 | 7607 | 1 | No | No | 74540-N3400 | |
| 5 | ASSY-HOUSING SPARE T | 74540-N4701 | 7608 | 1 | No | No | 74540-N4200 | ||
| 6 | ASSY-MEMBER SIDE FRO | 74802-N4150 | 7402 | 7408 | 1 | Yes | Yes | 74802-N3600 | |
| 6 | ASSY-MEMBER SIDE FRO | 74800-N4200 | 7409 | 1 | No | No | 74802-N4150 | ||
| 6 | ASSY-MEMBER SIDE FRO | 74800-N7600 | 7708 | 1 | Yes | Yes | 74800-N4700 | ||
| 6 | ASSY-MEMBER SIDE FRO | 74802-N3620 | AUTOMATIC | 7401 | 1 | ||||
| 6 | ASSY-MEMBER SIDE FRO | 74802-N3600 | MANUAL | 7401 | 1 | ||||
| 6 | ASSY-MEMBER SIDE FRO | 74800-N7701 | U.S.A.AUTO | 1 | Yes | Yes | 74800-N4701 | ||
| 6 | ASSY-MEMBER SIDE FRO | 74800-N4701 | U.S.A.AUTO | 7608 | 7707 | 1 | |||
| 6 | ASSY-MEMBER SIDE FRO | 74800-N4700 | U.S.A.MANUAL | 7608 | 7707 | 1 | |||
| 7 | ASSY-MEMBER SIDE FRO | 74803-N3600 | 7401 | 1 | |||||
| 7 | ASSY-MEMBER SIDE FRO | 74803-N4150 | 7402 | 7408 | 1 | Yes | Yes | 74803-N3600 | |
| 7 | ASSY-MEMBER SIDE FRO | 74801-N4200 | 7409 | 1 | No | No | 74803-N4150 | ||
| 7 | ASSY-MEMBER SIDE FRO | 74801-N4702 | U.S.A | 1 | Yes | Yes | 74801-N4700 | ||
| 7 | ASSY-MEMBER SIDE FRO | 74801-N4700 | U.S.A. | 7608 | 1 | ||||
| 8 | ASSY-BRACKET COMPRES | 74830-E4100 | 7408 | 1 | |||||
| 8 | ASSY-BRACKET COMPRES | 74830-N3700 | 7409 | 1 | No | No | 74830-E4100 | ||
| 9 | ASSY-BRACKET COMPRES | 74831-E4100 | 7408 | 1 | |||||
| 9 | ASSY-BRACKET COMPRES | 74831-N3700 | 7409 | 1 | No | No | 74831-E4100 | ||
| 10 | ASSY-MEMBER SIDE REA | 74842-N3400 | 1 | ||||||
| 10 | ASSY-MEMBER SIDE REA | 74842-N3430 | 7405 | 7408 | 1 | ||||
| 10 | ASSY-MEMBER SIDE REA | 74842-N4310 | 7409 | 7411 | 1 | No | No | 74842-N3430 | |
| 10 | ASSY-MEMBER SIDE REA | 74842-N4200 | 7412 | 1 | No | No | 74842-N4310 | ||
| 10 | ASSY-MEMBER SIDE REA | 74842-N4700 | 7508 | 1 | |||||
| 10 | ASSY-MEMBER SIDE REA | 74842-N3730 | U.S.A.AUTO | 7408 | 1 | Yes | Yes | 74842-N3430 | |
| 11 | ASSY-MEMBER SIDE REA | 74843-N3400 | 1 | ||||||
| 11 | ASSY-MEMBER SIDE REA | 74843-N3730 | 7408 | 1 | Yes | Yes | 74843-N3430 | ||
| 11 | ASSY-MEMBER SIDE REA | 74843-N3430 | 7405 | 7408 | 1 | ||||
| 11 | ASSY-MEMBER SIDE REA | 74843-N4500 | 7409 | 1 | No | No | 74843-N3430 | ||
| 11 | ASSY-MEMBER SIDE REA | 74843-N4700 | 7608 | 1 | No | No | 74843-N4500 | ||
| 12 | BOLT-HEX WITH WASHER | 08120-82533 | 1 | ||||||
| 13 | ASSY-MEMBER CROSS FR | 74820-N3000 | 7408 | 1 | |||||
| 13 | ASSY-MEMBER CROSS FR | 74820-N3200 | 7408 | 1 | Yes | Yes | 74820-N3000 | ||
| 13 | ASSY-MEMBER CROSS FR | 74820-N4200 | 7409 | 7411 | 1 | ||||
| 13 | ASSY-MEMBER CROSS FR | 74820-N4201 | 7412 | 7607 | 1 | No | No | 74820-N4200 | |
| 13 | ASSY-MEMBER CROSS FR | 74820-N4700 | 7608 | 1 | No | No | 74820-N4201 | ||
| 14 | HOOK-TIE DOWN RH | 74823-N3000 | 4 | ||||||
| 15 | HOOK-TIE DOWN LH | 74824-N3000 | 1 | ||||||
| 16 | BOLT-HEX.WITH WASHER | 08134-02510 | 4 | ||||||
| 17 | ASSY-HOOK TIE DOWN | 75840-N4200 | 7508 | 1 | |||||
| 18 | ASSY-HOOK TIE DOWN | 75841-N4200 | 7508 | 1 | |||||
| 19 | ASSY-HOOK LASHING RE | 85220-N4700 | 7508 | 1 | |||||
| 20 | ASSY-HOOK LASHING RE | 85221-N4200 | 7508 | 1 | |||||
| 21 | ASSY-MEMBER SHOCK AB | 74825-N3600 | 1 | ||||||
| 21 | ASSY-MEMBER SHOCK AB | 74825-N4700 | 7608 | 1 | |||||
| 22 | ASSY-MEMBER SHOCK AB | 74826-N3600 | 7607 | 1 | |||||
| 22 | ASSY-MEMBER SHOCK AB | 74826-N4700 | 7608 | 1 | No | No | 74826-N3600 | ||
| 23 | ASSY-MEMBER CROSS DI | 74880-N3400 | 7408 | 1 | |||||
| 23 | ASSY-MEMBER CROSS DI | 74880-N4200 | 7409 | 1 | No | No | 74880-N3400 | ||
| 23 | ASSY-MEMBER CROSS DI | 74880-N4701 | 7608 | 1 | No | No | 74880-N4200 | ||
| 24 | ASSY-MEMBE CROSS REA | 74890-N4200 | 7409 | 1 | No | No | 74890-N3600 | ||
| 24 | ASSY-MEMBER CROSS RE | 74890-N3600 | 7408 | 1 | |||||
| 24 | ASSY-MEMBER CROSS RE | 74890-N4700 | 7608 | 1 | |||||
| 25 | ASSY-MEMBER | 74870-N3700 | 7408 | 1 | |||||
| 25 | ASSY-MEMBER | 74870-N4200 | 7409 | 1 | No | No | 74870-N3700 | ||
| 26 | ASSY-MEMBER | 74871-N3700 | 7408 | 1 | |||||
| 26 | ASSY-MEMBER | 74871-N4500 | 7409 | 1 | No | No | 74871-N3700 | ||
| 26 | ASSY-MEMBER | 74871-N4200 | 7412 | 1 | No | No | 74871-N4500 | ||
| 27 | SPLASH-BOARD ENGINE | 74810-E4100 | 7408 | 1 | |||||
| 27 | SPLASH-BOARD ENGINE | 74810-N4200 | 7409 | 1 | No | No | 74810-E4100 | ||
| 28 | ASSY-CLAMP SPARE TIR | 57210-E4102 | 1 | ||||||
| 28 | ASSY-CLAMP SPARE TIR | 57210-E4200 | 1 | ||||||
| 28 | ASSY-CLAMP SPARE TIR | 57210-N4700 | 7707 | 1 | Yes | Yes | 57210-E4102 | ||
| 29 | PLATE-CLAMP SPARE TI | 74631-N3000 | 1 | ||||||
| 30 | BOARD-COVER SPARE TI | 74971-E4100 | 1 | ||||||
| 30 | BOARD-COVER SPARE TI | 74971-N3200 | 1 | ||||||
| 31 | ASSY-BAND PARCEL (BL | 96850-E4100 | 2 | ||||||
| 31 | SERVICE FILE BAND-PARCEL BRN | 96850-N7601 | 7708 | 2 | |||||
| 32 | SCREW-MACHINE | 08363-61214 | 8 | ||||||
| 33 | PLUG-RUBBER | 77700-89914 | 10 | ||||||
| 34 | RUBBER-GROMMET | 74942-10900 | 4 | ||||||
| 35 | GROMMET-FLOOR | 74942-N3001 | 4 | ||||||
| 36 | SCREW-MACHINE | 08363-61626 | 2 | ||||||
| 37 | MOULDING-LUGGAG STOP | 74963-N7601 | 7708 | 2 | |||||
| 37 | MOULDING-LUGGAG STOP | 74965-E8200 | 2 | ||||||
| 38 | SCREW-TAPPING M3.5 | 08530-71020 | 5 | ||||||
| 39 | CAP-HOUSING REAR SUS | 74986-E4100 | 2 | ||||||
| 40 | RUBBER-GROMMET | 67831-32200 | 1 | ||||||
| 41 | ASSY-FOOT REST ASSIS | 75500-E4100 | OP | 7408 | 1 | ||||
| 41 | ASSY-FOOT REST ASSIS | 75500-N4200 | OP | 7409 | 1 | No | No | 75500-E4100 | |
| 42 | BUMPER-FOOT REST ASS | 75502-E4100 | OP | 1 | Yes | Yes | 76462-E4100 | ||
| 42 | BUMPER-FOOT REST ASS | 76462-E4100 | OP | 1 | |||||
| 43 | NUT-FLANGE | 01221-00043 | OP | 2 | |||||
| 44 | MEMBER-SEAT MOUNTING | 74338-N3600 | 1 | ||||||
| 45 | MEMBER-SEAT MOUNTING | 74339-N3600 | 1 | ||||||
| 46 | PAD-FOOT REST DRIVER | 67145-25500 | 1 | ||||||
| 47 | ASSY-LID TOOL BOX | 74656-E8200 | 2 | ||||||
| 48 | ASSY-BOLT LID TOOL B | 74665-E8200 | 2 | ||||||
| 49 | PLATE-LOOK LID TOOL | 74668-E8200 | 2 | ||||||
| 50 | WASHER-PLASTIC | 80675-18000 | 2 | ||||||
| 51 | WASHER-SPRING LOCK | 08915-43810 | 2 | ||||||
| 52 | NUT-HEX | 08911-10810 | 2 | ||||||
| 53 | GROMMET-RUBBER | 67831-32200 | 1 | ||||||
| 54 | SCREW-MACHINE | 08310-51012 | 4 | ||||||
| 55 | SHIELD-DUST CHANGE L | 32869-E8700 | MANUAL | 1 | |||||
| 56 | PACKING-DUST SHIELD | 74375-E8700 | MANUAL | 1 | |||||
| 57 | SCREW-TAPPING | 08510-51642 | MANUAL | 4 | |||||
| 58 | GROMMET | 64821-32200 | MANUAL | 2 |
