Search Item:Key: Part Name: Part Number:

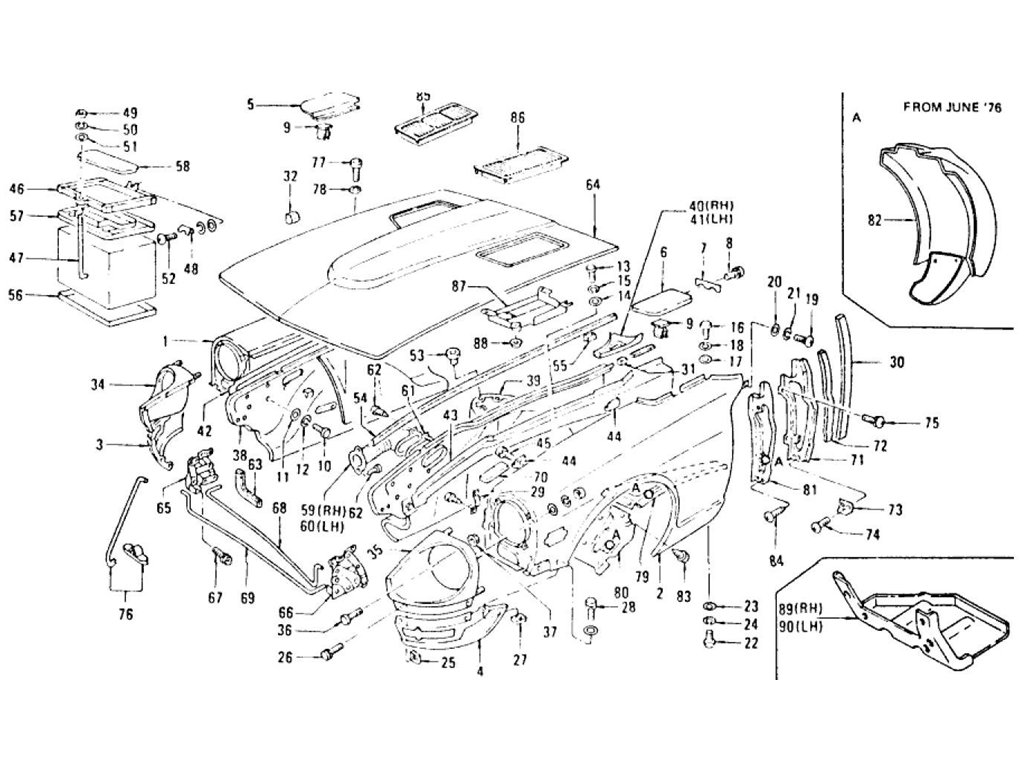

Front Fender, Hood Ledge & Hood (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FRONT FENDER RH | 63100-E4600 | 1 | ||||||
| 1 | ASSY-FRONT FENDER RH | 63100-N3600 | 1 | Yes | Yes | 63100-E4600 | |||
| 1 | ASSY-FRONT FENDER RH | 63100-N4700 | 7608 | 1 | Yes | Yes | 63100-N3600 | ||
| 2 | ASSY-FRONT FENDER LH | 63101-E4600 | 1 | ||||||
| 2 | ASSY-FRONT FENDER LH | 63101-N3600 | 1 | Yes | Yes | 63101-E4600 | |||
| 2 | ASSY-FRONT FENDER LH | 63101-N4700 | 7608 | 1 | Yes | Yes | 63101-N3600 | ||
| 3 | PANEL-FRONT FENDER F | 63120-E4100 | 7408 | 1 | Yes | Yes | 63120-N3600 | ||
| 3 | PANEL-FRONT FENDER F | 63120-N3600 | 7408 | 1 | |||||
| 3 | PANEL-FRONT FENDER F | 63120-N3601 | 7408 | 1 | Yes | Yes | 63120-E4100 | ||
| 3 | PANEL-FRONT FENDER F | 63120-N4200 | 7409 | 1 | No | No | 63120-N3600 | ||
| 4 | PANEL-FRONT FENDER F | 63121-E4100 | 7408 | 1 | Yes | Yes | 63121-N3600 | ||
| 4 | PANEL-FRONT FENDER F | 63121-N3600 | 7408 | 1 | |||||
| 4 | PANEL-FRONT FENDER F | 63121-N3601 | 7408 | 1 | Yes | Yes | 63121-E4100 | ||
| 4 | PANEL-FRONT FENDER F | 63121-N4200 | 7409 | 1 | No | No | 63121-N3600 | ||
| 5 | ASSY-LID BATTERY INS | 63200-E4102 | 1 | ||||||
| 6 | ASSY-LID BATTERY INS | 63201-E4102 | 1 | ||||||
| 7 | SHIM-ADJUST | 63217-E4100 | 2 | ||||||
| 8 | SCREW-MACHINE M5X0.8 | 08313-51226 | 4 | ||||||
| 9 | LOCK-LID INSPECTION | 63209-E4101 | 4 | ||||||
| 10 | BOLT-HEX HEAD LAMP S | 08110-61210 | 4 | ||||||
| 11 | WASHER-PLAIN HEAD LA | 08915-43610 | 4 | ||||||
| 12 | WASHER-SPRING HEAD L | 08915-13610 | 4 | ||||||
| 13 | BOLT-HEX FENDER TO H | 08110-61210 | 6 | ||||||
| 14 | WASHER-PLAIN FENDER | 08915-43610 | 6 | ||||||
| 15 | WASHER-SPRING FENDER | 08915-13610 | 6 | ||||||
| 16 | SCREW-MACHINE COWL T | 08340-61212 | 4 | ||||||
| 17 | WASHER-PLAIN COWL TO | 08915-43610 | 4 | ||||||
| 18 | WASHER-SPRING COWL T | 08915-13610 | 4 | ||||||
| 19 | SCREW-MACHINE FENDER | 08360-81612 | 2 | ||||||
| 20 | WASHER-PLAIN FENDER | 08915-43810 | 2 | ||||||
| 21 | WASHER-SPRING FENDER | 08915-13810 | 2 | ||||||
| 22 | SCREW-MACHINE FENDER | 08360-81612 | 4 | ||||||
| 23 | WASHER-PLAIN FENDER | 08915-43810 | 4 | ||||||
| 24 | WASHER-SPRING FENDER | 08915-13810 | 4 | ||||||
| 25 | NUT-JOINT RETAINER | 63140-78500 | 4 | ||||||
| 26 | CAM-SCREW WITH WASHE | 77720-89908 | 4 | ||||||
| 27 | NUT-JOINT RETAINER | 63140-78500 | 4 | ||||||
| 28 | CAM-SCREW WITH WASHE | 77720-89908 | 4 | ||||||
| 29 | SEALING-HEAD LAMP SU | 63814-E4100 | 2 | ||||||
| 30 | FILLER-BAFFLE FRONT | 63810-E4100 | 2 | ||||||
| 31 | RUBBER-CUSHION | 63223-E4102 | 2 | ||||||
| 32 | BUMPER-BATTERY LID | 63222-E4103 | 7612 | 6 | |||||
| 32 | BUMPER-BATTERY LID | 63222-N4600 | 7701 | 4 | No | No | 63222-E4103 | ||
| 33 | WASHER-LOCK | 08915-13510 | 4 | ||||||
| 34 | CASE-HEAD LAMP RH | 63115-N3000 | 7607 | 1 | |||||
| 34 | CASE-HEAD LAMP RH | 63115-N4700 | 7608 | 1 | No | No | 63115-N3000 | ||
| 35 | CASE-HEAD LAMP LH | 63116-N3000 | 7607 | 1 | |||||
| 35 | CASE-HEAD LAMP LH | 63116-N4700 | 7608 | 1 | No | No | 63116-N3000 | ||
| 36 | SCREW-MACHINE | 01431-00093 | 4 | ||||||
| 37 | NUT-FLANGE | 01221-00023 | 6 | ||||||
| 38 | ASSY-HOOD LEDGE RH | 64100-N3658 | 7408 | 1 | |||||
| 38 | ASSY-HOOD LEDGE RH | 64100-N4310 | 7409 | 7411 | 1 | No | No | 64100-N3658 | |
| 38 | ASSY-HOOD LEDGE RH | 64100-N4200 | 7412 | 7607 | 1 | No | No | 64100-N4310 | |
| 38 | ASSY-HOOD LEDGE RH | 64100-N4800 | 7608 | 7707 | 1 | No | No | 64100-N4200 | |
| 38 | ASSY-HOOD LEDGE RH | 64100-N7600 | 7708 | 1 | Yes | Yes | 64100-N4800 | ||
| 39 | ASSY-HOOD LEDGE LH | 64101-N3657 | 7408 | 1 | |||||
| 39 | ASSY-HOOD LEDGE LH | 64101-N4310 | 7409 | 7411 | 1 | No | No | 64101-N3657 | |
| 39 | ASSY-HOOD LEDGE LH | 64101-N4200 | 7412 | 7607 | 1 | No | No | 64101-N4310 | |
| 39 | ASSY-HOOD LEDGE LH | 64101-N4800 | 7608 | 7702 | 1 | No | No | 64101-N4200 | |
| 39 | ASSY-HOOD LEDGE LH | 64101-N7600 | 7703 | 1 | Yes | Yes | 64101-N4800 | ||
| 40 | GUSSET-HOOD LEDGE CO | 64155-E4100 | 1 | ||||||
| 41 | GUSSET-HOOD LEDGE CO | 64157-E4100 | 1 | ||||||
| 42 | ASSY-REINF HOOD LEDG | 64150-N3400 | 7408 | 1 | |||||
| 42 | ASSY-REINF HOOD LEDG | 64150-N3600 | 7409 | 7408 | 1 | ||||
| 42 | ASSY-REINF HOOD LEDG | 64150-N4201 | U.S.A. | 7508 | 1 | No | No | 64150-N3600 | |
| 43 | ASSY-REINF HOOD LEDG | 64151-N3400 | 7408 | 1 | |||||
| 43 | ASSY-REINF HOOD LEDG | 64151-N4501 | 7408 | 1 | |||||
| 43 | ASSY-REINF HOOD LEDG | 64151-N3600 | 7409 | 7507 | 1 | ||||
| 43 | ASSY-REINF HOOD LEDG | 64151-N4201 | U.S.A. | 7508 | 1 | No | No | 64151-N3600 | |
| 44 | BUMPER-HOOD | 65157-E4100 | 7601 | 4 | |||||
| 44 | BUMPER-HOOD | 65157-N4400 | 7602 | 4 | Yes | Yes | 65157-E4100 | ||
| 45 | SCREW-MACHINE M6 | 08310-61218 | 4 | ||||||
| 46 | ASSY-FRAME BATTERY F | 24420-E4600 | 1 | ||||||
| 46 | ASSY-FRAME BATTERY F | 24420-N4700 | CANADA OP.USA | 7705 | 1 | No | No | 24420-E4600 | |
| 47 | ROD-BATTERY SUPPORT | 24438-21000 | 1 | ||||||
| 48 | CUSHION-BATTERY FIX | 24480-E4600 | 1 | ||||||
| 49 | NUT-HEX M6 | 01221-00033 | 1 | ||||||
| 50 | WASHER-SPRING M6 | 08915-13610 | 1 | ||||||
| 51 | WASHER-PLAIN M6 | 08915-53610 | 1 | ||||||
| 52 | SCREW-MACHINE M6 | 08360-61812 | 1 | ||||||
| 53 | CAP-INSULATOR FRONT | 64810-E4100 | 2 | ||||||
| 54 | RUBBER-SEALING SIDE | 64807-E4100 | 2 | ||||||
| 55 | CLIP-SEALING RUBBER | 64809-E4100 | 12 | ||||||
| 56 | TRAY-BATTERY | 24428-E4600 | 1 | ||||||
| 56 | TRAY-BATTERY | 24428-N3600 | 1 | Yes | Yes | 24428-E4600 | |||
| 57 | COVER-BATTERY | 24431-E4600 | 1 | ||||||
| 57 | COVER-BATTERY | 24431-N4700 | CANADA OP USA | 7705 | 1 | No | No | 24431-E4600 | |
| 58 | CAP-BATTERY COVER | 24432-E4600 | 1 | ||||||
| 58 | CAP-BATTERY COVER | 24432-N4700 | 7705 | 1 | No | No | 24432-E4600 | ||
| 59 | ASSY-GUIDE AIR INTAK | 62590-E4101 | 7607 | 1 | |||||
| 60 | ASSY-GUIDE AIR INTAK | 62591-E4101 | 7408 | 1 | |||||
| 60 | ASSY-GUIDE AIR INTAK | 62591-N4500 | 7409 | 7607 | 1 | No | No | 62591-E4101 | |
| 61 | PLATE-GUIDE AIR INTA | 62595-E4101 | 2 | ||||||
| 62 | SCREW-TAPPING | 08510-51623 | 8 | ||||||
| 63 | RUBBER-FLANGE COVER | 64815-E4100 | 2 | ||||||
| 64 | ASSY-HOOD | 65100-E4100 | 7402 | 1 | |||||
| 64 | ASSY-HOOD | 65100-N4200 | 7403 | 1 | Yes | Yes | 65100-E4100 | ||
| 64 | ASSY-HOOD | 65100-N4800 | / | ML | 1 | ||||
| 65 | ASSY-HINGE HOOD RH | 65410-N4202 | 1 | Yes | Yes | 65410-N4201 | |||
| 65 | ASSY-HINGE HOOD RH | 65410-E4101 | 7408 | 1 | |||||
| 65 | ASSY-HINGE HOOD RH | 65410-N4201 | 7409 | 1 | |||||
| 66 | ASSY-HINGE HOOD LH | 65411-E4101 | 7408 | 1 | |||||
| 66 | ASSY-HINGE HOOD LH | 65411-N4202 | 1 | Yes | Yes | 65411-N4201 | |||
| 66 | ASSY-HINGE HOOD LH | 65411-N4201 | 7409 | 1 | |||||
| 67 | SCREW-MACHINE M8 | 08363-82026 | 10 | ||||||
| 68 | BAR-TORSION HOOD HIN | 65415-E4100 | 7408 | 1 | |||||
| 68 | BAR-TORSION HOOD HIN | 65415-N4201 | 7409 | 1 | |||||
| 69 | BAR-TORSION HOOD HIN | 65416-E4100 | 7408 | 1 | |||||
| 69 | BAR-TORSION HOOD HIN | 65416-N4201 | 7409 | 1 | |||||
| 70 | PACKING-FRONT FENDER | 63159-E4100 | 2 | ||||||
| 71 | MUD GUARD-FENDER LH | 63831-E4100 | 7312 | 1 | |||||
| 71 | MUD GUARD-FENDER RH | 63830-E4100 | 7312 | 1 | |||||
| 72 | SEALING-MUD GUARD | 63815-E4100 | 2 | ||||||
| 73 | RUBBER-MUD GUARD | 63835-E4100 | 2 | ||||||
| 74 | SCREW-TAPPING M5 | 08510-51623 | 4 | ||||||
| 75 | SCREW-MACHINE | 08363-61226 | 6 | ||||||
| 76 | ASSY-ROD | 65710-E4101 | 7408 | 1 | |||||
| 76 | ASSY-ROD | 65710-N4200 | 7409 | 1 | |||||
| 77 | COMP-HOOD BUMPER | 63840-46500 | 2 | ||||||
| 78 | WASHER-LOCK | 00916-31410 | 2 | ||||||
| 79 | PROTECTOR-FRONT FEND | 64144-N3600 | 7401 | 7605 | 1 | ||||
| 79 | PROTECTOR-FRONT FEND | 64145-N3600 | 7401 | 7605 | 1 | ||||
| 80 | PROTECTOR-FRONT FEND | 64186-N3600 | 7401 | 7605 | 1 | ||||
| 80 | PROTECTOR-FRONT FEND | 64187-N3600 | 7401 | 7605 | 1 | ||||
| 81 | PROTECTOR-FRONT FEND | 63830-N3600 | 7401 | 7605 | 1 | ||||
| 81 | PROTECTOR-FRONT FEND | 63831-N3600 | 7401 | 7605 | 1 | ||||
| 82 | ASSY-PROTECTOR FRONT | 63880-N4200 | 7606 | 1 | |||||
| 82 | ASSY-PROTECTOR FRONT | 63881-N4200 | 7606 | 1 | |||||
| 82 | ASSY-PROTECTOR FRONT | 63831-N4200 | 7712 | 1 | No | No | 63881-N4200 | ||
| 82 | ASSY-PROTECTOR FRONT | 63830-N4200 | CAL | 7712 | 1 | No | No | 63880-N4200 | |
| 83 | SCREW-MACHINE | 08366-62026 | 7401 | 26 | |||||
| 84 | SCREW-MACHINE | 08510-51623 | 7401 | 4 | |||||
| 85 | ASSY-LOUVER HOOD RH | 65820-N4700 | 7608 | 1 | Yes | Yes | 65820-N4701 | ||
| 85 | ASSY-LOUVER HOOD RH | 65820-N4701 | 7608 | 1 | |||||
| 86 | ASSY-LOUVER HOOD LH | 65821-N4700 | 7608 | 1 | Yes | Yes | 65820-N4701 | ||
| 86 | ASSY-LOUVER HOOD LH | 65821-N4701 | 7608 | 1 | |||||
| 87 | COVER-HOOD LOUVER LH | 65830-N4700 | 7608 | 1 | |||||
| 88 | NUT | 08911-10637 | 7608 | 9 | |||||
| 89 | BRACKET ASSY FRONT C | 64154-N4200 | 7607 | 1 | |||||
| 89 | BRACKET ASSY FRONT C | 64154-N4700 | 7707 | 1 | |||||
| 90 | BRACKET ASSY FRONT C | 64196-N4200 | 7607 | 1 | |||||
| 90 | BRACKET ASSY FRONT C | 64196-N4700 | 7707 | 1 |
