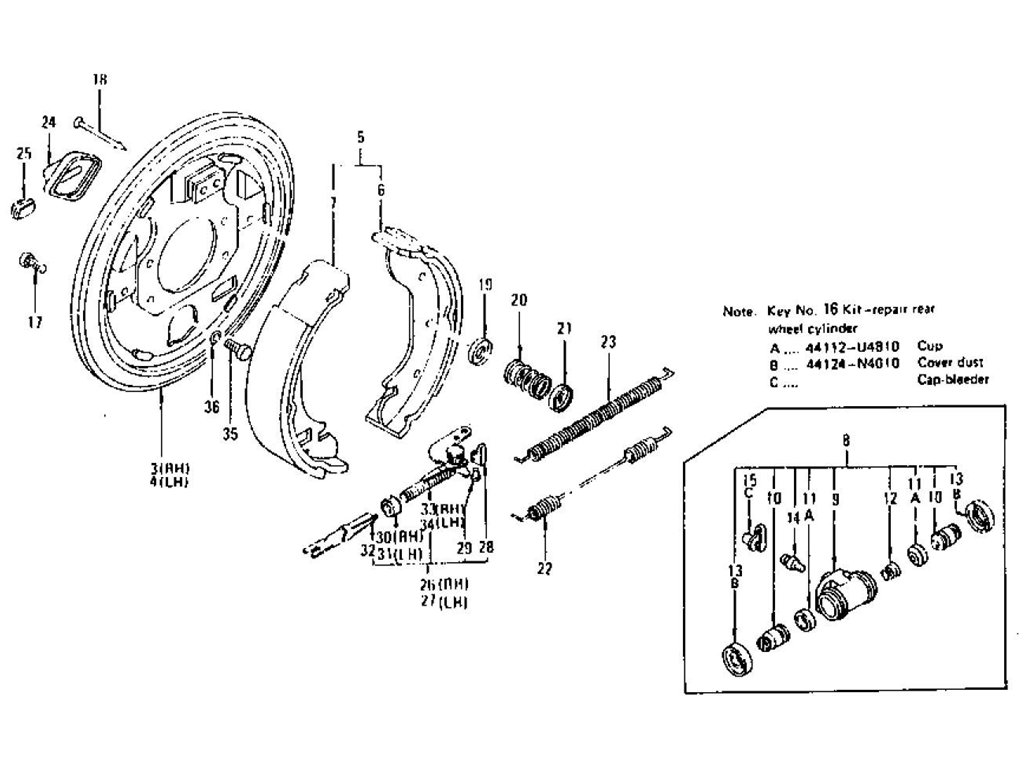

Rear Brake (Drum Brake) (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-BRAKE REAR RH | 44000-N4601 | 7608 | 1 | |||||
| 2 | ASSY-BRAKE REAR LH | 44010-N4601 | 7608 | 1 | |||||
| 3 | ASSY-PLATE BACK RH | 44020-N4600 | 7608 | 1 | |||||
| 4 | ASSY/PLATE BACK LH | 44030-N4600 | 7608 | 1 | |||||
| 5 | SET-SHOE REAR BRAKE | 44060-U8725 | 7608 | 1 | |||||
| 6 | ASSY-SHOE REAR BRAKE | 44060-U8700 | 7608 | 2 | |||||
| 7 | ASSY-SHOE REAR BRAKE | 44070-N4600 | 7608 | 2 | |||||
| 8 | ASSY-CYLINDER REAR W | 44100-N4602 | 7608 | 2 | |||||
| 9 | CYLINDER | 44105-N4610 | 7608 | 1 | |||||
| 10 | PISTON | 44108-N4610 | 7608 | 2 | |||||
| 11 | CUP | 44112-U4810 | 7608 | 2 | |||||
| 12 | SPRING | 44125-M4910 | 7608 | 2 | |||||
| 13 | COVER-DUST | 44124-N4610 | 7608 | 2 | |||||
| 14 | BLEEDER | 41128-N4610 | 7608 | 1 | |||||
| 16 | KIT-REPAIR REAR WHEE | D4100-N4626 | 1 | Yes | Yes | 44100-N4626 | |||
| 16 | KIT-REPAIR REAR WHEE | 44100-N4626 | 7608 | 1 | |||||
| 17 | BOLT-HEX | 01436-00052 | 4 | Yes | Yes | 08120-61262 | |||
| 17 | BOLT-HEX | 08120-61262 | 7608 | 4 | |||||
| 18 | PIN-SHOE FIXING | 44081-U9200 | 7608 | 7802 | 4 | ||||
| 18 | PIN-SHOE FIXING | 44081-U9201 | 7803 | 4 | Yes | Yes | 44081-U9200 | ||
| 19 | SEAT-SPRING | 44082-32200 | 7608 | 7802 | 4 | ||||
| 19 | SEAT-SPRING | 44082-U9200 | 7803 | 4 | Yes | Yes | 44082-32200 | ||
| 20 | SPRING-SHOE FIXING | 44083-U9200 | 7608 | 4 | |||||
| 21 | RETAINER-SPRING | 44084-32201 | 7608 | 7802 | 4 | ||||
| 21 | RETAINER-SPRING | 44084-U9200 | 7803 | 4 | Yes | Yes | 44084-32201 | ||
| 22 | SPRING-RETURN REAR B | 44090-U8700 | 7608 | 2 | |||||
| 23 | SPRING-RETURN REAR B | 44091-U8700 | 7608 | 2 | |||||
| 24 | BOOT-DUST | 44095-M4910 | 7608 | 2 | |||||
| 25 | PLUG-ADJUST HOLE | 44098-M4900 | 7608 | 2 | |||||
| 25 | PLUG-ADJUST HOLE | 44098-M4901 | 7802 | 2 | Yes | Yes | 44098-M4900 | ||
| 26 | ASSY-ADJUSTER REAR B | 44200-N4600 | 7608 | 1 | |||||
| 27 | ASSY-ADJUSTER REAR B | 44201-N4600 | 7608 | 1 | |||||
| 28 | STOPPER-LEVER | 44211-S5000 | 7608 | 2 | |||||
| 29 | FASTENER | 44212-S5000 | 7608 | 2 | |||||
| 30 | NUT-ADJUST | 44204-N4600 | 7608 | 1 | |||||
| 31 | NUT-ADJUST | 44205-N4600 | 7608 | 1 | |||||
| 32 | ASSY-ROD | 44208-N4600 | 7608 | 2 | |||||
| 32 | ASSY-ROD | 44208-N4601 | 7608 | 2 | |||||
| 33 | SUB ASSY-ADJUSTER | 44209-N4600 | 7608 | 1 | |||||
| 34 | SUB ASSY-ADJUSTER | 44210-N4600 | 7608 | 1 | |||||
| 35 | BOLT-HEX | 08134-01610 | 7607 | 8 | |||||
| 36 | WASHER-SPRING | 08915-24010 | 7608 | 8 |
