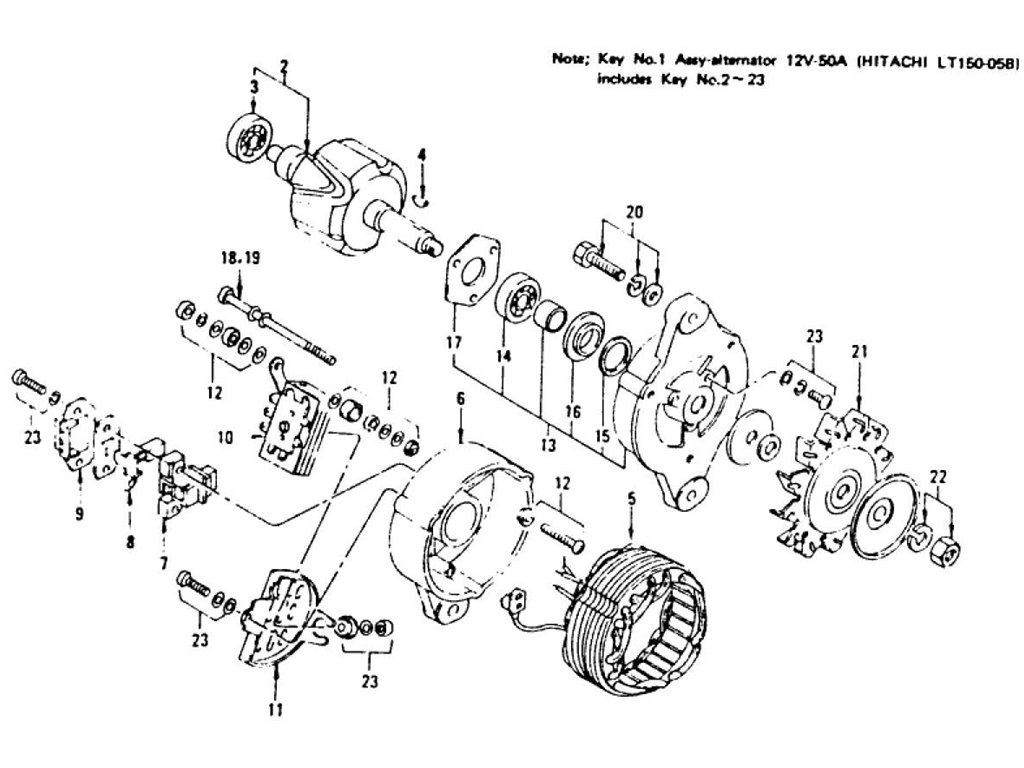

Alternator (12V-50A) Hitachi (From Sep.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-ALTERNATOR 12V- | 23100-P0102 | L24 | 7109 | 7206 | 1 | |||
| 1 | ASSY-ALTERNATOR 12V- | 23100-P0103 | L24 | L26 | 7207 | 7502 | 1 | ||
| 1 | ASSY-ALTERNATOR 12V- | 23100-P4500 | L24 | L26 | 7503 | 7509 | 1 | Yes | Yes |
| 1 | ASSY-ALTERNATOR 12V- | 23100-P4501 | L26 | 7510 | 1 | Yes | Yes | 23100-P4500 | |
| 2 | ASSY-ROTOR | 23108-P0101 | L24 | L26 | 7109 | 7502 | 1 | ||
| 2 | ASSY-ROTOR | 23108-V5800 | L24 | L26 | 7503 | 7509 | 1 | No | No |
| 2 | ASSY-ROTOR | 23108-H6200 | L24 | L26 | 7510 | 1 | No | No | |
| 3 | BEARING-BALL | 23120-14801 | L24 | L26 | 7109 | 1 | |||
| 4 | KEY | 23195-30000 | L24 | L26 | 7109 | 1 | |||
| 5 | ASSY-STATOR | 23102-P0102 | L24 | L26 | 7109 | 1 | |||
| 6 | ASSY-COVER | 23127-P0102 | L24 | L26 | 7109 | 1 | |||
| 7 | ASSY-BRUSH | 23133-P0100 | L24 | L26 | 7109 | 1 | |||
| 8 | TERMINAL-N | 23193-P0100 | L24 | L26 | 7109 | 1 | |||
| 9 | COVER-BRUSH | 23236-P0100 | L24 | L26 | 7109 | 1 | |||
| 10 | ASSY-DIODE | 23232-B8000 | L24 | L26 | 7109 | 1 | Yes | Yes | |
| 10 | ASSY-DIODE | 23232-E6601 | L24 | L26 | 7109 | 1 | |||
| 11 | COVER-DIODE | 23236-H0300 | L24 | L26 | 7109 | 1 | |||
| 11 | COVER-DIODE | 23236-H0301 | L24 | L26 | 7109 | 1 | Yes | Yes | |
| 12 | ASSY-BOLT | 23158-E6601 | L24 | L26 | 7109 | 1 | |||
| 12 | ASSY-BOLT | 23158-P0100 | L24 | L26 | 7109 | 1 | Yes | Yes | |
| 13 | ASSY-COVER | 23118-P0101 | L24 | L26 | 7109 | 1 | |||
| 14 | BEARING-BALL | 23120-P4500 | L24 | L26 | 1 | Yes | Yes | ||
| 14 | BEARING-BALL | 23120-65004 | L24 | L26 | 7109 | 1 | |||
| 15 | PACKING | 23122-E3200 | L24 | L26 | 7109 | 1 | |||
| 16 | RETAINER-PACKING | 23121-E3200 | L24 | L26 | 7109 | 1 | |||
| 17 | RETAINER--BEARING | 23123-65005 | L24 | L26 | 7109 | 1 | |||
| 18 | BOLT-THROUGH | 23131-78500 | L24 | L26 | 7109 | 1 | |||
| 19 | BOLT-THROUGH | 28131-P4500 | L24 | L26 | 1 | Yes | Yes | ||
| 19 | BOLT-THROUGH | 23131-E3200 | L24 | L26 | 7109 | 1 | |||
| 20 | BOLT-SETTING | 23164-H0100 | L24 | L26 | 7109 | 1 | |||
| 21 | ASSY-PULLEY | 23150-P0100 | L24 | 7109 | 7206 | 1 | |||
| 21 | ASSY-PULLEY | 23150-P4501 | L24 | L26 | 7109 | 1 | Yes | Yes | |
| 21 | ASSY-PULLEY | 23150-P0101 | L24 | L26 | 7207 | 7502 | 1 | No | No |
| 21 | ASSY-PULLEY | 23150-P4500 | L24 | L26 | 7503 | 1 | No | No | |
| 22 | NUT-PULLEY | 23153-65003 | L24 | 7206 | 1 | ||||
| 22 | NUT-PULLEY | 23153-P4500 | L24 | L26 | 1 | Yes | Yes | ||
| 22 | NUT-PULLEY | 23153-16600 | L24 | L26 | 7207 | 7502 | 1 | No | No |
| 22 | NUT-PULLEY | 23153-U5800 | L24 | L26 | 7503 | 1 | No | No | |
| 23 | KIT-SCREW | 23200-E3400 | L24 | L26 | 7109 | 1 |
