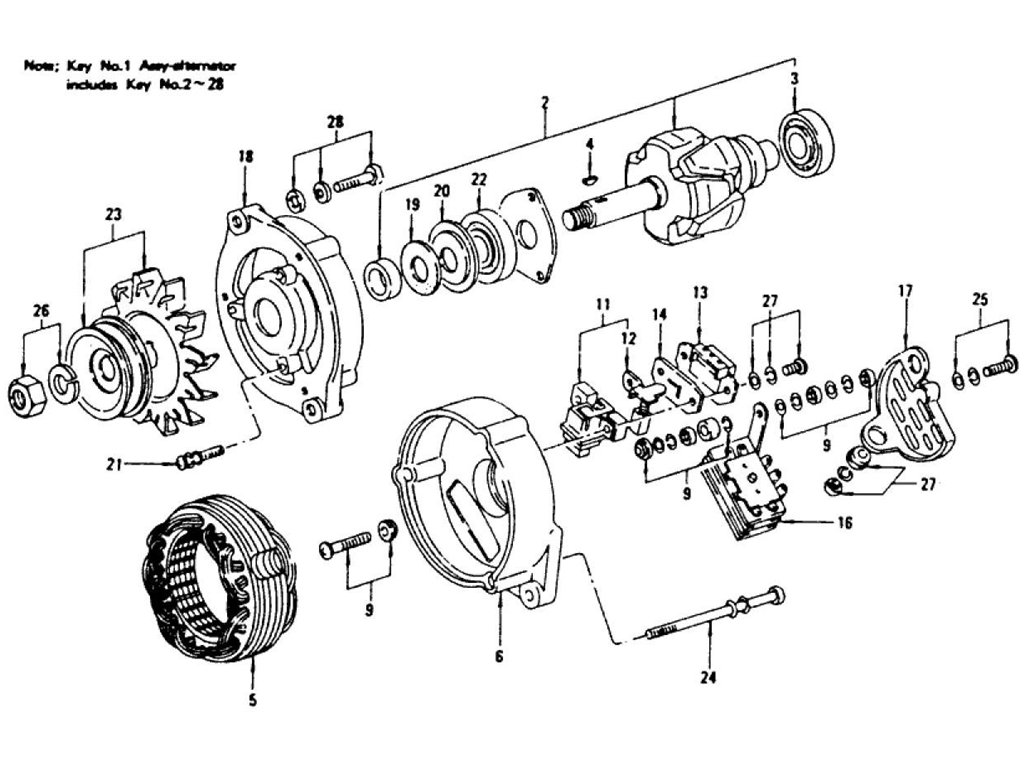

Alternator (12V-60A) Hitachi (For Cold Area)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-ALTERNATOR 12V- | 23100-N3300 | L24 | L26 FOR CANA DA | 7208 | 1 | Yes | Yes | |
| 1 | ASSY-ALTERNATOR 12V- | 23100-N3300 | L28E | 7412 | 7502 | 1 | |||
| 1 | ASSY-ALTERNATOR 12V- | 23100-N3301 | L28E | 7503 | 7510 | 1 | Yes | Yes | 23100-N3300 |
| 1 | ASSY-ALTERNATOR 12V- | 23100-N3302 | L28E | 7511 | 7702 | 1 | Yes | Yes | 23100-N3301 |
| 1 | ASSY-ALTERNATOR 12V- | 23100-N3303 | L28E | 7703 | 1 | 23100-N3302 | |||
| 2 | ASSY-ROTOR | 23108-N3300 | L24 | L26 CANADA & L28E | 7208 | 7502 | 1 | No | No |
| 2 | ASSY-ROTOR | 23108-U6100 | L28E | 7503 | 1 | No | No | 23108-N3300 | |
| 3 | BEARING-BALL | 23120-14801 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 4 | KEY | 23195-30000 | L24 | L26 CANADA & L28E | 7207 | 7502 | 1 | ||
| 5 | ASSY-STATOR | 23102-N3300 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 6 | ASSY-COVER | 23127-N3300 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 9 | ASSY-BOLT TERMINAL | 23158-P0100 | L24 | L26 CANADA & L28E | 1 | Yes | Yes | ||
| 11 | ASSY-BRUSH | 23133-N3300 | L24 | L26 CANADA & L28E | 7208 | 1 | Yes | Yes | |
| 12 | TERMINAL-N | 23193-P0100 | L24 | L26 CANADA & L28E | 7207 | 1 | |||
| 12 | TERMINAL-N | 23193-P0100 | OP L24 | L26 FOR CO LD | 7207 | 1 | |||
| 13 | COVER-BRUSH | 23236-P0100 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 14 | PACKING-BRUSH | 23237-U0700 | L24 FOR CANADA | 7207 | 7207 | 1 | |||
| 15 | COVER | 23236-U0701 | .24 FOR CANADA | 7207 | 7207 | 1 | |||
| 16 | ASSY-DIODE | 23232-E6601 | L24 | L26 CANADA & L28E | 7208 | 7510 | 1 | ||
| 16 | ASSY-DIODE | 23232-N3300 | L28E | 1 | Yes | Yes | 23232-U6000 | ||
| 16 | ASSY-DIODE | 23232-U6000 | L28E | 7511 | 1 | Yes | Yes | 23232-E6601 | |
| 17 | COVER-DIODE | 23236-N3300 | L24 | L26 CANADA & L28E | 7208 | 1 | |||
| 18 | ASSY-COVER FRONT | 23118-N3300 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 19 | PACKING | 23122-E3200 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 20 | RETAINER-PACKING | 23121-E3200 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 21 | SCREW M5X0.8X21 | 23180-E6601 | L24 | L26 CANADA & L28E | 7208 | 3 | |||
| 22 | BEARING-BALL | 23120-P4500 | L24 | L26 CANADA & L28E | 1 | Yes | Yes | ||
| 22 | BEARING-BALL | 23120-65004 | L24 | L26 CANADA & L28E | 7207 | 1 | |||
| 23 | ASSY-PULLEY | 23150-P0101 | L24 | L26 CANADA & L28E | 7207 | 7502 | 1 | ||
| 23 | ASSY-PULLEY | 23150-P4501 | L28E | 1 | Yes | Yes | 23150-P4500 | ||
| 23 | ASSY-PULLEY | 23150-P4500 | L28E | 7503 | 1 | No | No | 23150-P0101 | |
| 24 | BOLT-THROUGH | 23131-78500 | L24 | L26 CANADA & L28E | 7208 | 1 | No | No | |
| 25 | BOLT-THROUGH | 23131-P4500 | L24 | L26 CANADA & L28E | 2 | Yes | Yes | ||
| 25 | BOLT-THROUGH | 23131-E3200 | L24 | L26 CANADA & L28E | 7208 | 2 | No | No | |
| 26 | ASSY-NUT | 23153-16600 | L24 | L26 CANADA & L28E | 7207 | 7502 | 1 | ||
| 26 | ASSY-NUT | 23153-P4500 | L28E | 1 | Yes | Yes | 23153-U5800 | ||
| 26 | ASSY-NUT | 23153-U5800 | L28E | 7503 | 1 | No | No | 23153-16600 | |
| 27 | KIT SCREW | 23200-E3400 | L24 | L26 CANADA & L28E | 7207 | 1 | |||
| 28 | BOLT-SETTING | 23164-H0100 | L24 | L26 CANADA & L28E | 7207 | 7702 | 1 |
