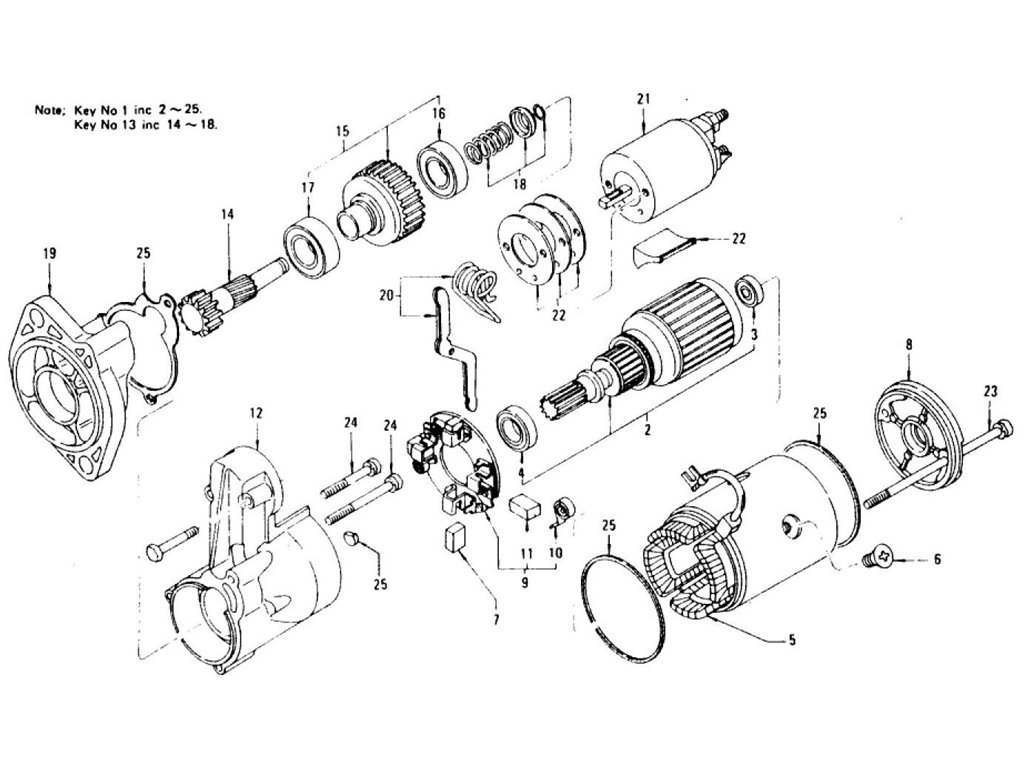

Starter Motor (For Automatic) (From Apr.-'77)

From Apr.-'77
Parts List
KeyPart NamePart NumberModelFromToQtyNewerFormerSuperceded
  1ASSY-STARTER MOTOR (23300-N5901L28E1YesYes23300-N5900
  1ASSY-STARTER MOTOR (23300-N5902L28E1YesYes23300-N5901
  1ASSY-STARTER MOTOR (23300-N5903L28E1YesYes23300-N5902
  1ASSY-STARTER MOTOR (23300-N5900L28E USA77081
  2ASSY-ARMATURE23310-N5900L28E USA77081YesYes23343-N3300
  3BEARING-BALL23319-M4900L28E USA77081YesYes23343-N3300
  4BEARING-BALL23338-M4900L28E USA77081
  5ASSY-COIL FIELD23306-N5900L28E USA77081
  6SET-SCREW POLE CORE23305-09500L28E USA77084
  7BRUSH (+)23380-M4900L28E USA77082
  8COVER-REAR23337-M4900L28E USA77081
  9ASSY-HOLDER BRUSH23378-M4901L28E USA1YesYes23378-M4900
  9ASSY-HOLDER BRUSH23378-M4900L28E USA77081
  10SPRING-BRUSH23333-M4900L28E USA77084
  11BRUSH (-)23379-M4900L28E USA77082
  12HOUSING-CENTER23346-N5901L28E USA77081
  13ASSY-PINION23312-H9100L28E USA77081
  14SHAFT-PINION23357-H9100L28E USA77081
  15ASSY-CLUTCH23354-M4900L28E USA77081
  16BEARING-BALL23358-M4900L28E USA77081
  17BEARING-BALL23363-M4900L28E USA77081
  18SET-STOPPER23465-M4900L28E USA77081
  19CASE-GEAR23318-N5901L28E USA77081
  20SET-SHIFT LEVER23322-N5900L28E USA77081
  21ASSY-SWITCH MAGNETIC23343-M4900L28E USA77081
  22KIT-COVE DUST (1)23470-H9100L28E USA77081
  23BOLT-THROUGH23340-N5900L28E USA77082
  24KIT-BOLT23480-M4900L28E USA77081
  25KIT-COVER DUST (2)23470-N5905L28E1YesYes23470-H9105
  25KIT-COVER DUST (2)23470-H9105L28E USA77081
