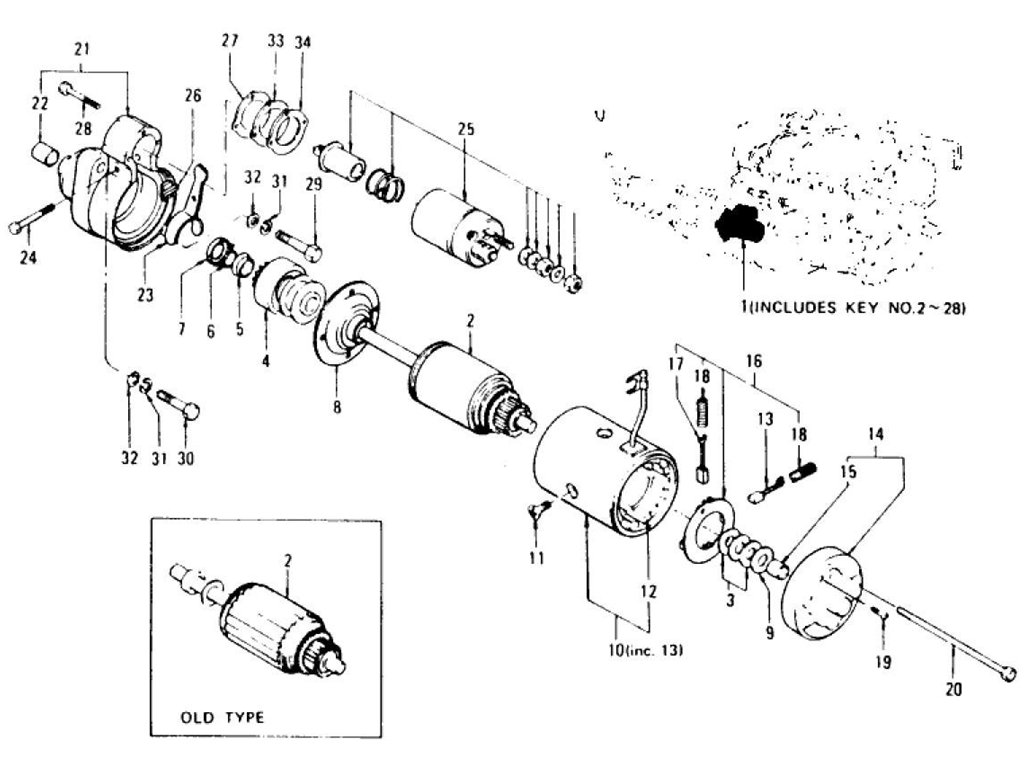

Starter Motor (For Manual) (To Sep.-'75)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STARTER MOTOR ( | 23300-E3100 | L24 | 7010 | 1 | ||||
| 1 | ASSY-STARTER MOTOR ( | 23300-Y0701 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 1 | ASSY-STARTER MOTOR ( | 23300-E3101 | L24 | L26 | L28E MANU AL | 7011 | 1 | Yes | |
| 2 | ASSY-ARMATURE | 23310-E3100 | L24 | 1 | |||||
| 2 | ASSY-ARMATURE | 23310-E3101 | L24 | 1 | Yes | Yes | 23310-E3100 | ||
| 2 | ASSY-ARMATURE | 23310-E3102 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 3 | WASHER-THRUST B | 23321-09900 | L24 | L26 | L28E MANU AL | 2 | |||
| 3 | WASHER-THRUST C | 23339-09900 | L24 | L26 | L28E MANU AL | 1 | |||
| 3 | WASHER-THRUST D | 23321-E3000 | L24 | L26 | L28E MANU AL | 1 | |||
| 4 | ASSY-PINION | 23312-10600 | L24 | 1 | |||||
| 4 | ASSY-PINION | 23312-10605 | L24 | 1 | Yes | Yes | 23312-10600 | ||
| 4 | ASSY-PINION | 23312-E3000 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 5 | STOPPER-PINION | 23369-10600 | L24 | 1 | |||||
| 5 | STOPPER-PINION | 23465-E6800 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 6 | CLIP-STOPPER | 23353-10600 | L24 | L26 | L28E MANU AL | 1 | |||
| 7 | WASHER-STOPPER | 23370-09600 | L24 | L26 | L28E MANU AL | 1 | |||
| 8 | ASSY-BEARING CENTER | 23383-E3100 | L24 | L26 | L28E MANU AL | 1 | |||
| 9 | WASHER-THRUST | 23320-E3100 | L24 | L26 | L28E MANU AL | 1 | |||
| 10 | ASSY-YOKE | 23302-E3100 | L24 | L26 | L28E MANU AL | 1 | |||
| 11 | SCREW-SET POLE CORE | 23305-21000 | L24 | L26 | L28E MANU AL | 4 | |||
| 12 | ASSY-COIL FIELD | 23306-E3100 | L24 | 1 | |||||
| 12 | ASSY-COIL FIELD | 23306-E3102 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 13 | BRUSH + | 23380-21000 | L24 | L26 | L28E MANU AL | 2 | |||
| 14 | ASSY-COVER REAR | 23337-21000 | L24 | L26 | L28E MANU AL | 1 | |||
| 15 | METAL-COVER REAR | 23338-21000 | L24 | L26 | L28E MANU AL | 1 | |||
| 16 | ASSY-HOLDER BRUSH | 23378-21005 | L24 | 7010 | 1 | ||||
| 16 | ASSY-HOLDER BRUSH | 23378-21006 | L24 | L26 | L28E MANU AL | 7011 | 1 | Yes | |
| 17 | BRUSH - | 23379-21000 | L24 | L26 | L28E MANU AL | 2 | |||
| 18 | SPRING-BRUSH | 23333-21000 | L24 | 7010 | 4 | ||||
| 18 | SPRING-BRUSH | 23333-21001 | L24 | L26 | L28E MANU AL | 7011 | 4 | ||
| 19 | SCREW-M4 | 22103-18005 | L24 | L26 | L28E MANU AL | 2 | |||
| 20 | BOLT-THOUGH | 23340-E3100 | L24 | L26 | L28E MANU AL | 2 | |||
| 21 | ASSY-CARE GEAR | 23318-E3100 | L24 | L26 | L28E MANU AL | 1 | |||
| 22 | METAL-GEAR CASE | 23319-E3100 | L24 | L26 | L28E MANU AL | 1 | |||
| 23 | LEVER-SHIFT | 23322-21000 | L24 | 1 | |||||
| 23 | LEVER-SHIFT | 23322-21001 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 24 | PIN-SHIFT LEVER | 23323-E3000 | L24 | L26 | L28E MANU AL | 1 | |||
| 25 | ASSY-SWITCH MAGNETIC | 23343-21005 | L24 | 1 | |||||
| 25 | ASSY-SWITCH MAGNETIC | 23343-21006 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 26 | COVER-DUST 1 | 23345-21000 | L24 | L26 | L28E MANU AL | 1 | |||
| 27 | COVER-DUST 2 | 23445-E3000 | L24 | L26 | L28E MANU AL | 1 | |||
| 28 | SCREW MS | 23344-21005 | L24 | L26 | L28E MANU AL | 3 | |||
| 29 | BOLT-HEX M10X1.SX45 | 08121-04510 | L24 | L26 | L28E MANU AL | 1 | |||
| 30 | BOLT-HEX M10X1.SX35 | 08121-03510 | L24 | L26 | L28E MANU AL | 1 | |||
| 30 | BOLT-HEX M10X1.SX35 | 08121-03528 | L24 | L26 | L28E MANU AL | 1 | Yes | ||
| 31 | WASHER-SPRING 10 | 08915-24010 | L24 | L26 | L28E MANU AL | 2 | |||
| 32 | WASHER-PLAIN 10 | 08915-44010 | L24 | L26 | L28E MANU AL | 2 | |||
| 33 | WASHER-ADJUST 1 | 23345-78500 | L24 | L26 | L28E MANU AL | 1 | |||
| 34 | WASHER-ADJSUT 2 | 23345-E3000 | L24 | L26 | L28E MANU AL | 1 |
