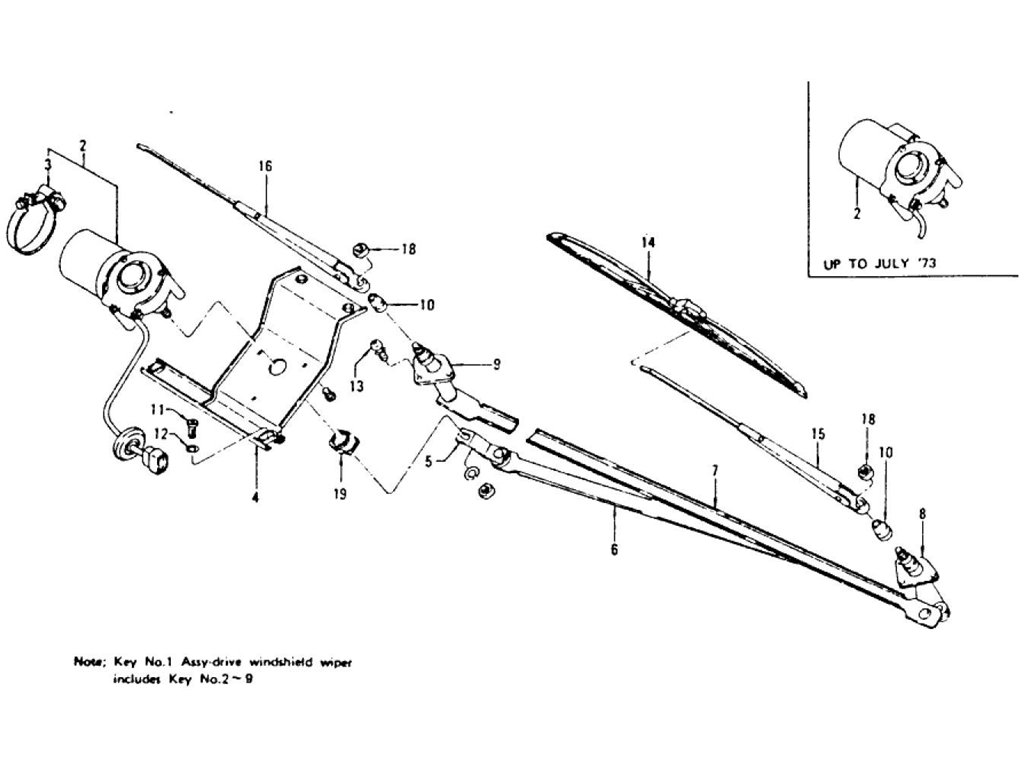

Windshield Wiper, Motor & Wiper Blade
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-DRIVE WINDSHIEL | 28800-E4600 | 1 | ||||||
| 1 | ASSY-DRIVE WINDSHIEL | 28800-E8300 | 7205 | 1 | Yes | Yes | 28800-E4600 | ||
| 1 | ASSY-DRIVE WINDSHIEL | 28800-E8301 | 7206 | 7206 | 1 | Yes | Yes | 28800-E8300 | |
| 1 | ASSY-DRIVE WINDSHIEL | 28800-N3301 | 7207 | 1 | Yes | Yes | 28800-E8301 | ||
| 1 | ASSY-DRIVE WINDSHIEL | 28800-N4200 | 7409 | 7601 | 1 | No | No | 28800-N3601 | |
| 1 | ASSY-DRIVE WINDSHIEL | 28800-N4201 | 7602 | 1 | Yes | Yes | 28800-N4200 | ||
| 1 | ASSY-DRIVE WINDSHIEL | 28800-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7311 | 1 | |||
| 1 | ASSY-DRIVE WINDSHIEL | 28800-N3601 | 2 SEATER 2+2 SEAT ER | 7312 | 7408 | 1 | No | No | 28800-N3600 |
| 1 | ASSY-DRIVE WINDSHIEL | 28800-N3602 | 2 SEATER 2+2 SEAT ER | 7312 | 7408 | 1 | Yes | Yes | 28800-N3601 |
| 2 | ASSY-MOTOR WINDSHIEL | 28810-E4100 | 1 | ||||||
| 2 | ASSY-MOTOR WINDSHIEL | 28810-E8200 | 7205 | 1 | Yes | Yes | 28810-E4100 | ||
| 2 | ASSY-MOTOR WINDSHIEL | 28810-E8201 | 7206 | 7206 | 1 | Yes | Yes | 28810-E8200 | |
| 2 | ASSY-MOTOR WINDSHIEL | 28810-N3200 | 7207 | 7307 | 1 | Yes | Yes | 28810-E8201 | |
| 2 | ASSY-MOTOR WINDSHIEL | 28810-N3103 | 7312 | 7408 | 1 | 28810-N3601 | |||
| 2 | ASSY-MOTOR WINDSHIEL | 28810-N4510 | 7409 | 1 | No | No | 28810-N3601 | ||
| 2 | ASSY-MOTOR WINDSHIEL | 28810-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7311 | 1 | No | No | 28810-N3200 |
| 2 | ASSY-MOTOR WINDSHIEL | 28810-N3601 | 2 SEATER 2+2 SEAT ER | 7312 | 7408 | 1 | No | No | 28810-N3600 |
| 3 | ASSY-RELAY RESE UP | 28815-N4510 | 7603 | 1 | |||||
| 4 | ASSY-BRACKET WIPER M | 28835-E4100 | 1 | ||||||
| 5 | ASSY-ARM MOTOR | 28840-E4100 | 7406 | 1 | |||||
| 5 | ASSY-ARM MOTOR | 28840-N3600 | 7407 | 1 | 28840-E4100 | ||||
| 6 | ASSY-CONNECTING ROD | 28860-E4100 | 1 | ||||||
| 7 | ASSY-CONNECTING ROD | 28865-E4100 | 1 | ||||||
| 8 | ASSY-PIVOT NO.1 | 28870-E4600 | 1 | ||||||
| 9 | ASSY-PIVOT NO.2 | 28880-E4100 | 1 | ||||||
| 10 | BOOTS-PIVOT SHAFT | 28890-E4100 | 2 | ||||||
| 11 | SCREW-MACHINE HEX HE | 08360-62512 | 7307 | 4 | |||||
| 11 | SCREW-MACHINE HEX HE | 08360-62026 | 2 SEATER 2+2 SEAT ER | 7308 | 4 | No | No | 08360-62512 | |
| 12 | WASHER-SPECIAL 6 | 74340-12161 | 4 | ||||||
| 13 | SCREW-MACHINE HEX WI | 08360-51014 | 6 | ||||||
| 14 | ASSY-BLADE WINDSHIEL | 26370-E4100 | 7607 | 2 | |||||
| 14 | ASSY-BLADE WINDSHIEL | 26370-N4701 | 7608 | 2 | No | No | 26370-E4100 | ||
| 15 | ASSY-ARM NO.1 | 26380-E4600 | 7307 | 1 | |||||
| 15 | ASSY-ARM NO.1 | 26385-N4700 | 7608 | 1 | No | No | 26385-N3600 | ||
| 15 | ASSY-ARM NO.1 | 26385-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | |||
| 16 | ASSY-ARM NO.2 | 26385-E4600 | 7307 | 1 | |||||
| 16 | ASSY-ARM NO.2 | 26380-E4600 | 7308 | 7607 | 1 | ||||
| 16 | ASSY-ARM NO.2 | 26380-N4700 | 7608 | 1 | No | No | 26380-E4600 | ||
| 17 | COVER-WIPER MOTOR | 28836-E4100 | OP | 7307 | 1 | ||||
| 18 | NUT-LOCK | 26381-M0200 | 7607 | 2 | |||||
| 18 | NUT-LOCK | 26381-H2300 | 7608 | 2 | Yes | Yes | 26381-N4500 | ||
| 18 | NUT-LOCK | 26381-N4500 | 7608 | 2 | No | No | 26381-M0200 | ||
| 19 | JOINT CAP | 28849-N3100 | 1 |
