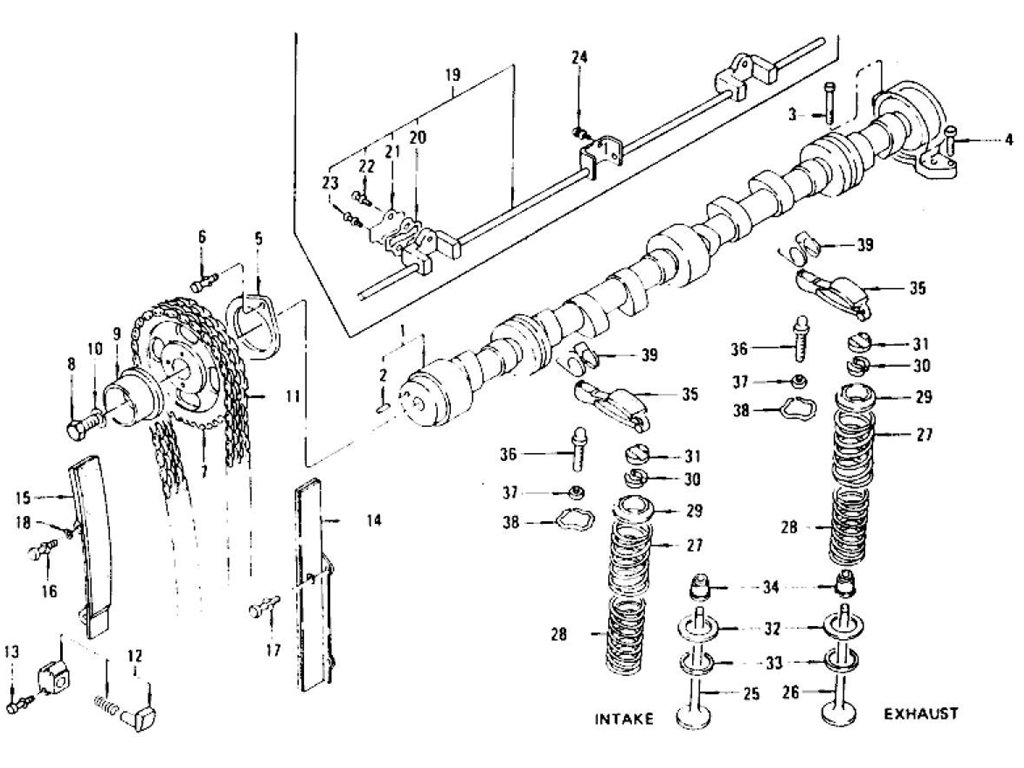

Camshaft & Valve Mechanism L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CAMSHAFT | 13001-E4101 | L24 | 1 | |||||
| 2 | DOWEL-CAMSHAFT | 13032-18000 | L24 | L26 | 1 | ||||
| 3 | BOLT-CAM BRACKET | 13058-21000 | L24 | L26 | 5 | ||||
| 4 | BOLT-CAM BRACKET | 13059-21000 | L24 | L26 | 5 | ||||
| 5 | PLATE-CAMSHAFT LOCAT | 13010-21000 | L24 | L26 | 1 | ||||
| 6 | BOLT-HEX M6X1.0 WITH | 08120-61614 | L24 | 2 | |||||
| 6 | BOLT-HEX M6X1.0 WITH | 08120-61662 | L24 | L26 | 2 | Yes | Yes | ||
| 7 | SPROCKET-CAMSHAFT | 13024-21000 | L24 | L26 | 1 | ||||
| 7 | SPROCKET-CAMSHAFT | 13024-U8000 | L24 | L26 | 1 | Yes | Yes | ||
| 8 | BOLT-CAMSHAFT | 13012-21002 | L24 | L26 | 1 | ||||
| 9 | SERVICE FILE CAM-FUEL PUMP | 13015-21002 | L24 | L26 | 1 | ||||
| 10 | WASHER-SPRING | 08915-14610 | L24 | L26 | 1 | ||||
| 11 | CHAIN-FOR CAMSHAFT ( | 13028-21000 | L24 | L26 | 1 | ||||
| 12 | TENSIONER-CHAIN | 13070-E3001 | L24 | 1 | |||||
| 12 | TENSIONER-CHAIN | 13070-E3000 | L24 | L26 | 1 | Yes | Yes | ||
| 13 | BOLT-HEX M6X10 WITH | 08120-63514 | L24 | 2 | |||||
| 13 | BOLT-HEX M6X10 WITH | 08120-63562 | L24 | L26 | 2 | Yes | Yes | ||
| 14 | GUIDE-CHAIN TENSION | 13085-21002 | L24 | L26 | 1 | ||||
| 15 | GUIDE-CHAIN SLACK SI | 13091-A3500 | L24 | L26 | 1 | ||||
| 16 | BOLT-HEX M6X1.0 WITH | 08120-61614 | L24 | 2 | |||||
| 16 | BOLT-HEX M6X1.0 WITH | 08120-61662 | L24 | L26 | 2 | Yes | Yes | ||
| 17 | BOLT-HEX M6X1.0 WITH | 08120-61414 | L24 | 2 | |||||
| 17 | BOLT-HEX M6X1.0 WITH | 08120-61462 | L24 | L26 | 2 | Yes | Yes | ||
| 18 | WASHER-PLAIN | 08915-43610 | L24 | L26 | 2 | ||||
| 19 | ASSY-OIL TUBE CAM | 13100-E3002 | L24 | 7007 | 1 | ||||
| 19 | ASSY-OIL TUBE CAM | 13100-E3004 | L24 | L26 | 1 | Yes | Yes | ||
| 19 | ASSY-OIL TUBE CAM | 13100-E3003 | L24 | L26 | 7008 | 1 | Yes | Yes | |
| 20 | PACKING-OIL TUBE CAM | 13103-E3002 | L24 | L26 | 2 | ||||
| 21 | COVER-OIL TUBE CAM | 13104-E3002 | L24 | 7007 | 2 | ||||
| 21 | COVER-OIL TUBE CAM | 13104-E3003 | L24 | L26 | 7008 | 2 | |||
| 22 | SCREW-FLAT HEAD WITH | 08320-62019 | L24 | 7007 | 2 | ||||
| 22 | SCREW-FLAT HEAD WITH | 08360-62014 | L24 | 7008 | 7307 | 2 | 08320-62019 | ||
| 22 | SCREW-WITH WASHER | 08360-62014 | L26 | 2 | No | No | 08360-02014 | ||
| 23 | SCREW-FLAT HEAD WITH | 01432-00011 | L24 | L26 | 2 | ||||
| 24 | SCREW-WITH WASHER | 08360-61214 | L24 | L26 | 1 | ||||
| 25 | VALVE-INTAKE | 13201-A1100 | L24 | L26 | 6 | ||||
| 26 | VALVE-EXHAUST | 13202-23001 | L24 | 7307 | 6 | ||||
| 26 | VALVE-EXHAUST | 13202-N0400 | L26 | 7308 | 6 | No | No | 13202-23001 | |
| 27 | SPRING-VALVE OUTER | 13203-E4100 | L24 | L26 | 12 | ||||
| 28 | SPRING-VALVE INNER | 13204-23000 | L24 | L26 | 12 | ||||
| 29 | RETAINER-VALVE SPRIN | 13209-73401 | L24 | L26 | 12 | ||||
| 29 | RETAINER-VALVE SPRIN | 13209-N6800 | L24 | L26 | 7612 | 12 | Yes | Yes | |
| 30 | COLLET-VALVE SPRING | 13210-73400 | L24 | L26 | 24 | ||||
| 30 | COLLET-VALVE SPRING | 13210-U0100 | L24 | L26 | 24 | Yes | Yes | ||
| 31 | GUIDE-ROCKER VLAVE | 13218-21000 | L24 | 12 | |||||
| 31 | GUIDE-ROCKER VLAVE | 13218-A3500 | L24 | L26 | 12 | Yes | Yes | ||
| 31 | GUIDE-ROCKER VLAVE | 13218-A3501 | L24 | L26 | 7612 | 12 | Yes | Yes | |
| 32 | SEAT-VALVE SPRING OU | 13205-14600 | L24 | L26 | 12 | ||||
| 33 | SEAT-VALVE SPRING OU | 13206-23000 | L24 | L26 | 12 | ||||
| 34 | ASSY-SEAL OIL VALVE | 13207-21002 | L24 | L26 | 12 | ||||
| 35 | ASSY-ROCKER VALVE | 13257-21000 | L24 | L26 | 12 | ||||
| 36 | PIVOT-VALVE ROCKER | 13234-21000 | L24 | L26 | 12 | ||||
| 37 | NUT-LOCK ROCKER PIVO | 13235-21001 | L24 | L26 | 12 | ||||
| 37 | NUT-LOCK ROCKER PIVO | 13235-U0100 | L24.L26 | 12 | Yes | Yes | 13235-21001 | ||
| 38 | RETAINER-ROCKER SPRI | 13255-21000 | L24 | L26 | 12 | ||||
| 38 | RETAINER-ROCKER SPRI | 13255-A8600 | L24 | L26 | 7008 | 12 | Yes | Yes | |
| 39 | SPRING-VALVE ROCKER | 13256-21003 | L24 | L26 | 12 |
