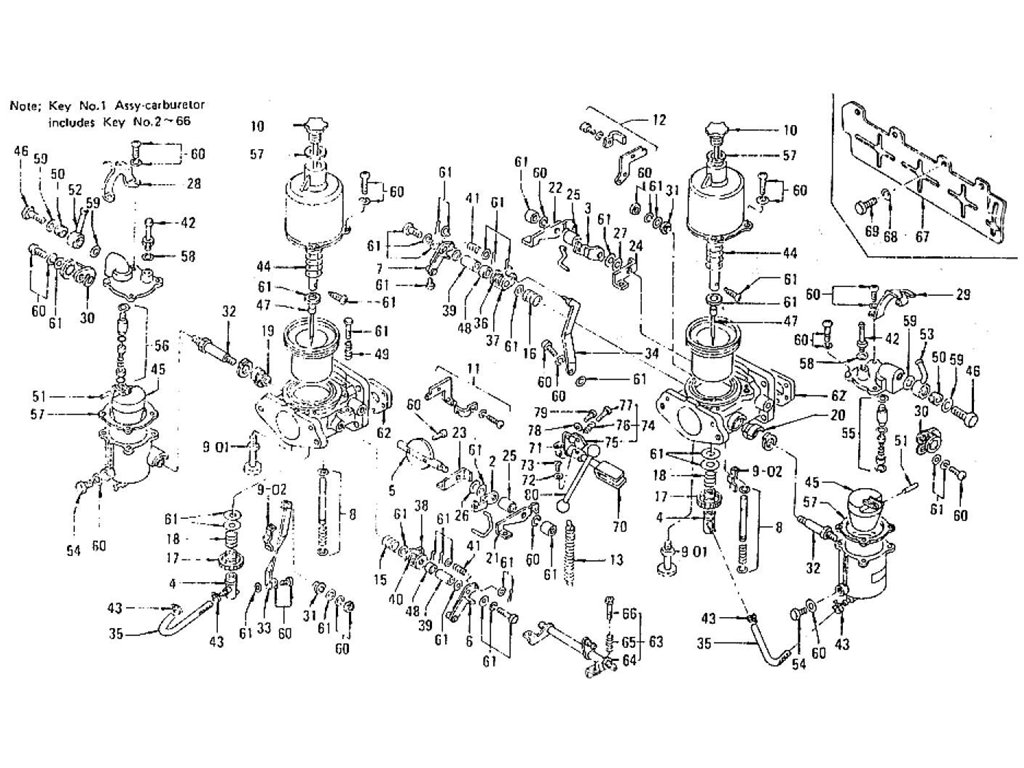

Carburetor L24 (From Sep.-'71 To Jun.-'72)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CARBURETOR | 16010-E8811 | L24 AUTOMATIC | 7109 | 7111 | 1 | |||
| 1 | ASSY-CARBURETOR | 16010-E8812 | L24 AUTOMATIC | 7112 | 7206 | 1 | Yes | Yes | 16010-E8811 |
| 1 | ASSY-CARBURETOR | 16010-E8801 | L24 MANUAL | 7109 | 7111 | 1 | |||
| 1 | ASSY-CARBURETOR FRON | 16010-N3335 | L24 AUTOMATIC | 7207 | 7307 | 1 | No | No | 16010-E8812 |
| 1 | ASSY-CARBURETOR FRON | 16010-N3330 | L24 MANUAL | 7207 | 1 | No | No | 16010-E8802 | |
| 1 | ASSY-CARBURETOR REAR | 16010-N3355 | L24 AUTOMATIC | 7207 | 7307 | 1 | No | No | 16010-E8812 |
| 1 | ASSY-CARBURETOR REAR | 16010-N3350 | L24 MANUAL | 7207 | 7307 | 1 | No | No | 16010-E8802 |
| 1 | AYY--CARBURETOR | 16010-E8802 | L24 MANUAL | 7112 | 7206 | 1 | Yes | Yes | 16010-E8801 |
| 2 | ASSY-LEVER | 16277-E8810 | L24 | 7307 | 1 | ||||
| 3 | ASSY-LEVER | 16277-E8811 | L24 | 7307 | 1 | ||||
| 4 | ASSY-NOZZLE | 16355-E8810 | L24 | 7307 | 2 | ||||
| 5 | ASSY-SHAFT | 16122-E4311 | L24 | 7206 | 2 | ||||
| 5 | ASSY-SHAFT | 16122-E8815 | L24 | 7205 | 7307 | 2 | Yes | Yes | 16122-E4311 |
| 6 | LEVER-CHOKE (F) | 16238-E8810 | L24 | 7307 | 1 | ||||
| 7 | LEVER-CHOKE (R) | 16238-E8811 | L24 | 7307 | 1 | ||||
| 8 | ASSY-LIFTER | 16324-H2310 | L24 | 7307 | 2 | ||||
| 9 | ASSY-STOPPER IDLE | 16231-25610 | L24 | 7109 | 7307 | 2 | |||
| 9 | SPRING-THROTTLE | 16231-E8810 | L24 | 7112 | 7307 | 2 | No | No | 16231-25610 |
| 10 | ASSY-NUT | 16341-25610 | L24 | 7307 | 2 | ||||
| 11 | CLAMP-CHOKE WIRE (F) | 18418-E8810 | L24 | 7307 | 1 | ||||
| 12 | CLAMP-CHOCK WIRE (R) | 18419-E8810 | L24 | 7307 | 1 | ||||
| 13 | SPRING-THROTTLE | 16194-E8810 | L24 | 7307 | 2 | ||||
| 14 | WASHER-LOCK | 16217-E8810 | L24 | 7307 | 2 | ||||
| 15 | SPRING-RETURN | 16190-H2710 | L24 | 7307 | 1 | ||||
| 16 | SPRING-RETURN | 16190-H2711 | L24 | 7307 | 1 | ||||
| 17 | NUT-ADJUST | 16144-H2311 | L24 | 7109 | 7307 | 2 | |||
| 17 | NUT-ADJUST | 16144-E8810 | L24 | 7112 | 7307 | 2 | Yes | Yes | 16144-H2311 |
| 17 | NUT-ADJUST | 16144-E8811 | L24 | 7112 | 7307 | 2 | Yes | Yes | 16144-E8810 |
| 18 | SPRING-IDLE ADJUST S | 16145-H2310 | L24 | 7307 | 2 | ||||
| 19 | ADAPTER-GUM (F) | 16227-E4310 | L24 | 7307 | 1 | ||||
| 20 | ADAPTER-GUM (R) | 16227-E4311 | L24 | 7307 | 1 | ||||
| 21 | LEVER-THROTTLE (F) | 16134-E4310 | L24 | 7307 | 1 | ||||
| 22 | LEVER-THROTTLE (R) | 16134-E4311 | L24 | 7307 | 1 | ||||
| 23 | LEVER-ADJUST (F) | 16127-E4310 | L24 | 7307 | 1 | ||||
| 24 | LEVER-ADJUST (R) | 16127-E4311 | L24 | 7307 | 1 | ||||
| 25 | SLEEVE | 16117-E4310 | L24 | 7307 | 2 | ||||
| 26 | PLATE-STOP (F) | 16147-E4312 | L24 | 7307 | 1 | ||||
| 27 | FLATE-STOP (R) | 16147-E4313 | L24 | 7307 | 1 | ||||
| 28 | PLATE-STOPPING | 16137-E3210 | L24 | 7307 | 1 | ||||
| 29 | PLATE-STOPPING | 16137-E3211 | L24 | 7307 | 1 | ||||
| 30 | BOLT-CLAMP | 16138-22010 | L24 | 7307 | 2 | ||||
| 31 | WASHER-GUM 8D | 16228-25610 | L24 | 7307 | 2 | ||||
| 32 | BOLT 8D | 16322-25610 | L24 | 7307 | 2 | ||||
| 33 | PLATE-CONNECTING (F) | 16147-25612 | L24 | 7307 | 1 | ||||
| 34 | PLATE-CONNECTING (R) | 16147-25613 | L24 | 7307 | 1 | ||||
| 35 | PIPE-FUEL | 16356-25610 | L24 | 7307 | 2 | ||||
| 36 | SPRING-CONNECTING | 16157-73410 | L24 | 7307 | 1 | ||||
| 37 | PLATE-CONNECTING (D) | 16147-73411 | L24 | 7307 | 1 | ||||
| 38 | PLATE-CONNECTING (B) | 16147-14611 | L24 | 7307 | 1 | ||||
| 39 | SLEEVE (B) | 16116-14610 | L24 | 7307 | 2 | ||||
| 40 | SPRING-CONNECTING | 16157-14610 | L24 | 7307 | 1 | ||||
| 41 | SPRING-LIFTER | 16325-10400 | L24 | 7307 | 2 | ||||
| 42 | NIPPLE-OVER FLOW | 16126-E4310 | L24 | 7307 | 2 | ||||
| 43 | CLIP | 16358-E4310 | L24 | 7307 | 4 | ||||
| 44 | SPRING-SUCTION (23) | 16346-12210 | L24 | 7307 | 2 | ||||
| 45 | FLOAT | 16061-E4310 | L24 | 7307 | 2 | ||||
| 46 | BOLT-FILTER | 16108-18010 | L24 | 7307 | 2 | ||||
| 47 | JET-NEEDLE (N-54) | 16354-E8800 | L24 | 7307 | 2 | ||||
| 47 | JET-NEEDLE (N-58) | 16354-E8810 | L24 | 7307 | 2 | ||||
| 48 | SLEEVE | 16116-H2310 | L24 | 7307 | 2 | ||||
| 49 | SPRING-THROTTLE ADJU | 16193-10400 | L24 | 7307 | 2 | ||||
| 50 | FILTER | 16098-73401 | L24 | 7307 | 2 | ||||
| 51 | SHAFT-FLOAT | 16066-25610 | L24 | 7307 | 2 | ||||
| 52 | NIPPLE-FUEL | 16111-E4310 | L24 | 7307 | 1 | ||||
| 53 | NIPPLE-FUEL | 16111-E4311 | L24 | 7307 | 1 | ||||
| 54 | PLUG-DRAIN 8D | 16031-A8710 | L24 | 7307 | 2 | ||||
| 55 | VALVE-NEEDLE 1.7D | 16101-E8810 | L24 | 7307 | 1 | ||||
| 56 | VALVE-NEEDLE 1.7D | 16101-E8811 | L24 | 7307 | 1 | ||||
| 57 | KIT-GASKET | 16455-H2310 | L24 | 7307 | 2 | ||||
| 58 | PACKING 10D | 16335-14610 | L24 | 7307 | 2 | ||||
| 59 | WASHER 12D | 16094-76500 | L24 | 7307 | 4 | ||||
| 60 | KIT(A)-SCREW | 16465-H2310 | L24 | 7307 | 2 | ||||
| 61 | KIT(B)-SCREW | 16475-E8810 | L24 | 7307 | 2 | ||||
| 62 | INSULATOR-CARBURATOR | 16174-E8800 | L24 | 7206 | 2 | ||||
| 63 | ASSY-THROTTLE SHAFT | 16380-E8800 | L24 | 7206 | 1 | ||||
| 64 | SHAFT-THROTTLE | 16381-E8800 | L24 | 7307 | 1 | ||||
| 65 | SPRING-THROTTLE ADJU | 16378-E4300 | L24 | 7307 | 2 | ||||
| 66 | SCREW-THROTTLE ADJUS | 16379-E4300 | L24 | 7307 | 2 | ||||
| 67 | PLATE-HEAT SHIELD CA | 14330-E8800 | L24 | 7206 | 1 | ||||
| 68 | WASHER-PLAIN | 08915-43610 | L24 | 7307 | 4 | ||||
| 69 | BOLT-HEX M6X1.0 | 08110-61262 | L24 | 7307 | 4 | ||||
| 70 | SHAFT-AUXILIARY THRO | 16361-E4300 | L24 | 7206 | 1 | ||||
| 71 | ARM-AUXILIARY THROTT | 16365-E4300 | L24 | 7206 | 1 | ||||
| 72 | WASHER-TOOTH LOCK | 08916-43510 | L24 | 7307 | 1 | ||||
| 73 | SCREW-M5 SHAFT FIX | 08330-51612 | L24 | 7307 | 1 | ||||
| 74 | ASSY-BRACKET ADJUST | 16375-E4300 | L24 | 7206 | 1 | ||||
| 75 | BRACKET-ADJUST SCREW | 16376-E4300 | L24 | 7307 | 1 | ||||
| 76 | SPRING-THROTTLE ADJU | 16378-E4300 | L24 | 7307 | 1 | ||||
| 77 | SCREW-THROTTLE ADJUS | 16379-E4300 | L24 | 7307 | 1 | ||||
| 78 | WASHER-SPRING | 08915-13510 | L24 | 7307 | 2 | ||||
| 79 | SCREW M5 BRACKET FIX | 08310-51212 | L24 | 7307 | 2 | ||||
| 80 | ROD-CONNECTING | 16371-E4300 | L24 | 7307 | 1 | ||||
| 81 | KIT-REPAIR B CARBURE | 16009-E8810 | L24 | 7112 | 7206 | 1 | |||
| 82 | KIT-REPAIR A CARBURE | 16009-E4310 | L24 | 7112 | 7206 | 1 | |||
| 83 | CLIP | 16358-E4310 | L24 | 7112 | 7206 | 4 | |||
| 84 | WASHER-GUM | 16228-25610 | L24 | 7112 | 7206 | 2 | |||
| 85 | PIPE-FUEL | 16356-25610 | L24 | 7112 | 7206 | 2 | |||
| 86 | KIT-SCREW & WASHER | 16475-E8810 | L24 | 7112 | 7206 | 2 | |||
| 87 | FILTER | 16098-73401 | L24 | 7112 | 7206 | 2 | |||
| 88 | VALVE-NEEDLE 1.7-DIA | 16101-E8810 | L24 | 7112 | 7206 | 2 | |||
| 89 | VALVE-NEEDLE 1.7-DIA | 16101-E8811 | L24 | 7112 | 7206 | 1 | |||
| 90 | SHAFT-FLOAT | 16066-25610 | L24 | 7112 | 7206 | 2 | |||
| 91 | JET-NEEDLE | 16354-E8810 | L24 | 7112 | 7206 | 2 | |||
| 92 | NOZZLE | 16355-E8810 | L24 | 7112 | 7206 | 2 |
