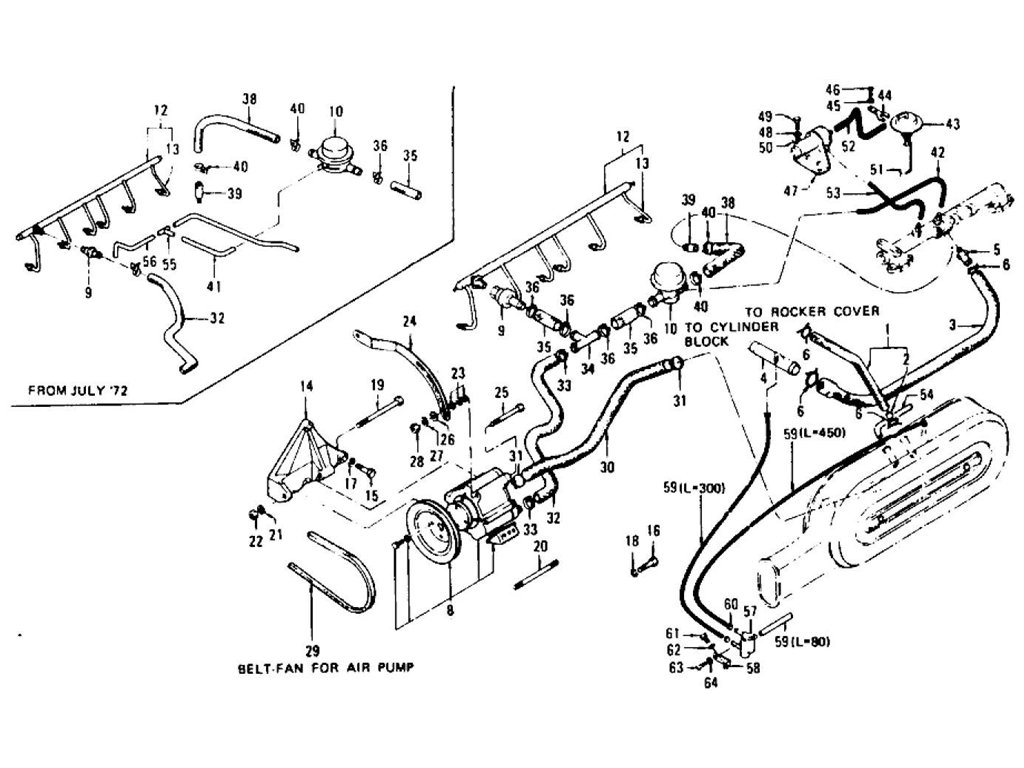

Emission Control Device L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HOSE-ROCKER COVER TO | 11826-E4600 | L24 CRANK | 7206 | 1 | ||||
| 1 | HOSE-ROCKER COVER TO | 11826-N3300 | L24 | L26 | 7207 | 1 | No | No | |
| 2 | ASSY-FLAME ARRESTER | 15296-E4600 | L24 | 1 | |||||
| 2 | ASSY-FLAME ARRESTER | 15296-N4200 | L24 | 7307 | 1 | Yes | Yes | 15296-E4600 | |
| 3 | HOSE-PIPE CONNECTOR | 11828-E4100 | L24 CRANK | 7012 | 1 | ||||
| 3 | HOSE-PIPE CONNECTOR | 11828-E4620 | L24 CRANK | 7101 | 1 | No | No | 11828-E4100 | |
| 3 | HOSE-PIPE CONNECTOR | 11828-N3300 | L24 CRANK | 7207 | 1 | Yes | Yes | 11828-E4620 | |
| 3 | HOSE-PIPE CONNECTOR | 11828-N3601 | L26 | 7308 | 1 | No | No | 11828-N3300 | |
| 4 | CONNECTOR-PIPE | 11830-E3000 | L24 CRANK | 1 | |||||
| 4 | CONNECTOR-PIPE | 11830-S0401 | L24 CRANK | 7207 | 7307 | 1 | No | No | 11830-E3000 |
| 4 | CONNECTOR-PIPE | 11830-N3600 | L26 | 7308 | 1 | No | No | 11830-S0401 | |
| 4 | CONNECTOR-PIPE | 11830-E4600 | OP L24 CRANK | 1 | |||||
| 5 | ASSY-CONTROL VALVE C | 11810-E3000 | L24 | L26 CRANK | 1 | ||||
| 6 | CLAMP-HOSE | 16572-10801 | L24 | L26 | 3 | ||||
| 6 | CLAMP-HOSE | 16572-44200 | L24 | L26 | 1 | ||||
| 7 | CLAMP-HOSE | 24220-B5020 | L26 | 7308 | 1 | ||||
| 8 | ASSY-AIR PUMP W/PULL | 14800-E4605 | OP L24 EXHAUST | 7108 | 1 | ||||
| 8 | ASSY-AIR PUMP W/PULL | 14800-E8000 | OP L24 EXHAUST | 7109 | 1 | No | No | 14800-E4605 | |
| 8 | ASSY-AIR PUMP W/PULL | 14800-N3610 | OP L26 EXHAUST | 7308 | 1 | No | No | 14800-E8000 | |
| 8 | ASSY-AIR PUMP WITH P | 14800-E4600 | L24 EXHAUST | 7307 | 1 | ||||
| 8 | ASSY-AIR PUMP WITH P | 14800-N3600 | L26 EXHAUST | 7308 | 1 | No | No | 14800-E4600 | |
| 9 | ASSY-VALVE CHECK | 14830-23001 | L24 EXHAUST | 7206 | 1 | ||||
| 9 | ASSY-VALVE CHECK | 14830-N3300 | L24 | L26 EXHAUST | 7207 | 1 | Yes | Yes | |
| 10 | ASSY-AB VALVE | 14835-25601 | L24 EXHAUST | 7206 | 1 | ||||
| 10 | ASSY-AB VALVE | 14835-N3301 | L24 | L26 EXHAUST | 7207 | 1 | Yes | Yes | |
| 11 | ORIFICE-AB VALVE | 14889-23000 | L24 | L26 EXHAUST | 1 | ||||
| 12 | ASSY-PIPE AIR GALLER | 14820-E4600 | L24 EXHAUST | 1 | |||||
| 12 | ASSY-PIPE AIR GALLER | 14820-N3600 | L26 EXHAUST | 7308 | 1 | No | No | 14820-E4600 | |
| 12 | ASSY-PIPE AIR GALLER | 14820-N3601 | L26 EXHAUST | 7308 | 1 | Yes | Yes | 14820-N3600 | |
| 13 | PIPE-AIR INJECTION | 14825-23000 | L24 | L26 EXHAUST | 6 | ||||
| 14 | BRACKET-AIR PUMP | 14840-E4600 | L24 | L26 EXHAUST | 1 | ||||
| 14 | BRACKET-AIR PUMP FRO | 14839-E4600 | OP L24 EXHAUST | 1 | |||||
| 14 | BRACKET-AIR PUMP REA | 14840-E4601 | OP L24 EXHAUST | 1 | |||||
| 15 | BOLT-HEX M10X1.5 BRK | 11716-E3000 | L24 | L26 EXHAUST | 3 | ||||
| 16 | BOLT-HEX M8X1.25 COM | 11716-21000 | OP L24 EXHAUST | 2 | |||||
| 17 | WASHER-SPRING LOCK B | 08915-14010 | L24 | L26 EXHAUST | 3 | ||||
| 18 | WASHER-SPRING LOCK C | 08915-13810 | OP L24 EXHAUST | 2 | |||||
| 19 | BOLT-HEX M8X1.25 BRA | 14842-E4600 | L24 | L26 EXHAUST | 1 | ||||
| 19 | BOLT-HEX M8X1.25 BRA | 14842-N3611 | OP L26 EXHAUST | 1 | |||||
| 20 | STUD-AIR PUMP FIX | 14842-E4601 | OP L24 EXHAUST | 1 | |||||
| 21 | WASHER-SPRING LOCK B | 08915-13810 | L24 | L26 EXHAUST | 1 | ||||
| 22 | NUT HEX M8X1.25 BRAC | 08911-20810 | L24 | L26 EXHAUST | 1 | ||||
| 23 | SHIM-ALTERNATOR | 11713-21000 | L24 | L26 EXHAUST | 0 | ||||
| 23 | SHIM-ALTERNATOR | 11713-21001 | L24 | L26 EXHAUST | 0 | ||||
| 24 | BAR-ADJUSTING AIR PU | 14841-E4600 | L24 | L26 EXHAUST | 1 | ||||
| 24 | BAR-ADJUSTING AIR PU | 14841-E4601 | OP L24 EXHAUST | 7307 | 1 | ||||
| 24 | BAR-ADJUSTING AIR PU | 14841-N3610 | OP L26 EXHAUST | 7308 | 1 | No | No | 14841-E4601 | |
| 25 | BOLT-HEX M8X1.25 ADJ | 14842-E4602 | L24 | L26 EXHAUST | 1 | ||||
| 26 | WASHER-PLAIN ADJUSTI | 08915-53810 | L24 | L26 EXHAUST | 1 | ||||
| 27 | WASHER-SPRING LOCK A | 08915-13810 | L24 | L26 EXHAUST | 1 | ||||
| 28 | NUT-HEX M8X1.25 ADJU | 08911-10810 | L24 | L26 EXHAUST | 1 | ||||
| 29 | ASSY-BELT FAN FOR AI | 11720-25604 | L24 | L26 EXHAUST | 1 | ||||
| 29 | ASSY-BELT FAN FOR AI | 14853-N3610 | OP L26 EXHAUST | 1 | |||||
| 30 | HOSE-AIR CLEANER TO | 14860-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 30 | HOSE-AIR CLEANER TO | 14860-N3300 | L24 EXHAUST | 7207 | 7307 | 1 | No | No | 14860-E4600 |
| 30 | HOSE-AIR CLEANER TO | 14860-N3600 | L26 EXHAUST | 7308 | 1 | No | No | 14860-N3300 | |
| 30 | HOSE-AIR CLEANER TO | 14860-E4611 | OP L24 EXHAUST | 7307 | 1 | ||||
| 30 | HOSE-AIR CLEANER TO | 14860-N3611 | OP L26 EXHAUST | 7308 | 1 | No | No | 14860-E4611 | |
| 31 | CLAMP-HOSE | 08723-13000 | L24 EXHAUST | 7307 | 2 | ||||
| 31 | CLAMP-HOSE | 01557-00051 | L26 EXHAUST | 7308 | 2 | No | No | 08723-13000 | |
| 32 | HOSE-AIR PUMP TO CON | 14861-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 32 | HOSE-AIR PUMP TO CON | 14861-N3301 | L24 EXHAUST | 7207 | 7307 | 1 | No | No | 14861-E4600 |
| 32 | HOSE-AIR PUMP TO CON | 14861-N3601 | L26 EXHAUST | 7308 | 1 | No | No | 14861-N3301 | |
| 32 | HOSE-AIR PUMP TO CON | 14861-N3602 | L26 EXHAUST | 7308 | 1 | Yes | Yes | 14861-N3601 | |
| 32 | HOSE-AIR PUMP TO CON | 14861-E4610 | OP L24 EXHAUST | 7307 | 1 | ||||
| 32 | HOSE-AIR PUMP TO CON | 14861-N3612 | OP L26 | 7308 | 1 | No | No | 14861-E6100 | |
| 32 | HOSE-AIR PUMP TO CON | 14861-N3613 | OP L26 | 7308 | 1 | Yes | Yes | 14861-N3612 | |
| 33 | CLAMP-HOSE | 08723-12400 | L26 EXHAUST | 7308 | 2 | ||||
| 34 | CONNECTOR THREE WAY | 14874-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 35 | HOSE-AIR CLEANER TO | 14862-N3300 | L24 | L26 EXHAUST | 7207 | 1 | No | No | |
| 35 | HOSE-CONNECTOR TO AI | 14862-E4600 | L24 EXHAUST | 7206 | 2 | ||||
| 36 | CLAMP-HOSE | 08723-12400 | L24 EXHAUST | 7307 | 6 | ||||
| 36 | CLAMP-HOSE | 08723-12600 | L26 EXHAUST | 7308 | 1 | No | No | 08723-12400 | |
| 37 | CLAMP-HOSE | 01557-00061 | L26 EXHAUST | 7308 | 1 | ||||
| 38 | HOSE-AB VALV TO CONN | 14863-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 38 | HOSE-AB VALVE TO CON | 14863-N3301 | L24 | 7207 | 1 | No | No | 14863-N3300 | |
| 39 | CONNECTOR | 14054-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 39 | CONNECTOR | 14054-N3305 | L24 | L26 EXHAUST | 7207 | 1 | Yes | Yes | |
| 40 | CLAMP-HOSE | 08723-12200 | L24 | L26 EXHAUST | 2 | ||||
| 41 | TUBE-AB VALVE TO 3 W | 14917-N3300 | L24 EXHAUST | 7207 | 7307 | 1 | |||
| 41 | TUBE-AB VALVE TO 3 W | 22318-N3604 | L26 EXHAUST | 7308 | 1 | ||||
| 42 | HOSE-VACUUM | 14959-H3900 | L24 EXHAUST | 7207 | 1 | No | No | 14866-14700 | |
| 42 | HOSE-VACUUM | B2318-73002 | L24 | L26 EXHAUST | 0 | Yes | Yes | ||
| 42 | HOSE-VACUUM MANIFOLD | 14866-14700 | L24 EXHAUST | 7206 | 1 | ||||
| 43 | ASSY-SERVO DIAPHRAGM | 14915-E4601 | L24 EXHAUST | 1 | |||||
| 43 | ASSY-SERVO DIAPHRAGM | 14915-E4602 | L24 EXHAUST | 7206 | 1 | Yes | Yes | 14915-E4601 | |
| 43 | ASSY-SERVO DIAPHRAGM | 14915-N3300 | L24 EXHAUST | 7207 | 1 | No | No | 14915-E4602 | |
| 43 | ASSY-SERVO DIAPHRAGM | 14915-N3301 | L24 | L26 EXHAUST | 7207 | 1 | Yes | Yes | |
| 44 | BRACKET-SERVO DIAPHR | 14916-E4601 | L24 EXHAUST | 7007 | 1 | ||||
| 44 | BRACKET-SERVO DIAPHR | 14916-E4602 | L24 EXHAUST | 7008 | 7206 | 1 | 14916-E4601 | ||
| 44 | BRACKET-SERVO DIAPHR | 14916-N3301 | L24 | L26 EXHAUST | 7207 | 1 | No | No | |
| 45 | WASHER-TOOTH | 08916-43610 | L24 EXHAUST | 7206 | 2 | ||||
| 46 | SCREW-MACHINE | 08320-61212 | L24 EXHAUST | 7206 | 2 | ||||
| 46 | SCREW-MACHINE | 01436-00052 | L24 EXHAUST | 7207 | 2 | 08320-61212 | |||
| 47 | ASSY-CONTROL VALVE | 14920-E4701 | L24 EXHAUST AUTOM ATIC | 7206 | 1 | ||||
| 47 | ASSY-CONTROL VALVE | 14920-E4702 | L24 EXHAUST AUTOM ATIC | 7207 | 1 | Yes | Yes | 14920-E4701 | |
| 47 | ASSY-CONTROL VALVE | 14920-N3310 | L24 EXHAUST AUTOM ATIC | 7207 | 1 | No | No | 14920-E4701 | |
| 47 | ASSY-CONTROL VALVE | 14920-N3311 | L24 EXHAUST AUTOM ATIC | 7207 | 7307 | 1 | Yes | Yes | 14920-N3310 |
| 47 | ASSY-CONTROL VALVE | 14920-E4600 | L24 EXHAUST MANUA L | 1 | |||||
| 47 | ASSY-CONTROL VALVE | 14920-E4601 | L24 EXHAUST MANUA L | 1 | Yes | Yes | 14920-E4600 | ||
| 47 | ASSY-CONTROL VALVE | 14920-E8800 | L24 EXHAUST MANUA L | 7206 | 1 | Yes | Yes | 14920-E4601 | |
| 47 | ASSY-CONTROL VALVE | 14920-E8801 | L24 EXHAUST MANUA L | 7206 | 1 | Yes | Yes | 14920-E8800 | |
| 47 | ASSY-CONTROL VALVE | 14920-N3300 | L24 EXHAUST MANUA L | 7207 | 7307 | 1 | No | No | 14920-E8800 |
| 47 | ASSY-CONTROL VALVE | 14920-N3301 | L24 EXHAUST MANUA L | 7207 | 7307 | 1 | Yes | Yes | 14920-N3300 |
| 47 | ASSY-CONTROL VALVE | 14920-N3600 | L26 EXHAUST MANUA L | 7308 | 1 | No | No | 14920-N3301 | |
| 48 | WASHER-SPRING | 08915-13610 | L24 EXHAUST | 2 | |||||
| 48 | WASHER-SPRING | 08915-43410 | L26 EXHAUST MANUA L | 7308 | 2 | No | No | 08915-13610 | |
| 49 | BOLT-HEX M6 | 01436-00052 | L26 EXHAUST MANUA L | 4 | Yes | Yes | 08120-61262 | ||
| 49 | BOLT-HEX M6 | 08120-61262 | L26 EXHAUST MANUA L | 7308 | 4 | No | No | 08120-61210 | |
| 49 | BOLT-HEX M6X40 | 08120-61210 | L24 EXHAUST | 2 | |||||
| 50 | WASHER-PLAIN FOR SER | 08915-13410 | L24 EXHAUST | 2 | |||||
| 51 | PIN-COTTON SPLIT FOR | 00921-11010 | L24 EXHAUST | 1 | |||||
| 51 | PIN-COTTON SPLIT FOR | 00921-11010 | L26 EXHAUST MANUA L | 7308 | 1 | ||||
| 52 | TUBE-C/V SERVO DIAPH | 22318-N3606 | L26 EXHAUST MANUA L | 7308 | 1 | ||||
| 52 | TUBE-C/V TO SERVO DI | B2318-N3300 | L24 EXHAUST | 7207 | 1 | Yes | Yes | 14917-E4600 | |
| 52 | TUBE-CONTROL VALVE T | 14917-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 53 | TUBE-MAIN TO CONTROL | 14922-E4600 | L24 EXHAUST | 7206 | 1 | ||||
| 53 | TUBE-MANIF TO CNTRL | B2318-N3300 | L24 EXHAUST | 7207 | 1 | Yes | Yes | 14922-E4600 | |
| 53 | TUBE-MANIFOLD TO CON | 22318-N3601 | L26 EXHAUST MANUA L | 7308 | 1 | ||||
| 54 | TUBE-C/V TO AIR CLEA | B2318-N3300 | L24 EVAPO | 7207 | 1 | ||||
| 54 | TUBE-C/V TO AIR CLEA | 22318-N3602 | L26 EVAPO MANUAL | 7308 | 1 | ||||
| 55 | CONNECTOR-3 WAY | 14960-H3900 | L24 | L26 EXHAUST | 7207 | 1 | |||
| 56 | TUBE-MANIFOLD TO 3 W | 14917-N3301 | L24 | L26 EXHAUST | 7207 | 7307 | 1 | ||
| 56 | TUBE-MANIFOLD TO 3 W | 22318-N3605 | L26 EXHAUST | 7308 | 1 | No | No | 14917-N3301 | |
| 57 | ASSY-FLOW GUIDE VALV | 14910-E4600 | L24 EVAPO | 1 | |||||
| 57 | ASSY-FLOW GUIDE VALV | 14910-E8300 | L24 EVAPO | 1 | Yes | Yes | 14910-E4600 | ||
| 57 | ASSY-FLOW GUIDE VALV | 14910-E8800 | L24 EVAPO | 7204 | 1 | Yes | Yes | 14910-E8300 | |
| 57 | ASSY-FLOW GUIDE VALV | 14910-N3302 | L24 EVAPO | 7206 | 1 | Yes | Yes | 14910-N3301 | |
| 57 | ASSY-FLOW GUIDE VALV | 14910-E8801 | L24 EVAPO | 7205 | 7206 | 1 | Yes | Yes | 14910-E8800 |
| 57 | ASSY-FLOW GUIDE VALV | 14910-N3300 | L24 EVAPO | 7207 | 1 | No | No | 14910-E8801 | |
| 57 | ASSY-FLOW GUIDE VALV | 14910-N3301 | L24 EVAPO | 7207 | 1 | Yes | Yes | 14910-N3300 | |
| 57 | ASSY-FLOW GUIDE VALV | 14910-N3303 | L24 EVAPO | 7207 | 7307 | 1 | Yes | Yes | 14910-N3302 |
| 57 | ASSY-FLOW GUIDE VALV | 14910-N3304 | L24 EVAPO | 7207 | 7307 | 1 | Yes | Yes | 14910-N3303 |
| 57 | ASSY-FLOW GUIDE VALV | 14910-N3305 | L24 EVAPO | 7207 | 7307 | 1 | Yes | Yes | 14910-N3303 |
| 58 | BRACKET-FLOW GUIDE V | 14914-E4600 | L24 EVAPO | 7307 | 1 | ||||
| 59 | TUBE-EVAPO CONTROL | 14912-A5502 | L24 EVAPO | 7206 | 1 | Yes | Yes | 14912-A7700 | |
| 59 | TUBE-EVAPO CONTROL | 14913-E4601 | L24 EVAPO | 7307 | 1 | Yes | Yes | 14913-E4600 | |
| 59 | TUBE-EVAPO CONTROL | 14912-S0400 | L24 EVAPO | 7207 | 1 | No | No | 14912-A5502 | |
| 59 | TUBE-EVAPO CONTROL L | 14911-A5500 | L24 EVAPO | 1 | |||||
| 59 | TUBE-EVAPO CONTROL L | 14912-A7700 | L24 EVAPO | 1 | |||||
| 59 | TUBE-EVAPO CONTROL L | 14913-E4600 | L24 EVAPO | 1 | |||||
| 60 | CLAMP-HOSE | 16439-A0602 | L24 EVAPO | 4 | |||||
| 61 | BOLT-HEX M6 BODY FIX | 08110-61210 | L24 EVAPO | 7307 | 1 | ||||
| 62 | WASHER-SPRING BODY F | 08915-13610 | L24 EVAPO | 7307 | 1 | ||||
| 63 | SCREW-M6X1.0 BRACKET | 08310-61012 | L24 EVAPO | 7307 | 1 | ||||
| 64 | WASHER-SPRING BRACKE | 08915-13610 | L24 EVAPO | 7307 | 1 |
