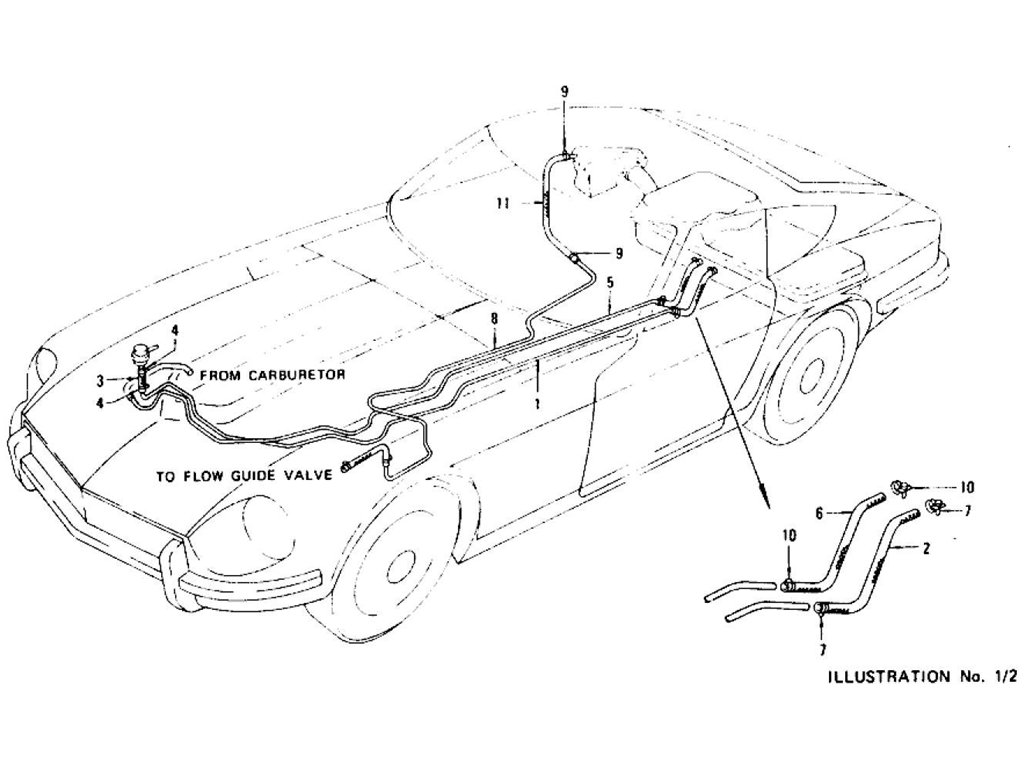

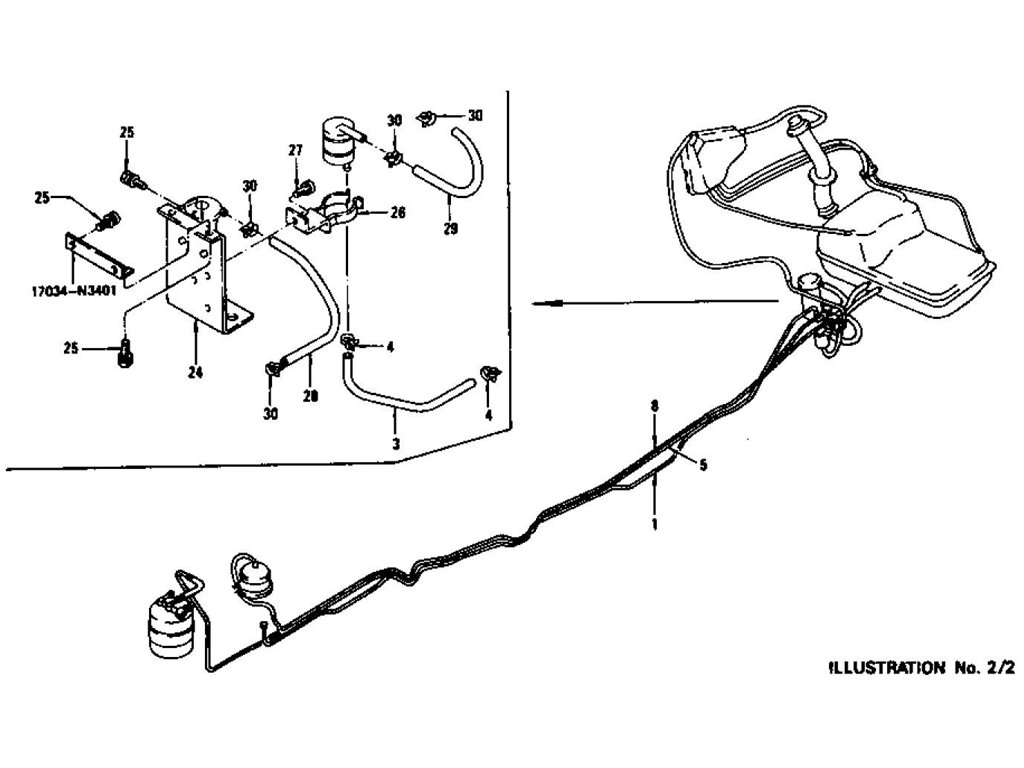

Fuel Piping L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | TUBE-FUEL TANK TO ST | 17501-N3001 | 2 SEATER | 7308 | 7408 | 1 | No | No | 17501-N3000 |
| 1 | TUBE-FUEL TANK TO ST | 17501-N3602 | 2 SEATER | 7308 | 7408 | 1 | Yes | Yes | 17501-N3001 |
| 1 | TUBE-FUEL TANK TO ST | 17501-N4500 | 2 SEATER | 7409 | 1 | No | No | 17501-N3602 | |
| 1 | TUBE-FUEL TANK TO ST | 17501-N4100 | 2+2 SEATER | 7310 | 7408 | 1 | |||
| 1 | TUBE-FUEL TANK TO ST | 17501-N4102 | 2+2 SEATER | 7310 | 7408 | 1 | Yes | Yes | 17501-N4100 |
| 1 | TUBE-FUEL TANK TO ST | 17501-N4520 | 2+2 SEATER | 7409 | 1 | ||||
| 1 | TUBE-FUEL TANK TO ST | 17501-E4101 | L24 | 7206 | 1 | ||||
| 1 | TUBE-FUEL TANK TO ST | 17501-N3000 | L24 | 7207 | 7307 | 1 | No | No | 17501-E4101 |
| 2 | HOSE-FUEL TANK TO ST | 17547-N3410 | L26 | 7308 | 1 | ||||
| 2 | TUBE-FLEXIBLE TANK T | 08742-20030 | L24 | 1 | Yes | Yes | 17505-E4100 | ||
| 2 | TUBE-FLEXIBLE TANK T | 17505-E4100 | L24 | 1 | |||||
| 3 | TUBE-FLEXIBLE TUBE T | 08742-20030 | L24 | 1 | Yes | Yes | 17506-E4100 | ||
| 3 | TUBE-FLEXIBLE TUBE T | 17506-E4100 | L24 | 1 | |||||
| 4 | CLAMP-HOSE | 16439-A0601 | L24 | 2 | |||||
| 4 | CLAMP-HOSE | 16439-22100 | L24 | EVAPO | 2 | Yes | Yes | ||
| 4 | CLAMP-HOSE | 08723-11400 | L24 | L26 | 2 | Yes | Yes | ||
| 5 | TUBE-FUEL RETURN | 17510-E4101 | L24 | 7307 | 1 | ||||
| 5 | TUBE-FUEL RETURN | 17510-N3000 | L24 | 7207 | 7307 | 1 | 17510-E4101 | ||
| 5 | TUBE-RETURN | 17510-N3201 | 2 SEATER | 7308 | 7408 | 1 | |||
| 5 | TUBE-RETURN | 17510-N3600 | 2 SEATER | 7308 | 7408 | 1 | Yes | Yes | 17510-N3201 |
| 5 | TUBE-RETURN | 17510-N4500 | 2 SEATER | 7409 | 1 | No | No | 17510-N3201 | |
| 5 | TUBE-RETURN | 17510-N3700 | 2+2 SEATER | 7310 | 7408 | 1 | |||
| 5 | TUBE-RETURN | 17510-N4100 | 2+2 SEATER | 7310 | 7408 | 1 | Yes | Yes | 17510-N3700 |
| 5 | TUBE-RETURN | 17510-N4520 | 2+2 SEATER | 7409 | 1 | No | No | 17510-N4100 | |
| 6 | TUBE-FLEXIBLE TUBE T | 08742-20030 | L24 | 7307 | 1 | Yes | Yes | 17508-E4100 | |
| 6 | TUBE-FLEXIBLE TUBE T | 17508-E4100 | L24 | 1 | |||||
| 7 | CLAMP-HOSE | 08723-11100 | L24 | 7307 | 4 | ||||
| 7 | CLAMP-HOSE | 08723-11600 | L26 | 7308 | 4 | ||||
| 8 | ASSY-TUBE | 17361-N3002 | L26 | 7308 | 7408 | 1 | |||
| 8 | ASSY-TUBE | 17361-N3400 | L26 | 7308 | 7408 | 1 | Yes | Yes | 17361-N3002 |
| 8 | TUBE-AIR SUPPLIER | 17520-N3000 | L24 | 7207 | 7307 | 1 | No | No | 17520-E4601 |
| 8 | TUBE-AIR SUPPLIER | 17520-E4601 | L24 | EVAPO | 7206 | 1 | |||
| 8 | TUBE-EVAPO | 17361-N4500 | L26 | EVAPO 2 SEATE R | 7409 | 1 | |||
| 8 | TUBE-EVAPO | 17361-N4520 | L26 | EVAPO 2+2 SEA TER | 7409 | 1 | |||
| 9 | CLAMP-HOSE | 08723-11400 | L24 | EVAPO | 2 | ||||
| 9 | CLAMP-HOSE | 16439-22100 | L24 | EVAPO | 7206 | 2 | Yes | Yes | |
| 10 | CLAMP-HOSE | 08723-11500 | L24 | 7307 | 3 | ||||
| 11 | HOSE-AIR SUPPLIER | 17240-E4601 | L24 | EVAPO | 7106 | 1 | |||
| 12 | CLAMP-TUBE | 17551-N4500 | 7409 | 2 | |||||
| 13 | CLAMP-TUBE | 17552-N4500 | 7409 | 2 | |||||
| 14 | CLAMP-TUBE | 17553-N4500 | 7409 | 5 | |||||
| 15 | CLAMP-TUBE | 17554-N4500 | 7409 | 2 | |||||
| 16 | CLAMP-TUBE | 46352-N4500 | 7409 | 3 | |||||
| 17 | CLAMP-TUBE | 17558-N4500 | 7409 | 1 | |||||
| 18 | RUBBER-CLAMP TUBE | 17561-N4500 | 7409 | 7 | |||||
| 19 | RUBBER-CLAMP TUBE | 17563-N4500 | 7409 | 4 | |||||
| 20 | RUBBER-CLAMP TUBE | 46361-E4600 | 7409 | 3 | |||||
| 21 | CLAMP-TUBE RUBBER | 17555-N4500 | 7409 | 1 | |||||
| 22 | SCREW-MACHINE | 08360-61414 | 7409 | 15 | |||||
| 23 | RUBBER-CLAMP TUBE | 17561-N4500 | 7409 | 1 | |||||
| 24 | ASSY-BRACKET | 17033-N3402 | L24 | L26 | 7309 | 7408 | 1 | ||
| 24 | ASSY-BRACKET | 17033-N4311 | L26 | 7409 | 1 | ||||
| 25 | BOLT | 08360-81426 | 7408 | 5 | |||||
| 25 | BOLT | 08912-70810 | 7409 | 7 | No | No | 08360-81426 | ||
| 26 | ASSY-BRACKET | 16419-N3411 | 1 | ||||||
| 27 | SCREW-WITH WASHER | 08310-61014 | 1 | ||||||
| 28 | HOSE-FUEL TUBE TO PU | 08742-20030 | 1 | ||||||
| 29 | HOSE-FUEL | 17546-N3411 | 1 | ||||||
| 30 | CLAMP-HOSE | 08723-11600 | 4 |
