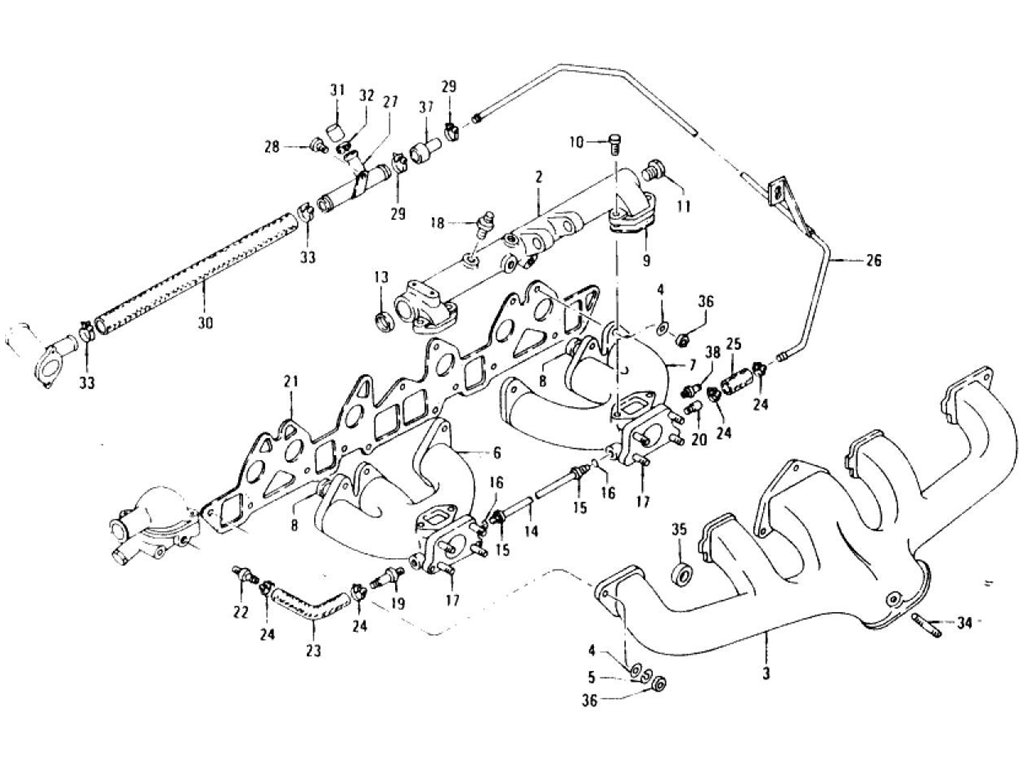

Manifold L24, L26 (To Jun.-'72)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-INTAKE MANIFOLD | 14002-E4600 | L24 | 7307 | 1 | ||||
| 2 | TUBE-BALANCE | 14008-E4601 | L24 | 7206 | 1 | ||||
| 3 | MANIFOLD-EXHAUST | 14004-E4600 | L24 | 7206 | 1 | ||||
| 4 | WASHER-PLAIN | 08915-53810 | L24 | 7307 | 6 | ||||
| 5 | WASHER-SPRING | 08915-13810 | L24 | 7307 | 1 | ||||
| 6 | MANIFOLD-INTAKE FRON | 14003-E4600 | L24 | 7108 | 1 | ||||
| 6 | MANIFOLD-INTAKE FRON | 14003-E8800 | L24 | 7109 | 7307 | 1 | No | No | 14003-E4600 |
| 7 | MANIFOLD-INTAKE REAR | 14003-E4601 | L24 | 7108 | 1 | ||||
| 7 | MANIFOLD-INTAKE REAR | 14003-E8801 | L24 | 7109 | 7307 | 1 | No | No | 14003-E4601 |
| 8 | PLUG-WELCH 20 | 00933-12000 | L24 | 7307 | 2 | ||||
| 9 | GASKET-BALANCE TUBE | 14009-73400 | L24 | 7307 | 2 | ||||
| 10 | BOLT-HEX BALANCE TUB | 08110-62014 | L24 | 4 | |||||
| 10 | BOLT-HEX BALANCE TUB | 08110-62262 | L24 | 7307 | 4 | Yes | Yes | 08110-62014 | |
| 11 | PLUG-TAPER 1/4-19 | 08931-30410 | L24 | 7307 | 1 | ||||
| 12 | BUSH-AUXILIARY SHAFT | 14016-14600 | L24 | 7307 | 2 | ||||
| 13 | PLUG-WELCH 20 | 00933-12000 | L24 | 7307 | 1 | ||||
| 14 | TUBE-WATER | 14011-E4100 | L24 | 7307 | 1 | ||||
| 15 | NUT-CONNECTING WATER | 14012-E4100 | L24 | 7307 | 2 | ||||
| 16 | RING-RUBER WATER TUB | 14013-73400 | L24 | 7307 | 2 | ||||
| 17 | STUD-CARBURETOR FIX | 08213-84210 | L24 | 7307 | 8 | ||||
| 18 | CONNECTOR-STRAIGHT | 14875-A3000 | L24 | 7307 | 2 | ||||
| 19 | CONNECTOR-HOSE MANIF | 14875-25600 | L24 | 1 | |||||
| 19 | CONNECTOR-HOSE MANIF | 14875-A7700 | L24 | 7307 | 1 | Yes | Yes | 14875-25600 | |
| 20 | CONNECTOR-WATER | 14054-E4600 | L24 | 7307 | 1 | ||||
| 21 | ASSY-GASKET MANIFOLD | 14035-E4601 | L24 | 7307 | 1 | ||||
| 22 | CONNECTOR-HOSE MANIF | 14875-25600 | L24 | 1 | |||||
| 22 | CONNECTOR-HOSE MANIF | 14875-A7700 | L24 | 7307 | 1 | Yes | Yes | 14875-25600 | |
| 23 | HOSE-WATER | 14052-E4101 | L24 | 7307 | 1 | ||||
| 24 | CLAMP-HOSE | 08723-12200 | L24 | 7307 | 5 | ||||
| 25 | HOSE-WATER | 14055-E3000 | L24 | 7307 | 1 | ||||
| 26 | ASSY-PIPE MANIFOLD T | 14053-E4101 | L24 | 7108 | 1 | ||||
| 26 | ASSY-PIPE MANIFOLD T | 14053-E8800 | L24 | 7109 | 7307 | 1 | No | No | 14053-E4101 |
| 27 | CONNECTOR-3WAY | 14051-E5600 | L24 | 7307 | 1 | ||||
| 28 | BOLT-HEX M6X1.0 | 08110-61214 | L24 | 1 | |||||
| 28 | BOLT-HEX M6X1.0 | 08110-61262 | L24 | 7307 | 1 | Yes | Yes | 08110-61214 | |
| 28 | BOLT-HEX M6X1.0 | 08110-61400 | L24 | 7307 | 1 | ||||
| 29 | CLAMP-HOSE | 08723-12800 | L24 | 7307 | 2 | ||||
| 30 | HOSE-WATER INLET TO | 14056-E3001 | L24 | 7307 | 1 | ||||
| 30 | HOSE-WATER INLET TO | 14056-P0300 | L24 | 7207 | 7307 | 1 | |||
| 31 | CAP-CONNECTOR | 14058-25500 | L24 | 7307 | 1 | ||||
| 32 | CLAMP-HOSE | 21505-78500 | L24 | 7307 | 1 | ||||
| 33 | CLAMP-HOSE | 08723-12800 | L24 | 7307 | 2 | ||||
| 34 | STUD-HEX M8X1.25 TUB | 08213-82810 | L24 | 7307 | 3 | ||||
| 34 | STUD-HEX TUBE FIXING | 14064-E3000 | L24 | 7307 | 3 | ||||
| 35 | YOKE-MANIFOLD | 14037-32200 | L24 | 7307 | 6 | ||||
| 36 | NUT-HEX | 08911-10810 | L24 | 7307 | 17 | ||||
| 37 | HOSE-PIPE TO CONNECT | 14054-E3001 | L24 | 7307 | 1 | ||||
| 38 | ASSY-THERMO MANIF WA | 14100-E8850 | L24 | 7307 | 1 |
