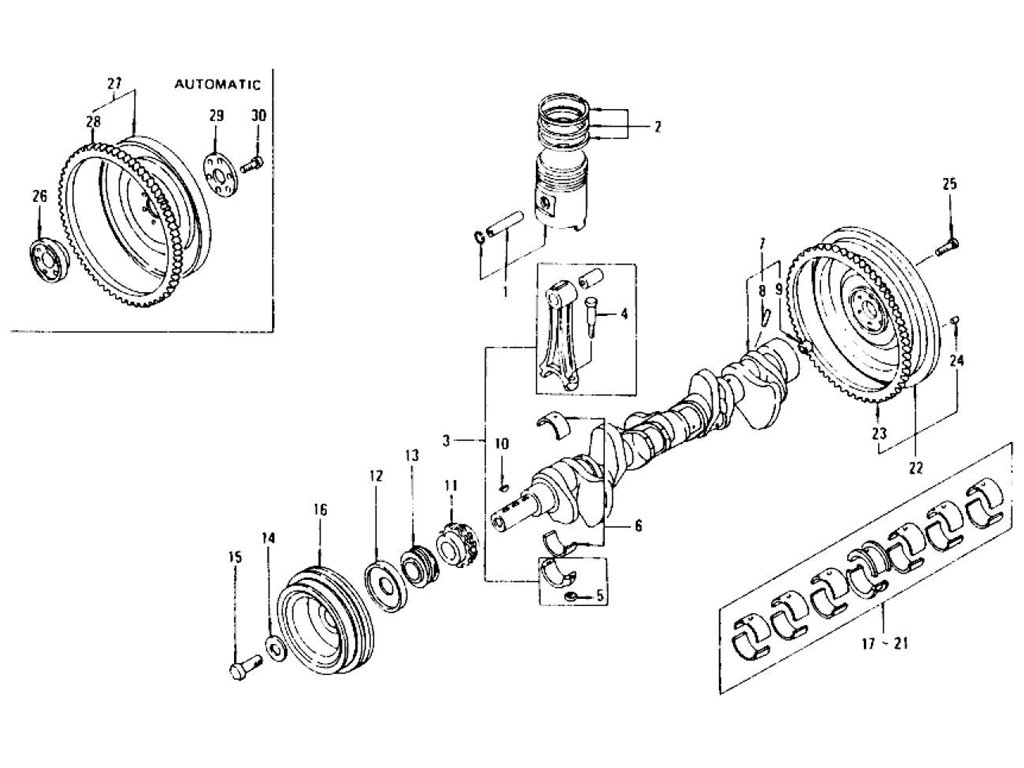

Piston, Crankshaft & Connecting Rod L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SET-PINSTON WITH PIN STD | 12010-H2711 | L24 | 7207 | 7307 | 6 | Yes | Yes | 12010-E3111 |
| 1 | SET-PISTON WITH 0.75 | 12010-E3115 | L24 | 7303 | 6 | ||||
| 1 | SET-PISTON WITH PIN | 12010-E3113 | L24 | 7303 | 6 | ||||
| 1 | SET-PISTON WITH PIN 0.50MM OS | 12010-E3114 | L24 | 7307 | 6 | ||||
| 1 | SET-PISTON WITH PIN 0.50MM OS | 12010-H2714 | L24 | 7207 | 6 | Yes | Yes | 12010-E3114 | |
| 1 | SET-PISTON WITH PIN 0.50MM OS | 12010-E3114 | L26 | 7308 | 6 | No | No | 12010-H2714 | |
| 1 | SET-PISTON WITH PIN 1.00M OS | 12010-E3116 | L24 | 7307 | 6 | ||||
| 1 | SET-PISTON WITH PIN 1.00MM OS | 12010-H2716 | L24 | 7207 | 6 | Yes | Yes | 12010-E3116 | |
| 1 | SET-PISTON WITH PIN 1.00MM OS | 12010-E3116 | L26 | 7308 | 6 | No | No | 12010-H2716 | |
| 1 | SET-PISTON WITH PIN 1.50MM OS | 12010-E3118 | L24 | 7307 | 6 | ||||
| 1 | SET-PISTON WITH PIN STD | 12010-E3111 | L24 | 7307 | 6 | ||||
| 1 | SET-PISTON WITH PIN STD | 12010-E3111 | L26 | 7308 | 6 | No | No | 12010-H2711 | |
| 2 | SET-RING PISTON 0.25 | 12035-E3100 | L24 | 7307 | 1 | ||||
| 2 | SET-RING PISTON 0.75 | 12037-E3100 | L24 | 7307 | 1 | ||||
| 2 | SET-RING PISTON 1.00 | 12038-E3100 | L24 | L26 | 1 | ||||
| 2 | SET-RING PISTON 1.50 | 12040-E3100 | L24 | L26 | 1 | ||||
| 2 | SET-RING PISTON O.50 | 12036-E3100 | L24 | L26 | 1 | ||||
| 2 | SET-RING PISTON STD | 12033-E3100 | L24 | L26 | 1 | ||||
| 3 | COMP-CONNECTING ROD | 12100-N0102 | L24 | 7307 | 6 | Yes | Yes | 12100-E3002 | |
| 3 | COMP-CONNECTING ROD | 12100-E3002 | L24 | 7104 | 6 | 12100-23000 | |||
| 3 | COMP-CONNECTING ROD | 12100-A8703 | L26-L28E | 7308 | 6 | No | No | 12100-N0102 | |
| 3 | COMP-CONNETCING ROD | 12100-23000 | L24 | 7103 | 6 | ||||
| 4 | BOLT-CONNECTING ROD | 12109-21000 | L24 | 12 | |||||
| 4 | BOLT-CONNECTING ROD | 12109-A3501 | L24 | 12 | Yes | Yes | 12109-21000 | ||
| 4 | BOLT-CONNECTING ROD | 12109-A3510 | L24 | 12 | Yes | Yes | 12109-A3501 | ||
| 4 | BOLT-CONNECTING ROD | 12109-N0100 | L24 | L26 | 12 | Yes | Yes | ||
| 4 | BOLT-CONNECTING ROD | 12109-N0110 | L24 | L26 | 12 | Yes | Yes | ||
| 5 | NUT-CONNECTING ROD | 12112-18000 | L24 | 7002 | 12 | ||||
| 5 | NUT-CONNECTING ROD | 12112-N0100 | L24 | 12 | Yes | Yes | 12112-A3500 | ||
| 5 | NUT-CONNECTING ROD | 12112-A3500 | L24 | 7003 | 12 | No | No | 12112-18000 | |
| 5 | NUT-CONNECTING ROD | 12112-N0101 | L24 | L26 | 12 | Yes | Yes | ||
| 6 | BUSH-CONNECTING ROD 0.06MM US | 12121-73400 | L24 | L26 | 12 | ||||
| 6 | BUSH-CONNECTING ROD 0.12MM US | 12122-73400 | L24 | L26 | 12 | ||||
| 6 | BUSH-CONNECTING ROD 0.25MM US | 12117-73400 | L24 | L26 | 12 | ||||
| 6 | BUSH-CONNECTING ROD 0.50MM US | 12118-73400 | L24 | L26 | 12 | ||||
| 6 | BUSH-CONNECTING ROD 0.75MM | 12119-73400 | L24 | L26 | 12 | ||||
| 6 | BUSH-CONNECTING ROD 1.00MM US | 12120-73400 | L24 | L26 | 12 | ||||
| 6 | BUSH-CONNECTING ROD STD | 12111-73400 | L24 | L26 | 12 | ||||
| 7 | ASSY-CRANK SHAFT 19. | 12200-E3100 | L24 | 1 | |||||
| 7 | ASSY-CRANK SHAFT 22K | 12200-E3101 | L24 | 1 | Yes | Yes | 12200-E3100 | ||
| 7 | 12201-E3101SV | 12200-P3000 | L26 | 7308 | 1 | No | No | 12201-E3101 | |
| 8 | PLUG-TAPER | 12205-21000 | L24 | L26 | 6 | ||||
| 9 | BUSH-SHAFT 1ST MOTIO | 32202-30000 | L24 | L26 | 1 | ||||
| 10 | KEY-WOODRUFF 5X16 | 00926-51600 | L24 | L26 | 3 | ||||
| 11 | GEAR-CRANK SHAFT | 13021-21000 | L24 | 7307 | 1 | ||||
| 11 | SPROCKET-CRANKSHAFT | 13021-U0100 | L26 | 7308 | 1 | No | No | 13021-21000 | |
| 12 | THROWER-OIL CRANK | 12302-A3500 | L24 | L26 | 1 | ||||
| 13 | GEAR-OIL PUMP DRIVE | 15043-21000 | L24 | L26 | 1 | ||||
| 14 | WASHER-PULLEY BOLT | 12308-65000 | L24 | L26 | 1 | ||||
| 15 | BOLT-CRANK PULLEY | 12309-66600 | L24 | 7111 | 1 | ||||
| 15 | BOLT-CRANK PULLEY | 12309-21000 | L24 | L26 | 7112 | 1 | Yes | Yes | |
| 16 | ASSY-PULLEY WITH DAM | 12303-E4600 | L24 | 7206 | 1 | ||||
| 16 | ASSY-PULLEY WITH DAM | 12303-N3300 | L24 | 7207 | 7302 | 1 | No | No | 12303-E4600 |
| 16 | ASSY-PULLEY WITH DAM | 12303-N3302 | L24 | L26 | 7303 | 1 | |||
| 16 | ASSY-PULLEY WITH DAM | 12303-E4101 | OP L24 | 1 | |||||
| 16 | ASSY-PULLEY WITH DAM | 12303-E4102 | OP L24 | 7307 | 1 | Yes | Yes | 12303-E4101 | |
| 16 | ASSY-PULLEY WITH DAM | 12303-N3600 | OP L26 | 7308 | 1 | ||||
| 17 | SET-MAIN BEARING STD | 12207-73400 | L24 | L26 | 1 | ||||
| 18 | SET-MAIN BEARING 0.25MM US | 12209-73400 | L24 | L26 | 1 | ||||
| 19 | SET-MAIN BEARING 0.50MM US | 12210-73400 | L24 | L26 | 1 | ||||
| 20 | SET-MAIN BEARING 0.75MM US | 12211-73400 | L24 | L26 | 1 | ||||
| 21 | SET-MAIN BEARING 1.00MM US | 12212-73400 | L24 | L26 | 1 | ||||
| 22 | ASSY-FLY WHEEL | 12310-E3000 | L24 MANUAL | 1 | |||||
| 22 | ASSY-FLY WHEEL | 12310-E3001 | L24 MANUAL | 7211 | 1 | Yes | Yes | 12310-E3000 | |
| 22 | ASSY-FLY WHEEL | 12310-P0100 | L24 | L26 MANUAL | 7212 | 1 | |||
| 23 | GEAR-FLY WHEEL RING | 12312-61000 | L24 | L26 MANUAL | 1 | ||||
| 23 | GEAR-FLY WHEEL RING | 12312-A8600 | L26.MANUAL | 7308 | 1 | Yes | Yes | 12312-61000 | |
| 24 | DOWEL-CLUTCH TO FLY | 12313-10600 | L24 | L26 MANUAL | 2 | ||||
| 25 | BOLT-FLY WHEEL | 12315-21001 | L24 MANUAL | 7211 | 6 | ||||
| 25 | BOLT-FLY WHEEL | 12315-A8600 | L24 | L26 MANUAL | 7212 | 6 | |||
| 25 | BOLT-FLY WHEEL | 12315-U6000 | L26 MANUAL | 6 | Yes | Yes | 12315-A8600 | ||
| 26 | PILOT-CONVERTER | 12330-E3000 | L24 | L26 AUTOMATIC | 1 | ||||
| 27 | ASSY-DRIVE PLATE & G | 12331-E3000 | L24 | L26 AUTOMATIC | 1 | ||||
| 27 | ASSY-DRIVE PLATE & G | 12331-U9500 | L24 | L26 AUTOMATIC | 1 | Yes | Yes | ||
| 28 | GEAR-FLY WHEEL RING | 12312-61000 | L24 AUTOMATIC | 7307 | 1 | ||||
| 28 | GEAR-FLY WHEEL RING | 12312-A8600 | L26 AUTOMATIC | 7308 | 1 | Yes | Yes | 12312-61000 | |
| 29 | PLATE-CRANK TO CONVE | 12333-A1000 | L24 | L26 AUTOMATIC | 1 | ||||
| 30 | BOLT-FLY WHEEL | 12315-A4000 | L24 AUTOMATIC | 7307 | 6 | ||||
| 30 | BOLT-FLY WHEEL L=25. | 12315-21001 | L26 AUTOMATIC | 7308 | 6 | Yes | Yes | 12315-A4000 |
