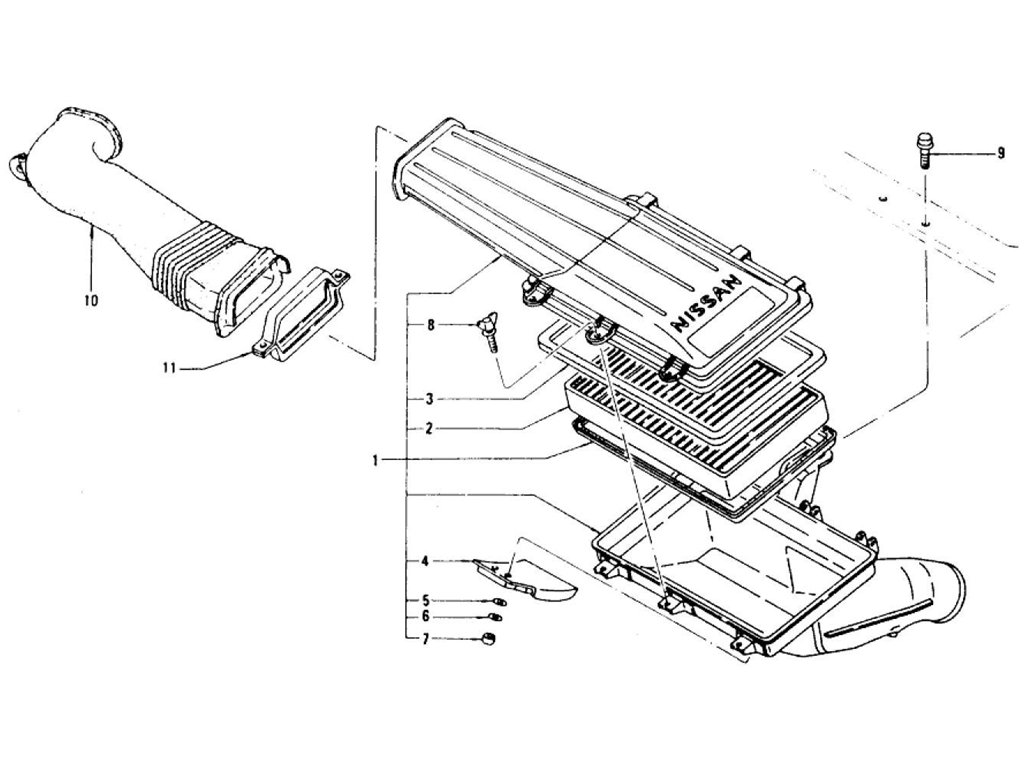

Air Cleaner L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-AIR CLEANER | 16500-N4200 | 1 | ||||||
| 2 | ASSY-PAPER ELEMENT | 16546-N4200 | 1 | ||||||
| 3 | PACKING | 16536-N4200 | 1 | ||||||
| 3 | PACKING | 16536-N4201 | 1 | Yes | Yes | 16536-N4200 | |||
| 4 | STAY-A | 16599-N4200 | 1 | ||||||
| 5 | WASHER | 08915-43610 | 2 | ||||||
| 6 | WASHER-SPRING | 08915-13610 | 2 | ||||||
| 7 | NUT | 08911-10610 | 2 | ||||||
| 8 | BOLT-WING WITH WASHE | 08363-62523 | 3 | Yes | Yes | 16516-N4200 | |||
| 8 | BOLT-WING WITH WASHE | 16516-N4200 | 3 | ||||||
| 9 | BOLT-HEX WITH WASHER | 01431-00093 | 2 | ||||||
| 10 | DUCT-AIR | 62861-N4400 | U.S.A | 7602 | 1 | ||||
| 11 | CLAMP-AIR DUCT | 62865-N4400 | U.S.A | 7602 | 1 |
