Search Item:Key: Part Name: Part Number:

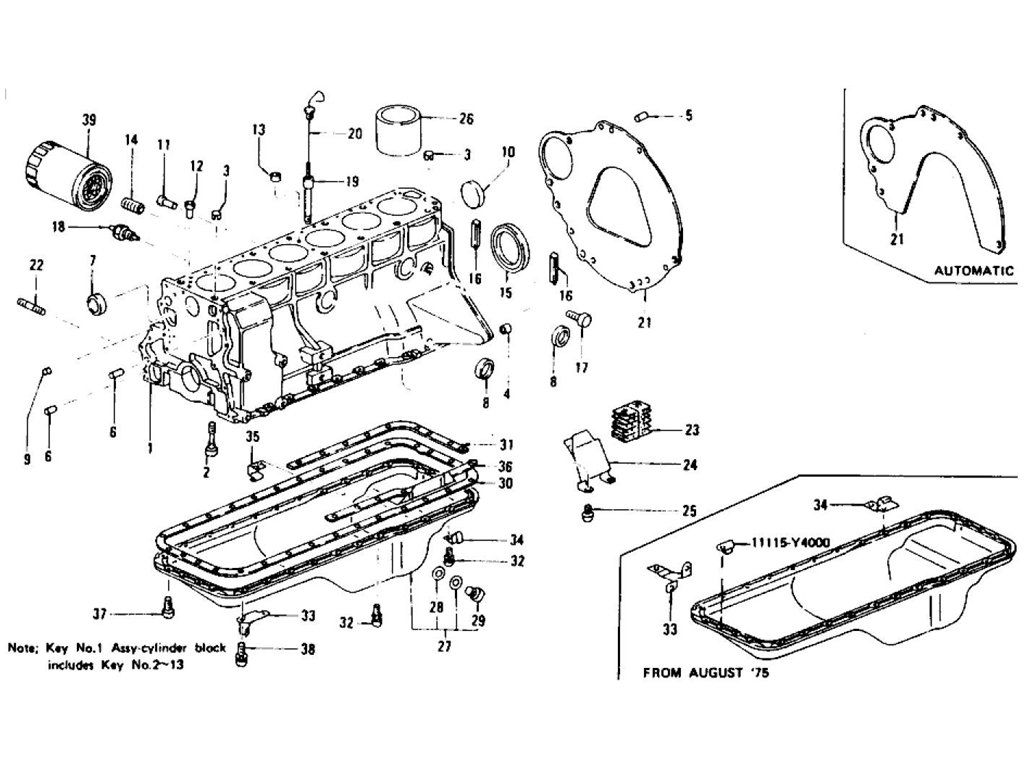

Cylinder Block, Oil Pan & Oil Filter Element L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 2 | BOLT-MAIN BEARING CA | 12293-18001 | 14 | ||||||
| 3 | DOWEL-BLOCK HEAD | 11053-73400 | 2 | ||||||
| 4 | DOWEL-BLOCK HEAD | 11022-21000 | 1 | ||||||
| 5 | DOWEL | 30412-H1000 | 1 | ||||||
| 6 | DOWEL-CYLINDER HEAD | 11046-73402 | 2 | ||||||
| 7 | PLUG-WELCH | 00933-14000 | 1 | ||||||
| 8 | PLUG-WELCH | 00933-13500 | 9 | ||||||
| 8 | PLUG-WELCH | 01648-00084 | 9 | Yes | Yes | 00933-13500 | |||
| 9 | PLUG-TAPER | 11024-K0100 | 2 | ||||||
| 10 | PLUG-WELCH | 00933-15000 | 1 | ||||||
| 11 | ASSY-RELIEF VALVE UN | 15241-73400 | 1 | ||||||
| 12 | JET-OIL | 11047-21000 | 1 | ||||||
| 13 | JET-OIL | 11047-E3000 | 1 | ||||||
| 14 | STUD-OIL FILTER | 15213-21001 | 1 | ||||||
| 15 | SEAL-OIL CRANKSHAFT | 12279-R4600 | 1 | ||||||
| 15 | SEAL-OIL CRANKSHAFT | 12279-R4601 | 1 | Yes | Yes | 12279-R4600 | |||
| 16 | SEAL-OIL BEARING CAP | 12289-21003 | 2 | ||||||
| 17 | PLUG-DRAIN WATER | 08931-30810 | 1 | ||||||
| 18 | GAUGE-PRESSURE | 25070-89901 | 1 | ||||||
| 18 | GAUGE-PRESSURE | 25250-N7600 | 7708 | 1 | No | No | 25250-S6000 | ||
| 18 | GAUGE-PRESSURE | 25250-S6000 | 7708 | 1 | No | No | 25070-89901 | ||
| 19 | GUIDE-GAUGE | 15146-12200 | 1 | ||||||
| 19 | GUIDE-GAUGE | 15146-12201 | 1 | Yes | Yes | 15146-12200 | |||
| 20 | GAUGE-OIL LEVEL | 11140-E3002 | 1 | ||||||
| 21 | PLATE-ENGINE REAR | 30411-21000 | AUTOMATIC | 1 | |||||
| 21 | PLATE-ENGINE REAR | 30411-A8600 | MANUAL | 1 | |||||
| 22 | STUD | 08227-02510 | 1 | ||||||
| 23 | NET-STEEL CRANK CASE | 11037-E3000 | 1 | ||||||
| 24 | PLATE-BUFFLE CRANK C | 11038-E3001 | 7504 | 1 | |||||
| 24 | PLATE-BUFFLE CRANK C | 11038-Y4000 | 7505 | 1 | Yes | Yes | 11038-E3001 | ||
| 25 | SCREW-MACHINE | 08310-61214 | 2 | ||||||
| 26 | LINER-CYLINDER 4.0MM | 11012-N4200 | 6 | ||||||
| 26 | LINER-CYLINDER 4.5MM | 11013-N4200 | 6 | ||||||
| 27 | ASSY-PAN | 11110-P0100 | 1 | ||||||
| 28 | WASHER-DRAIN PLUG | 11026-61000 | 1 | ||||||
| 29 | PLUG-DRAIN | 11128-69200 | 1 | ||||||
| 30 | GASKET-OIL PAN | 11121-E3001 | 1 | ||||||
| 31 | REINFORCEMENT-OIL PA | 11124-P6500 | 1 | Yes | Yes | 11124-R1000 | |||
| 31 | REINFORCEMENT-OIL PA | 11124-R1000 | 1 | ||||||
| 32 | BOLT-HEX | 08130-62062 | 9 | ||||||
| 33 | BRACKET-TUBE CLAMP F | 11116-Y4000 | AUTOMATIC | 7508 | 1 | No | No | 11116-N3400 | |
| 33 | BRACKET-TUBE OIL COO | 11116-N3400 | AUTOMATIC | 7507 | 1 | ||||
| 34 | BRACKET-TUBE CLAMP R | 11117-Y4000 | AUTOMATIC | 7508 | 1 | No | No | 11117-U3500 | |
| 34 | CLAMP-TUBE OIL COOLE | 11117-U3500 | AUTOMATIC | 7507 | 1 | ||||
| 35 | CLAMP-TUBE OIL COOLE | 11117-N3400 | AUTOMATIC | 7507 | 1 | ||||
| 36 | REINFORCEMENT W/HEAT | 11123-N4200 | 1 | ||||||
| 37 | BOLT-HEX | 08130-61462 | AUTOMATIC | 12 | |||||
| 37 | BOLT-HEX | 08130-61462 | MANUAL | 15 | |||||
| 38 | BOLT-HEX | 08130-62062 | AUTOMATIC | 10 | |||||
| 38 | BOLT-HEX | 08130-62062 | MANUAL | 7 | |||||
| 39 | ASSY-ELEMENT OIL FILTER | 15208-65011 | 1 | ||||||
| 39 | ASSY-ELEMENT OIL FILTER | 15208-65014 | 1 | Yes | Yes | 15208-65011 |
