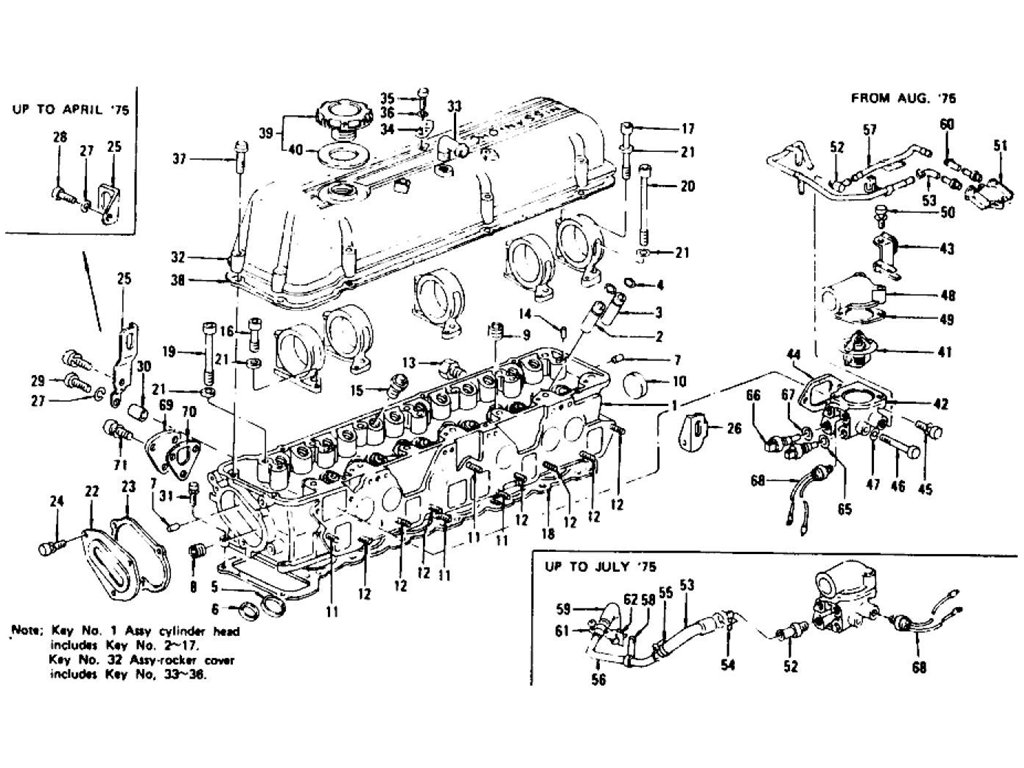

Cylinder Head, Rocker Cover & Thermostat L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 11041-N4203SV | 11041-N4283 | 7704 | 7707 | 1 | Yes | Yes | 11041-N4203 | |
| 1 | 11041-N4700SV | 11041-N4781 | 7803 | 1 | No | No | 11041-N4700 | ||
| 2 | GUIDE-VALVE INTAKE | 13212-21011 | 6 | ||||||
| 3 | GUIDE-VALVE EXHAUST | 13213-21011 | 6 | ||||||
| 4 | RING-SNAP VALVE GUID | 13214-73400 | 12 | ||||||
| 5 | INSERT-VALVE INTAKE | 11098-N4200 | 7505 | 6 | |||||
| 5 | INSERT-VALVE INTAKE | 11098-N4210 | 7506 | 6 | Yes | Yes | 11098-N4200 | ||
| 6 | INSERT-VALVE EXHAUST | 11099-P5010 | 7603 | 6 | |||||
| 6 | INSERT-VALVE EXHAUST | 11099-N6810 | 7604 | 6 | Yes | Yes | 11099-P5010 | ||
| 7 | PLUG-BLING | 11024-A8600 | 2 | ||||||
| 7 | PLUG-TAPER | 11024-U0100 | 2 | Yes | Yes | 11024-A8600 | |||
| 8 | PLUG-BLIND CYLINDER | 11052-E3000 | 1 | ||||||
| 9 | PLUG-BLIND CYLINDER | 11048-14604 | 6 | ||||||
| 10 | PLUG-WELCH 35 | 11021-E3000 | 1 | ||||||
| 11 | STUD M8X1.25 | 08214-82810 | 4 | ||||||
| 12 | STUD M8X1.25 | 08214-83210 | 7 | ||||||
| 13 | PLUG | 08931-30810 | 1 | ||||||
| 14 | COLLAR-CAMSHAFT BRAC | 11022-20100 | 10 | ||||||
| 15 | BRUSH-ROCKER PIVOT | 13215-A8600 | 12 | ||||||
| 16 | BOLT-CAMSHAFT BRACKE | 13058-21000 | 5 | ||||||
| 17 | BOLT-CAMSHAFT BRACKE | 13059-21000 | 5 | ||||||
| 18 | GASKET-CYLINDER HEAD | 11044-N4200 | 1 | ||||||
| 19 | BOLT-CYLINDER HEAD S | 11056-P3000 | 9 | ||||||
| 20 | BOLT-CYLINDER HEAD L | 11059-P3000 | 5 | ||||||
| 21 | WASHER-PLAIN | 11058-21000 | 14 | ||||||
| 21 | WASHER-PLAIN | 11058-21001 | 14 | Yes | Yes | 11058-21000 | |||
| 22 | COVER-HEAD FRONT | 11046-A4600 | 1 | ||||||
| 23 | GASKET-HEAD FRONT CO | 11049-E3000 | 1 | ||||||
| 24 | BOLT-HEX | 08110-61462 | 3 | ||||||
| 25 | SLINGER-ENGINE FRONT | 10005-A3500 | 7504 | 1 | |||||
| 25 | SLINGER-ENGINE FRONT | 10005-Y4010 | 7505 | 7701 | 1 | No | No | 10005-A3500 | |
| 25 | SLINGER-ENGINE FRONT | 10005-U7800 | 7702 | 1 | Yes | Yes | 10005-Y4010 | ||
| 26 | SLINGER-ENGINE REAR | 10006-N3600 | 7702 | 1 | |||||
| 26 | SLINGER-ENGINE REAR | 10006-N4700 | 7703 | 1 | Yes | Yes | 10006-N3600 | ||
| 27 | WASHER-SPRING | 08915-23810 | 7504 | 1 | |||||
| 27 | WASHER-SPRING | 08915-13810 | 7505 | 7701 | 1 | No | No | 08915-23810 | |
| 28 | BOLT-HEX | 08110-81610 | 7504 | 1 | |||||
| 28 | BOLT-HEX | 08120-82562 | 7505 | 1 | No | No | 08110-81610 | ||
| 29 | BOLT-HEX | 11942-Y4002 | 7505 | 7701 | 1 | ||||
| 29 | BOLT-HEX | 08120-82062 | 7702 | 1 | |||||
| 30 | SPACER-ENGINE SLINGE | 10007-N4200 | 7505 | 7701 | 1 | ||||
| 31 | BOLT-HEX | 08110-62262 | 2 | ||||||
| 32 | ASSY-ROCKER COVER | 13264-P0100 | 1 | ||||||
| 33 | CONNECTOR-BREATHER | 13267-23000 | 1 | ||||||
| 34 | BRACKET-HT CABLE CLA | 13241-65000 | 2 | ||||||
| 35 | BOLT-HEX M6X1.0 | 08110-61220 | 2 | ||||||
| 36 | WASHER-SPRING | 08915-13620 | 2 | ||||||
| 37 | BOLT-HEX | 01121-00061 | 8 | ||||||
| 38 | GASKET-ROCKER COVER | 13270-E3001 | 1 | ||||||
| 38 | GASKET-ROCKER COVER | 13270-Y7000 | 1 | Yes | Yes | 13270-E3001 | |||
| 39 | ASSY-CAP OIL FILLER | 15255-P0300 | 7504 | 1 | |||||
| 39 | ASSY-CAP OIL FILLER | 15255-U9600 | 7505 | 1 | Yes | Yes | 15255-P0300 | ||
| 40 | GASKET-OIL FILLER CA | 15270-78500 | 1 | ||||||
| 41 | ASSY-THERMOSTAT 82C | 21200-A3001 | 1 | ||||||
| 41 | ASSY-THERMOSTAT 82C | 21200-V0100 | 1 | Yes | Yes | 21200-A3001 | |||
| 41 | ASSY-THERMOSTAT COLD | 21200-A3005 | 1 | ||||||
| 41 | ASSY-THERMOSTAT COLD | 21200-V0105 | 1 | Yes | Yes | 21200-A3005 | |||
| 41 | ASSY-THERMOSTATE TRO | 21200-78502 | 1 | ||||||
| 42 | HOUSING-THERMOSTAT | 11061-N4200 | 1 | ||||||
| 43 | CLAMP-EGI HARNESS | 24210-N4201 | 7507 | 1 | |||||
| 44 | GASKET-THERMOSTAT HO | 11072-S3001 | 7710 | 1 | Yes | Yes | 11072-S3000 | ||
| 44 | GASKET-THRMOSTAT HOU | 11072-21000 | 7612 | 1 | |||||
| 44 | GASKET-THRMOSTAT HOU | 11072-S3000 | 7701 | 7709 | 1 | Yes | Yes | 11072-21000 | |
| 45 | BOLT-HEX | 08110-83062 | 1 | ||||||
| 45 | BOLT-HEX | 08120-83525 | 1 | Yes | Yes | 08110-83062 | |||
| 46 | BOLT-HEX | 01121-00631 | 1 | Yes | Yes | 11063-21001 | |||
| 46 | BOLT-HEX | 11063-21001 | 1 | ||||||
| 47 | WASHER-SPRING | 08915-13810 | 1 | ||||||
| 48 | OUTLET-WATER | 11060-N4200 | 1 | ||||||
| 49 | WASHER-JOINT OUTLET | 11062-21000 | 7612 | 1 | |||||
| 49 | WASHER-JOINT OUTLET | 11062-S3000 | 7701 | 7709 | 1 | Yes | Yes | 11062-21000 | |
| 49 | WASHER-JOINT OUTLET | 11062-S3001 | 7710 | 1 | Yes | Yes | 11062-S3000 | ||
| 50 | BOLT-HEX | 08110-83062 | 2 | ||||||
| 50 | BOLT-HEX | 08120-83025 | 2 | Yes | Yes | 08110-83062 | |||
| 51 | ASSY-HOUSING | 14062-U9800 | 7607 | 1 | |||||
| 51 | ASSY-HOUSING | 14062-U7800 | 7608 | 7705 | 1 | No | No | 14062-U9800 | |
| 51 | HOUSING ASSY HEATER | 14062-N4700 | 7706 | 1 | No | No | 14062-U7800 | ||
| 52 | CONNECTOR-BY PASS | 14875-N0400 | 7508 | 1 | No | No | 14875-A7700 | ||
| 52 | CONNECTOR-HOSE | 14875-A7700 | 7507 | 1 | |||||
| 53 | HOSE-WATER | 14055-N6900 | 7508 | 1 | Yes | Yes | 14055-Y4000 | ||
| 53 | HOSE-WATER | 14055-Y4000 | 7508 | 1 | No | No | 14055-N1400 | ||
| 53 | HOSE-WATER BY PASS | 14055-N1400 | 7507 | 1 | |||||
| 54 | CLIP-HSE | 08723-12200 | 7507 | 1 | |||||
| 55 | CLIP-HSE | 08723-11900 | 7507 | 1 | |||||
| 56 | PIPE-WATER BY PASS | 14053-U9801 | 7508 | 7605 | 1 | No | No | 14053-N1400 | |
| 56 | PIPE-WATER BY PASS | 14053-U9802 | 7606 | 1 | 14053-U9801 | ||||
| 56 | PIPE-WATER BYPASS | 14053-N1400 | 7507 | 1 | |||||
| 57 | PIPE-WATER | 14054-U9800 | 1 | ||||||
| 58 | CLAMP-PIPE MANIF TO | 14040-A4600 | 1 | ||||||
| 59 | HOSE-WATER | 14056-23001 | 7507 | 1 | |||||
| 59 | HOSE-WATER | 14056-Y4001 | 7508 | 1 | No | No | 14056-23001 | ||
| 60 | HOSE-WATER | 14056-U9800 | 7508 | 2 | |||||
| 61 | CLAMP-HOSE | 08723-11800 | 7507 | 1 | |||||
| 62 | CLAMP-HOSE | 08723-12000 | 7507 | 1 | |||||
| 63 | CLAMP-HOSE | 08723-11400 | 7508 | 8 | |||||
| 63 | CLAMP-HOSE | 16439-22100 | 7508 | 8 | Yes | Yes | 08723-11400 | ||
| 64 | ASSY-SENSOR | 22630-N4200 | 1 | ||||||
| 65 | GASKET-WATER TEMP SE | 22636-N4200 | 1 | ||||||
| 66 | ASSY-SWITCH THERMO T | 22635-N4200 | 1 | ||||||
| 66 | ASSY-SWITCH THERMO T | 22635-N4710 | FOR SERVICE | 1 | No | No | 22635-N4200 | ||
| 67 | GASKET-THERMO TIME S | 22636-N4210 | 1 | ||||||
| 68 | SWITCH-WATER TEMP | 22120-N4202 | 1 | ||||||
| 69 | COVER-PLATE FUEL PUM | 16420-E3020 | 1 | ||||||
| 70 | GASKET-FUEL PUMP | 17099-E3012 | 1 | ||||||
| 71 | BOLT-HEX | 08120-82062 | 3 |
