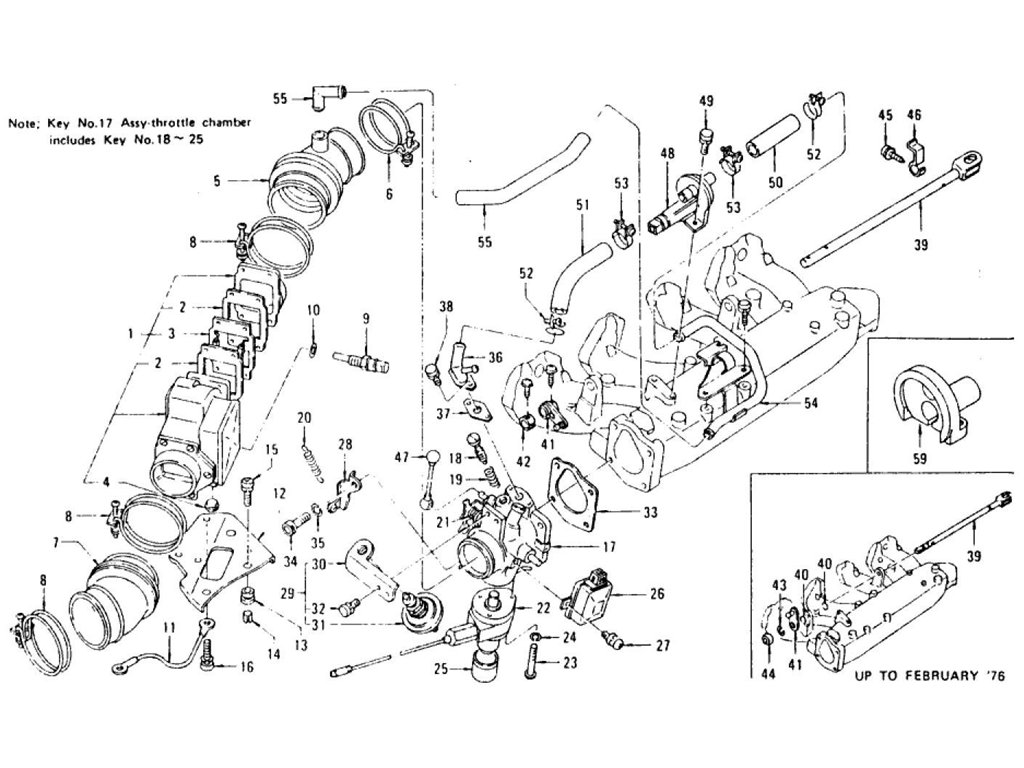

E.F.I.(2) -Air Flow- L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22680-N4202SV | 22680-N4210 | 7508 | 7607 | 1 | Yes | Yes | 22680-N4202 | |
| 1 | 22680-N4202SV | 22680-N4800 | 7608 | 7707 | 1 | Yes | Yes | 22680-N4210 | |
| 1 | 22680-N4202SV | 22680-N4801 | CAL | 7708 | 1 | ||||
| 1 | 22680-N4202SV | 22680-N4211 | FED | 7708 | 1 | ||||
| 2 | GASKET-AIR FLOW METE | 22688-N4202 | 2 | ||||||
| 3 | ASSY-STOPPER | 22689-N4202 | 1 | ||||||
| 4 | PLUG-RUBBER | 14927-N4200 | 1 | ||||||
| 5 | ASSY-HOSE | 16578-N4200 | 7704 | 1 | Yes | Yes | 16578-N4201 | ||
| 5 | ASSY-HOSE | 16578-N4201 | 1 | ||||||
| 5 | ASSY-HOSE | 16578-N4710 | 7705 | 1 | No | No | 16578-N4200 | ||
| 6 | CLAMP-HOSE | 08723-17300 | 1 | ||||||
| 7 | HOSE-AIR CLEANER TO | 16577-N4201 | 1 | ||||||
| 8 | CLAMP-HOSE | 08723-18500 | 3 | ||||||
| 9 | ASSY-SENSOR | 22631-N1400 | 1 | ||||||
| 10 | WASHER-PLAIN | 16524-U2700 | 1 | ||||||
| 11 | HARNESS-AFM EARTH | 22685-N4200 | 1 | ||||||
| 12 | BRACKET-AIR FLOW MET | 22682-N4200 | 7601 | 1 | |||||
| 12 | BRACKET-AIR FLOW MET | 22682-N4202 | 7602 | 1 | 22682-N4200 | ||||
| 13 | RUBBER-AIR FLOW MTER | 22683-N4201 | 7602 | 3 | No | No | 22683-N4200 | ||
| 13 | SERVICE FILE RUBBER METER | 22683-N4200 | 7601 | 3 | |||||
| 14 | BUSH-AIR FLOW METER | 22684-N4200 | 7601 | 3 | |||||
| 14 | BUSH-AIR FLOW METER | 22684-N4201 | 7602 | 3 | No | No | 22684-N4200 | ||
| 15 | BOLT-HEX. | 08363-62026 | 7601 | 3 | |||||
| 15 | BOLT-HEX. | 08360-61420 | 7602 | 3 | No | No | 08363-62026 | ||
| 16 | BOLT-HEX. | 08360-81414 | 7601 | 3 | |||||
| 16 | BOLT-HEX. | 08360-82023 | 7602 | 3 | No | No | 08360-81414 | ||
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4700 | 7608 | 7707 | 1 | Yes | Yes | 16118-N4311 | |
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4701 | 7608 | 7707 | 1 | Yes | Yes | 16118-N4700 | |
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4311 | CAL | 7607 | 1 | ||||
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4312 | CAL | 7607 | 1 | Yes | Yes | 16118-N4311 | |
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4701 | CAL | 7708 | 1 | Yes | Yes | 16118-N4700 | |
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4212 | FED | 7607 | 1 | ||||
| 17 | ASSY-THROTTLE CHAMBE | 16118-N4213 | FED | 7607 | 1 | Yes | Yes | 16118-N4212 | |
| 17 | ASSY-THROTTLE CHAMBE | 16118-N7600 | FED | CAN | 7708 | 1 | |||
| 17 | ASSY-THROTTLE CHAMBE | 16118-N7601 | FED | CAN | 7708 | 1 | Yes | Yes | |
| 18 | SCREW-ADJUST | 16144-N4200 | 1 | ||||||
| 18 | SCREW-ADJUST | 16144-U9800 | 1 | Yes | Yes | 16144-N4200 | |||
| 19 | SPRING-ADJUST SCREW | 16145-N3200 | 1 | ||||||
| 19 | SPRING-ADJUST SCREW | 16145-N4200 | 1 | Yes | Yes | 16145-N3200 | |||
| 20 | SPRING-THROTTLE ERTU | 16160-N3200 | 1 | ||||||
| 21 | SPIRNG-THROTTLE RETU | 16160-N3600 | 1 | ||||||
| 22 | ASSY-BCDD | 16484-N4200 | 7607 | 1 | |||||
| 22 | ASSY-BCDD | 16484-U8700 | CAL | 7608 | 1 | ||||
| 22 | ASSY-BCDD | 16484-U8700 | FED | 7608 | 7707 | 1 | Yes | Yes | 16484-N4200 |
| 22 | ASSY-BCDD | 16484-N7600 | FED | 7708 | 1 | ||||
| 23 | SCREW M4X45 | 16485-N4200 | 3 | ||||||
| 24 | WASHER-SPRING | 22156-85060 | 3 | ||||||
| 25 | CAP | 16483-N4200 | 1 | ||||||
| 26 | SWITCH-THROTTLE VALV | 22620-N4201 | 1 | ||||||
| 27 | SCREW-HEX. | 08310-40826 | 2 | ||||||
| 28 | BRACKET-RETURN SPRIN | 16165-N4200 | 7507 | 1 | |||||
| 28 | BRACKET-RETURN SPRIN | 16165-N4201 | 7508 | 1 | |||||
| 29 | ASSY-DASH OPT W/BRAC | 16257-N4201 | MANUAL | 1 | |||||
| 30 | BRACKET-DASH POT | 16258-N4201 | MANUAL | 1 | |||||
| 31 | ASSY-DASH POT | 16182-N4201 | MANUAL | 1 | |||||
| 31 | ASSY-DASH POT | 16182-P7100 | MANUAL | 1 | Yes | Yes | 16182-N4201 | ||
| 32 | SCREW-HEX. | 08360-61214 | MANUAL | 2 | |||||
| 33 | GASKET-THROTTLE CHAM | 16175-N4200 | 1 | ||||||
| 34 | BOLT-SOCKET | 16122-N4200 | 4 | ||||||
| 35 | WASHER-SPRING | 08915-13810 | 4 | ||||||
| 36 | CONNECTOR-AIR REGULA | 14053-N4200 | 1 | ||||||
| 37 | GASKET-CONNECTOR | 14055-N4200 | 1 | ||||||
| 38 | SCREW-HEX. | 08360-61214 | 2 | ||||||
| 39 | ASSY-SHAFT | 16361-N4200 | 7602 | 1 | |||||
| 39 | ASSY-SHAFT | 16361-N4201 | 7603 | 1 | 16361-N4200 | ||||
| 41 | ARM-AUX THROTTLE SHA | 16362-N3200 | 7602 | 1 | |||||
| 41 | ARM-AUX THROTTLE SHA | 16362-N4200 | 7603 | 1 | 16362-N3200 | ||||
| 42 | STOPPER-AUX THROTTLE | 16363-N4200 | 7603 | 1 | |||||
| 43 | WASHER-SPRING | 08915-14010 | 7602 | 1 | |||||
| 44 | NUT-HEX. | 08911-34010 | 7602 | 1 | |||||
| 45 | SCREW-FIX | 08320-51619 | 7603 | 1 | |||||
| 46 | LEVER-F.I.C.D | 27654-N4200 | 7603 | 1 | |||||
| 47 | ROD-CONNECTING | 16370-N4200 | 1 | ||||||
| 48 | ASSY-REGULATOR | 22660-N4200 | 7507 | 1 | |||||
| 48 | ASSY-REGULATOR | 22660-N4210 | 7508 | 1 | No | No | 22660-N4200 | ||
| 49 | SCREW-WITH WASHER | 08360-61214 | 7507 | 2 | |||||
| 49 | SCREW-WITH WASHER | 08360-63014 | 7508 | 2 | No | No | 08360-61214 | ||
| 50 | HOSE-3WAY TO AIR REG | 14060-N4200 | 7704 | 1 | |||||
| 50 | HOSE-PIPE TO AIR REG | 14060-N4710 | 7705 | 1 | No | No | 14060-N4200 | ||
| 51 | HOSE-AIR REGULATOR T | 14061-N4200 | 1 | ||||||
| 52 | CLAMP-HOSE | 08723-12200 | 2 | ||||||
| 53 | CLAMP-HOSE | 16439-N4201 | 7507 | 2 | |||||
| 53 | CLAMP-HOSE | 16439-N4202 | 7508 | 2 | 16439-N4201 | ||||
| 54 | ASSY-PIPE WITH SUPPO | 14063-N4710 | 7705 | 1 | |||||
| 55 | HOSE-PIPE TO CONNECT | 14060-N4711 | 7705 | 1 | |||||
| 56 | CONNECTOR-PIPE | 16579-N4710 | 7705 | 1 | |||||
| 57 | CLAMP-HOSE | 08723-12200 | 7705 | 2 | |||||
| 58 | CLAMP-HOSE | 08723-12400 | 7705 | 1 | |||||
| 59 | COVER-AIR REGULATOR | 22663-N4200 | CANADA | 7708 | 1 |
