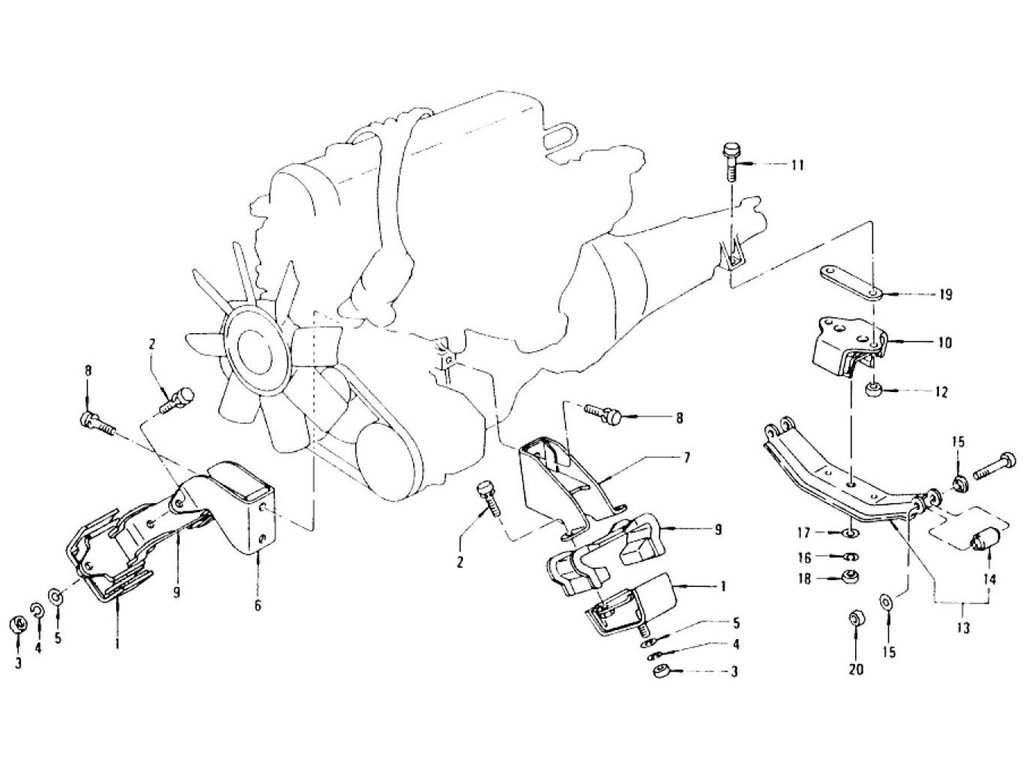

Engine Mounting L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY INSULATOR ENGIN | 11220-N3300 | 2 | ||||||
| 2 | BOLT HEX | 08120-82562 | 4 | ||||||
| 3 | NUT HEX MI0X1.25 | 08911-24010 | 2 | ||||||
| 4 | WASHER SPRING LOCK | 08915-14010 | 2 | ||||||
| 5 | WASHER PLAIN | 08915-54010 | 2 | ||||||
| 6 | ASSY BRACKET ENGINE | 11230-N3600 | 1 | ||||||
| 7 | ASSY BRACKET ENGINE | 11231-N3600 | 1 | ||||||
| 8 | BOLT HEX | 08121-02262 | 4 | ||||||
| 9 | ASSY-STOPPER ENGINE | 11224-N3300 | 2 | ||||||
| 10 | ASSY-INSULATOR ENGIN | 11320-N3000 | 1 | ||||||
| 11 | BOLT ENGINE MOUNTING | 11322-N4200 | 2 | ||||||
| 12 | NUT SELF LOCK | 08912-84010 | 2 | ||||||
| 13 | COMP-MEMBER ENGINE M | 11310-N3000 | 1 | ||||||
| 14 | ASSY BUSH ENGINE MOU | 11345-N3000 | 2 | ||||||
| 15 | STOPPER ENGINE MOUNT | 11346-E8700 | 4 | ||||||
| 16 | WASHER SPRING LOCK | 08915-24010 | 1 | ||||||
| 17 | WASHER PLAIN | 08915-54010 | 1 | ||||||
| 18 | NUT HEX | 08911-24010 | 1 | ||||||
| 19 | PIECE REAR ENGINE MO | 11336-N4200 | 1 | ||||||
| 20 | NUT HEX | 08912-84210 | 2 |
