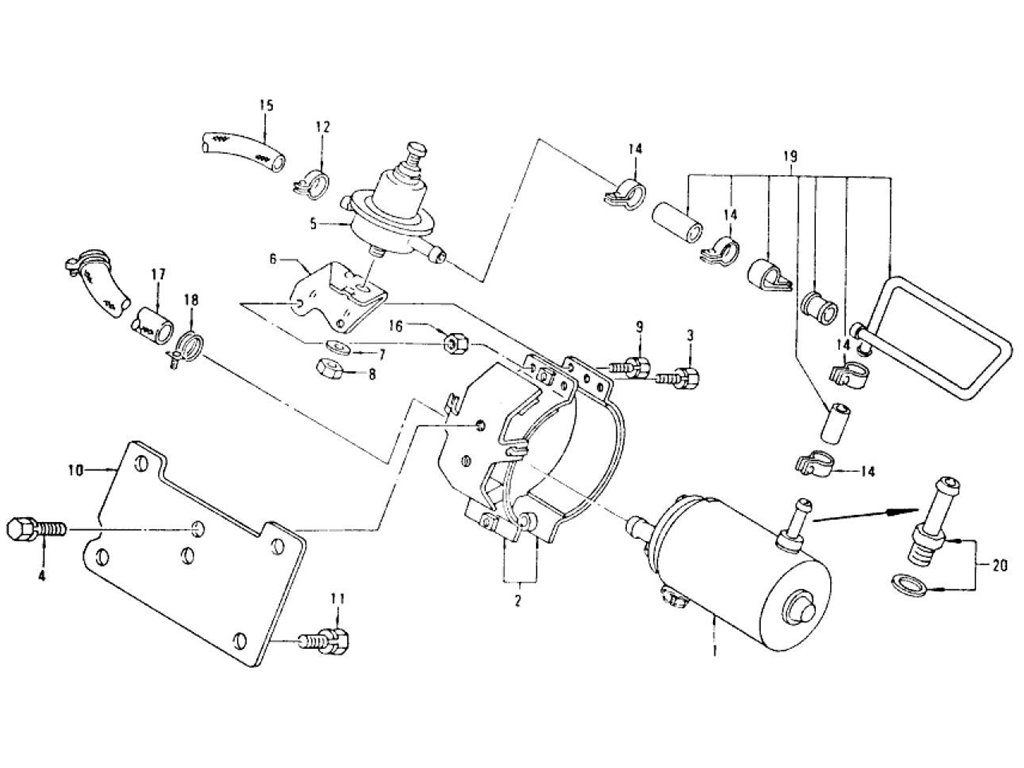

Fuel Pump & Fuel Hose L28E (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PUMP | 17011-N4200 | 7709 | 1 | |||||
| 1 | ASSY-PUMP | 17011-N4700 | 1 | ||||||
| 1 | ASSY-PUMP | 17011-Y8010 | USA | 1 | Yes | Yes | 17011-N4205 | ||
| 1 | ASSY-PUMP | 17011-N4205 | 7710 | 1 | Yes | Yes | 17011-N4200 | ||
| 1 | ASSY-PUMP | 17011-Y8000 | USA | 1 | Yes | Yes | 17011-N4205 | ||
| 2 | ASSY-BRACKET | 17012-F2000 | 1 | ||||||
| 2 | ASSY-BRACKET | 17012-F2001 | 7710 | 1 | Yes | Yes | 17012-F2000 | ||
| 3 | SCREW | 08310-51814 | 2 | ||||||
| 4 | BOLT-HEX WITH WASHER | 08110-61262 | 2 | ||||||
| 5 | ASSY-DAMPER | 22675-N4200 | 1 | ||||||
| 5 | ASSY-DAMPER | 22675-N4205 | 1 | Yes | Yes | 22675-N4200 | |||
| 6 | BRACKET-DAMPER | 22676-N4700 | 1 | ||||||
| 7 | WASHER-SPRING | 08915-13810 | 1 | ||||||
| 8 | NUT-HEX | 08911-10810 | 1 | ||||||
| 9 | SCREW-MACHINE | 08310-61214 | 2 | ||||||
| 10 | PLATE-FUEL PUMP MTG | 17033-N4701 | 1 | ||||||
| 11 | BOLT-HEX | 08360-81826 | 4 | ||||||
| 12 | CLAMP-HOSE | 17557-N4700 | 2 | ||||||
| 13 | CROMMET-FUEL HOSE | 17286-N4700 | 1 | ||||||
| 14 | CLAMP-HOSE | 16439-N4205 | 4 | ||||||
| 15 | HOSE-FUEL | 17554-N4206 | 1 | ||||||
| 15 | HOSE-FUEL | 17558-U9200 | 1 | Yes | Yes | 17554-N4206 | |||
| 16 | NUT-HEX | 08911-10610 | 2 | ||||||
| 17 | HOSE-FUEL | 17545-N4701 | 1 | ||||||
| 18 | CLAMP-HOSE | 08723-12200 | 2 | ||||||
| 19 | ASSY-TUBE FUEL | 17555-N4701 | 1 | ||||||
| 20 | KIT-VALVE | 17014-N4225 | 1 |
