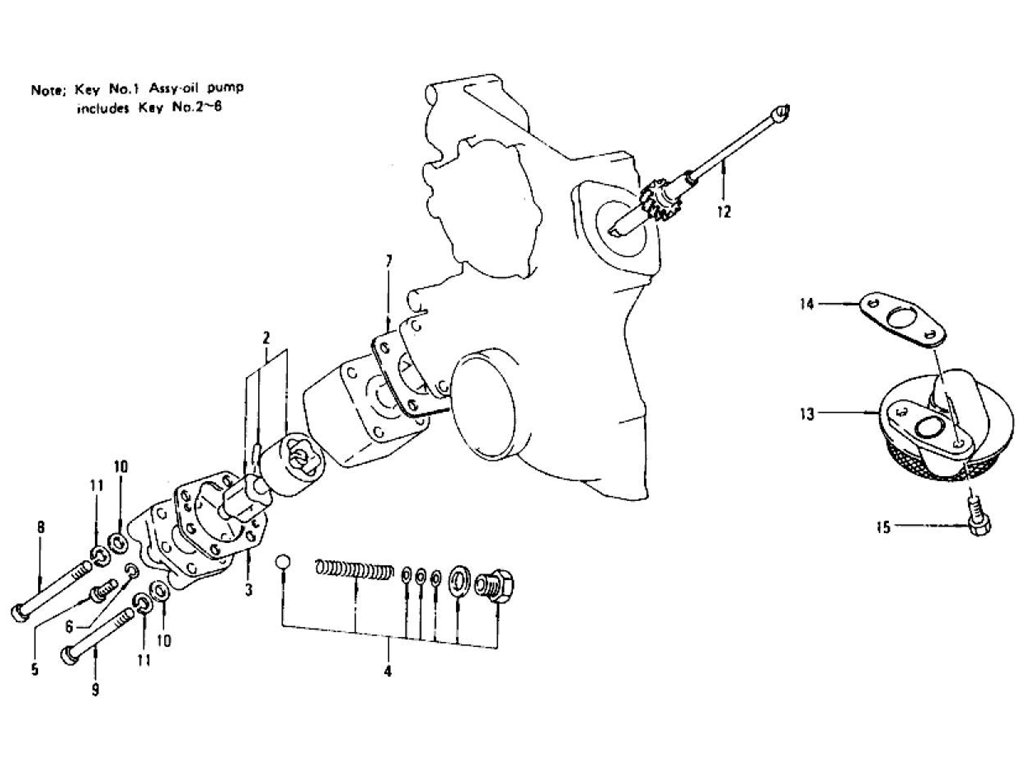

Oil Pump L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-OIL PUMP | 15010-21001 | 1 | ||||||
| 2 | ASSY-SHAFT | 15020-21005 | 1 | ||||||
| 3 | GASKET-OIL PUMP | 15025-21000 | 1 | ||||||
| 4 | SET-VALVE OIL REGULA | 15132-21005 | 1 | ||||||
| 5 | BOLT | 08110-62010 | 2 | ||||||
| 6 | WASHER-SPRING LOCK | 08915-13610 | 2 | ||||||
| 7 | GASKET-OIL PUMP TO C | 15066-21001 | 1 | ||||||
| 8 | BOLT-OIL PUMP | 15036-21000 | 2 | ||||||
| 9 | BOLT-OIL PUMP | 15037-21000 | 2 | ||||||
| 10 | WASHER-PLAIN | 08915-43810 | 4 | ||||||
| 11 | WASHER-SPRING LOCK | 08915-13810 | 4 | ||||||
| 12 | ASSY-SPINDLE | 15040-21001 | 1 | ||||||
| 13 | ASSY-OIL STRAINER | 15050-E3000 | 1 | ||||||
| 14 | GASKET-OIL STRAINER | 15059-E3000 | 1 | ||||||
| 15 | BOLT-HEX M8X1.25 | 08110-82262 | 2 |
