Special Tools
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|

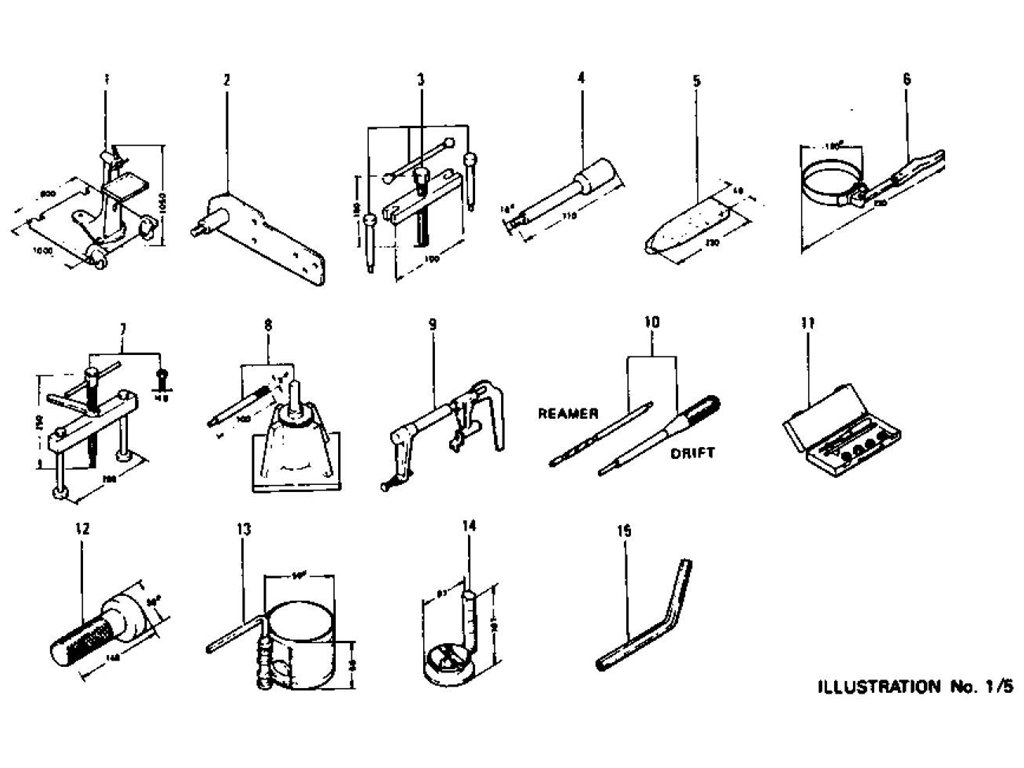

| 1 | STAND-ENGINE | ST050-10000 | 1 | ||||||
| 2 | ATTACHMENT-ENGINE | ST053-40000 | 1 | ||||||
| 3 | PULLER-CRANK PULLEY | ST165-40000 | 1 | ||||||
| 4 | WRENCH-CYLINDER HEAD | ST101-20000 | 1 | ||||||
| 5 | STOPPER-CHAIN | ST174-20000 | 1 | ||||||
| 6 | WRENCH-OIL FILTER | ST193-20000 | 1 | ||||||
| 7 | PULLER-CRANK SHAFT M | ST165-10000 | 1 | ||||||
| 8 | STAND-PISTON PIN PRE | ST130-20000 | 1 | ||||||
| 9 | SET-VALVE LIFTER | ST120-70000 | 1 | ||||||
| 10 | KIT-VALVE GUIDE REAM | ST110-30000 | 1 | ||||||
| 10 | KIT-VALVE GUIDE REAM | ST110-35000 | 1 | Yes | Yes | ST110-30000 | |||
| 11 | CUTTER-VALVE SEAT | ST116-50000 | 1 | ||||||
| 11 | CUTTER-VALVE SEAT | ST116-50001 | 1 | Yes | Yes | ST116-50000 | |||
| 12 | DRIFT-CRANK SHAFT OI | KV101-05500 | 1 | Yes | Yes | ST153-10000 | |||
| 12 | DRIFT-CRANK SHAFT OI | ST153-10000 | 1 | ||||||
| 13 | COMPRESSOR-PISTON RI | EM034-70000 | 1 | ||||||
| 14 | FLOWMETER-CARBURETOR | EG167-00000 | 1 | ||||||
| 15 | WRENCH-HEX (SMOG SEV | ST198-10000 | 1 | ||||||

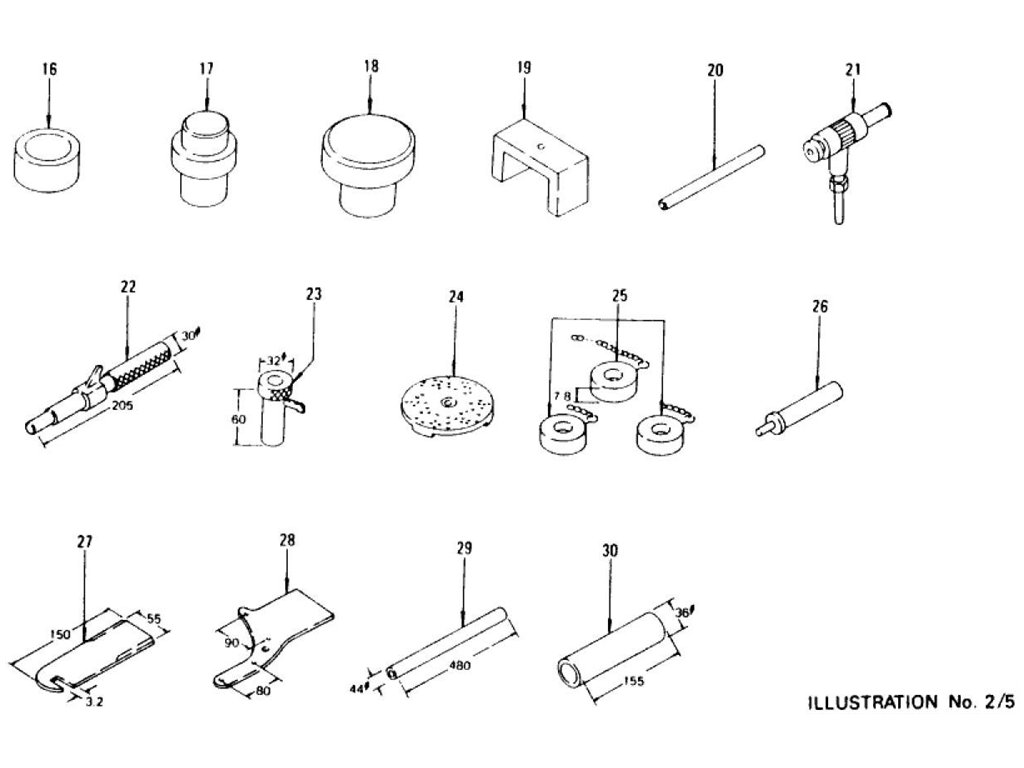

| 16 | SUPPORT FOR DISASSEM | ST198-20000 | 1 | ||||||
| 17 | ATTACHMENT FOR PUSH | ST198-30000 | 1 | ||||||
| 18 | ATTACHMENT FOR PUSH | ST198-40000 | 1 | ||||||
| 19 | BRIDGE FOR PUSH OUT | ST198-50000 | 1 | ||||||
| 20 | SHAFT-DUMMY (SMOG DE | ST198-60000 | 1 | ||||||
| 21 | PUMP-AIR (SMOG DEVIC | ST198-70000 | 1 | ||||||
| 22 | BAR-CLUTCH ALIGMING | ST206-30000 | 1 | ||||||
| 23 | GAUGE-HEIGHT | ST202-40000 | 1 | ||||||
| 24 | PLATE-BASE CLUTCH AS | ST200-51000 | 1 | ||||||
| 25 | PIECE-DISTANCE CLUTC | ST200-58001 | 1 | ||||||
| 26 | POLE-CENTER CLUTCH A | ST200-52000 | 1 | ||||||
| 27 | WRENCH-DIAPHRAGM ADJ | ST205-00000 | 1 | ||||||
| 28 | ADAPTOR-SETTING PLAT | ST238-10000 | 1 | ||||||
| 29 | ADAPTOR-TRANSMISSION | ST238-00000 | 1 | ||||||
| 30 | DRIFT-"B" | ST306-00000 | 1 | ||||||

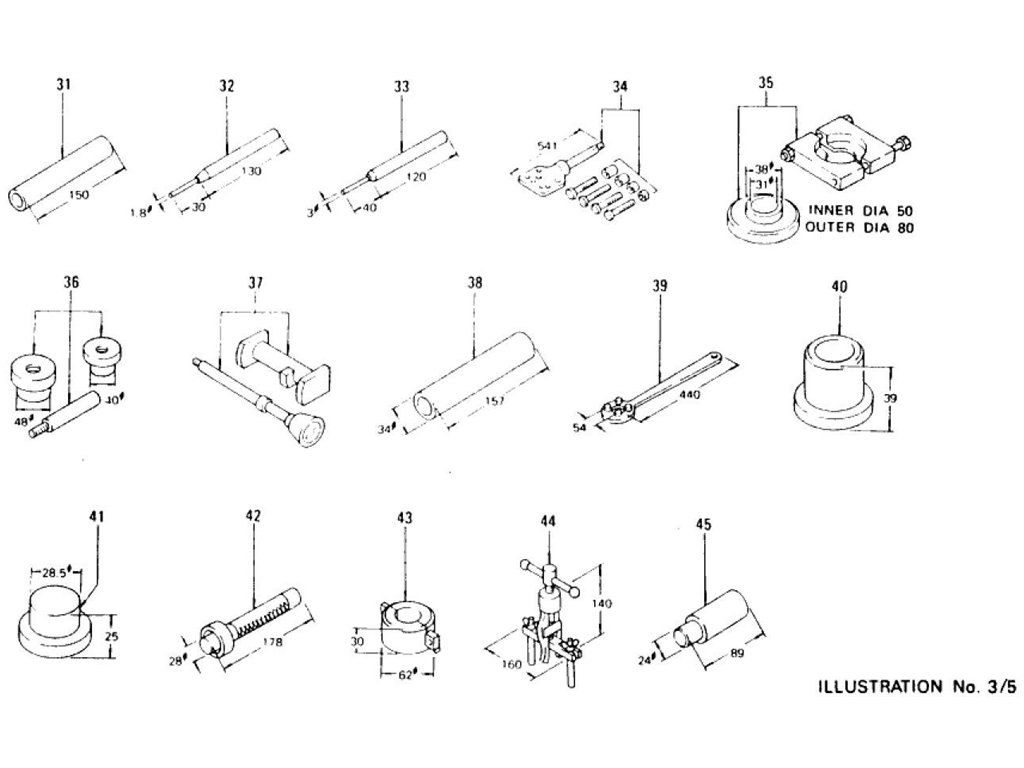

| 31 | DRIFT-"C" | ST223-60000 | 1 | ||||||
| 32 | PUNCH-SOLID | ST235-30000 | 1 | ||||||
| 33 | PUNCH-FORK ROD PIN | ST235-00000 | 1 | ||||||
| 34 | ATTACHMENT-GEAR BOX | ST062-70000 | 1 | ||||||
| 35 | SET-REPLACER DRIVE P | ST300-30000 | 1 | ||||||
| 36 | KIT-OUTER RACE DRIFT | ST306-10000 | 1 | ||||||
| 37 | ASSY-HEIGHT GAUGE GE | ST312-10000 | 1 | ||||||
| 38 | COLLAR-DRIVE PINION | ST315-00000 | 1 | ||||||
| 39 | WRENCH-DRIVE PINION | ST315-30000 | 1 | ||||||
| 40 | SPACER-DUMMY | ST318-50000 | 1 | ||||||
| 41 | ADAPTOR | ST330-12000 | 1 | ||||||
| 42 | DRIFT-SIDE BEARING G | ST332-30000 | 1 | ||||||
| 43 | DRIFT-OIL SEAL GEAR | ST332-70000 | 1 | ||||||
| 44 | PULLER-OIL SEAL GEAR | ST332-90000 | 1 | ||||||
| 45 | ATTACHMENT-SIDE RETA | ST337-10000 | 1 | ||||||

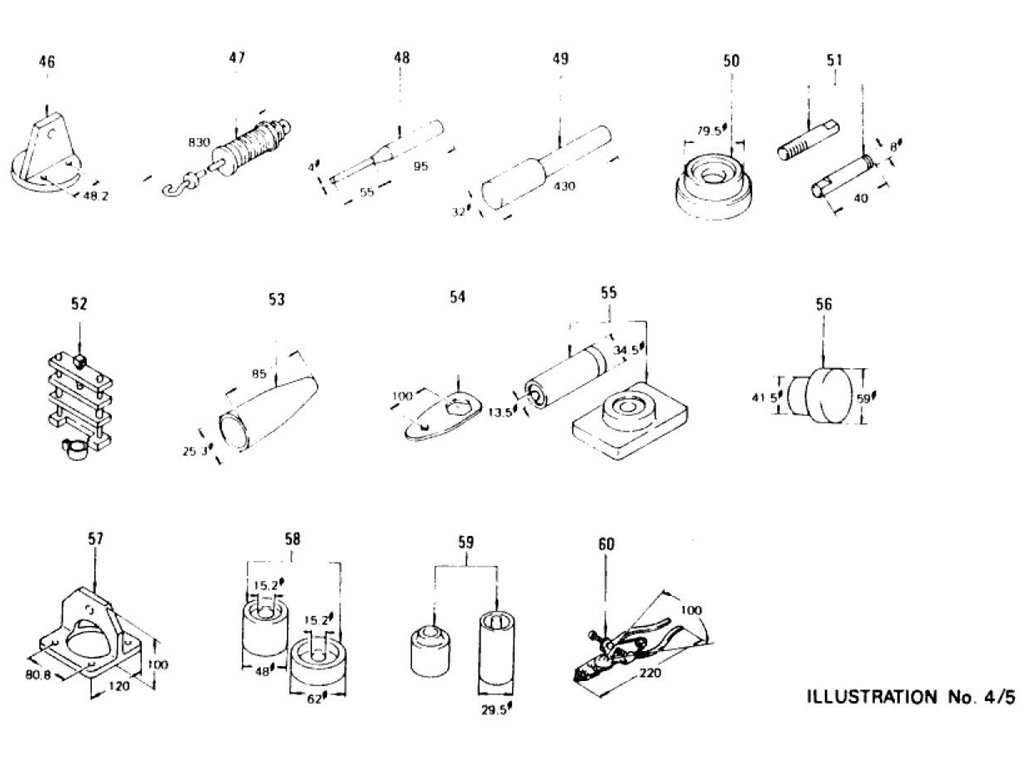

| 46 | STAND-SIDE FLANGE GE | ST337-30000 | 1 | ||||||
| 47 | HAMMER-SLIDING | ST362-30000 | 1 | ||||||
| 48 | PUNCH-LOCKING PIN DI | KV321-01000 | 1 | Yes | Yes | ST235-10000 | |||
| 48 | PUNCH-LOCKING PIN DI | ST235-10000 | 1 | ||||||
| 49 | DRIFT-PILOT BEARING | ST306-50000 | 1 | ||||||
| 50 | ADAPTOR | ST332-52000 | 1 | ||||||
| 51 | GUIDE-STRAINER GEAR | ST337-20000 | 1 | ||||||
| 52 | SET-COMPRESSOR COIL | ST356-50000 | 1 | ||||||
| 53 | GUIDE-GLAND PACKING | ST355-40000 | 1 | ||||||
| 54 | WRENCH-GLAND PACKING | ST355-00000 | 1 | ||||||
| 55 | REPLACER-TRANSVERSE | ST367-10000 | 1 | ||||||
| 56 | DRIFT-BEARING FRONT | ST353-00000 | 1 | ||||||
| 57 | STAND REAR AXLE | KV401-01000 | 1 | Yes | Yes | ST076-40000 | |||
| 57 | STAND-REAR AXLE | ST076-40000 | 1 | ||||||
| 58 | SET INSULATOR DRIT D | ST332-60000 | 1 | ||||||
| 59 | REPLACER TRANSVERSE | ST388-00000 | 1 | ||||||

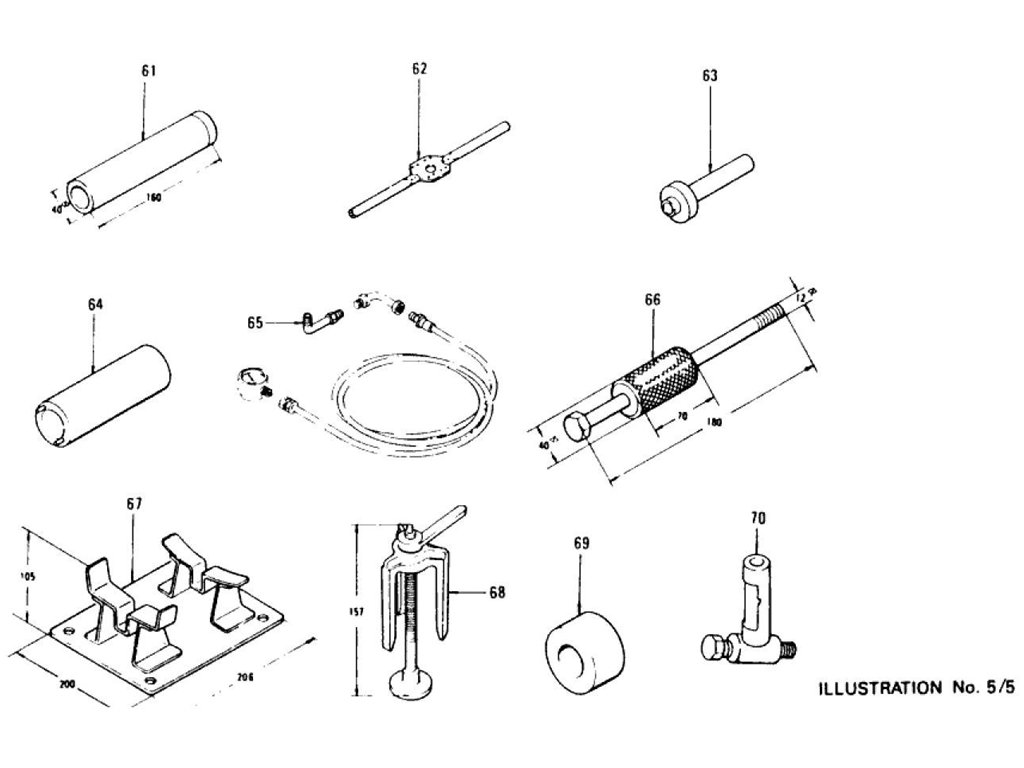

| 60 | PLIER SANP RING DRIV | ST383-00000 | 1 | ||||||
| 61 | DRIFT OUTER BEARING | ST377-80000 | 1 | ||||||
| 62 | SET MASTER VAC WRENC | ST080-50000 | 1 | ||||||
| 63 | TOOL PRESS FIT | ST080-60000 | 1 | ||||||
| 64 | REPLACER TUMBLER SWI | ST089-00000 | 1 | ||||||
| 65 | ADAPTER 2 | ST250-55000 | AUTOMATIC | 1 | |||||
| 66 | HAMMER SLIDE | ST258-50000 | AUTOMATIC | 2 | |||||
| 67 | STAND TRANSMISSION | ST078-60000 | AUTOMATIC | 1 | |||||
| 68 | COMPRESSOR-CLUTCH SP | ST254-20000 | AUTOMATIC | 1 | |||||
| 69 | SPACER | ST257-30000 | AUTOMATIC | 2 | |||||
| 70 | GAUGE FLOAT LEVEL | ST192-00001 | 1 |
