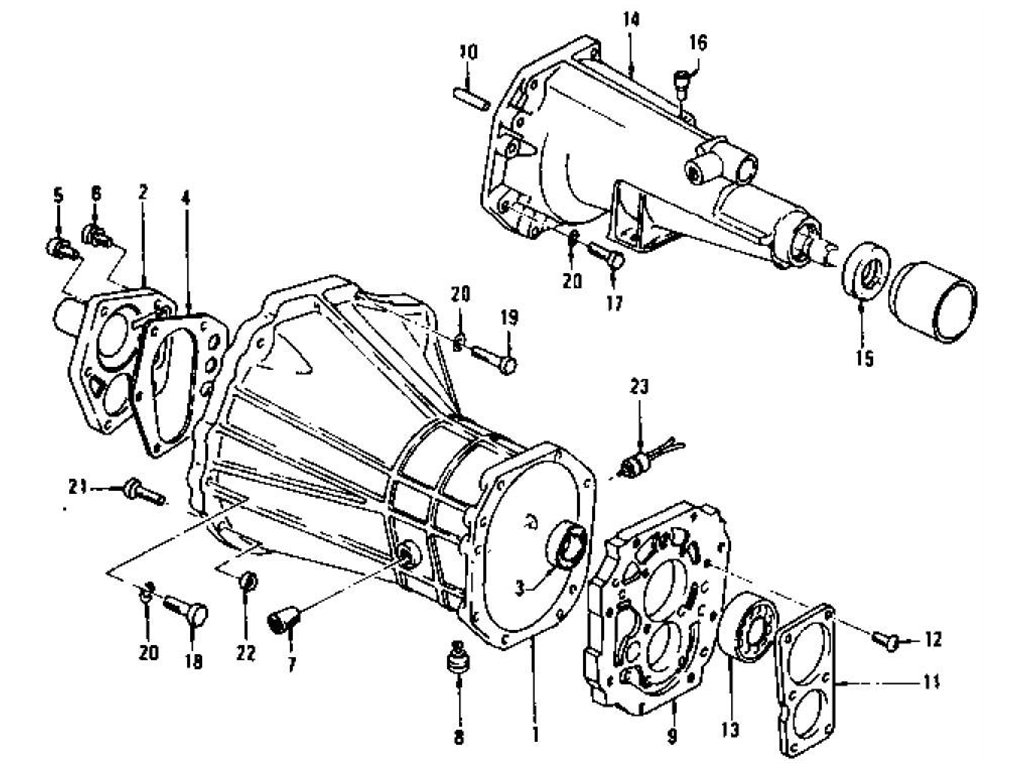

Transmission Case, Rear Extension & Breather (5 Speed-FS5W71B) (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CASE-TRANSMISSION | 32101-E9017 | 5 SPEED | 1 | |||||
| 2 | COVER-FRONT CASE | 32111-E9000 | 5 SPEED | 1 | |||||
| 2 | COVER-FRONT CASE | 32111-E9001 | 5 SPEED | 1 | Yes | Yes | 32111-E9000 | ||
| 2 | COVER-FRONT CASE | 32111-E9011 | 5 SPEED | 1 | Yes | Yes | 32111-E9001 | ||
| 2 | COVER-FRONT CASE | 32111-E9013 | 5 SPEED | 1 | Yes | Yes | 32111-E9011 | ||
| 3 | SEAL-OIL FRONT COVER | 32114-20100 | 5 SPEED | 1 | |||||
| 3 | SEAL-OIL FRONT COVER | 32114-Y4000 | 5 SPEED | 1 | Yes | Yes | 32114-20100 | ||
| 4 | GASKET-FRONT COVER | 32112-E9001 | 5 SPEED | 1 | |||||
| 5 | BOLT | 32135-K0500 | 5 SPEED | 4 | |||||
| 6 | BOLT | 32136-M0111 | 5 SPEED | 1 | |||||
| 7 | PLUG | 01642-00011 | 5 SPEED | 7608 | 7703 | 1 | |||
| 7 | PLUG | 01642-00021 | 5 SPEED | 7704 | 1 | Yes | Yes | 01642-00011 | |
| 8 | ASSY-PLUG DRAIN | 32103-14601 | 5 SPEED | 7608 | 7703 | 1 | Yes | Yes | 32103-14600 |
| 8 | ASSY-PLUG DRAIN | 32103-N4600 | 5 SPEED | 7704 | 7709 | 1 | Yes | Yes | 32103-14601 |
| 8 | ASSY-PLUG DRAIN | 32103-U8400 | 5 SPEED | 7710 | 1 | Yes | Yes | 32103-N4600 | |
| 9 | PLATE-ADAPTER | 32138-E9000 | 5 SPEED | 1 | |||||
| 10 | DOWEL-PIN | 32106-20100 | 5 SPEED | 2 | |||||
| 11 | RETAINER-MAIN SHAFT | 32139-E9010 | 5 SPEED | 1 | |||||
| 12 | SCREW | 01141-00021 | 5 SPEED | 6 | |||||
| 13 | BEARING-MAIN SHAFT | 32273-36900 | 5 SPEED | 1 | |||||
| 14 | ASSY-EXTENSION REAR | 32130-E9401 | 5 SPEED | 1 | |||||
| 15 | SEAL-OIL REAR EXTENS | 32136-U0100 | 5 SPEED | 1 | |||||
| 16 | BREATHER | 38322-78000 | 5 SPEED | 1 | |||||
| 17 | BOLT | 08120-86510 | 5 SPEED | 8 | |||||
| 18 | BOLT-FIXING T/M TO E | 08131-06510 | 5 SPEED | 1 | |||||
| 19 | BOLT-FIXING T/M TO E | 08131-06010 | 5 SPEED | 3 | |||||
| 20 | WASHER-LOCK FIXING T | 08915-24010 | 5 SPEED | 4 | |||||
| 21 | BOLT-FIXING T/M TO E | 08110-82510 | 5 SPEED | 2 | |||||
| 22 | NUT-FIXING T/M CASE | 08911-10810 | 5 SPEED | 2 | |||||
| 23 | ASSY-SWITCH REVERSE | 32005-K1000 | 5 SPEED | 1 |
