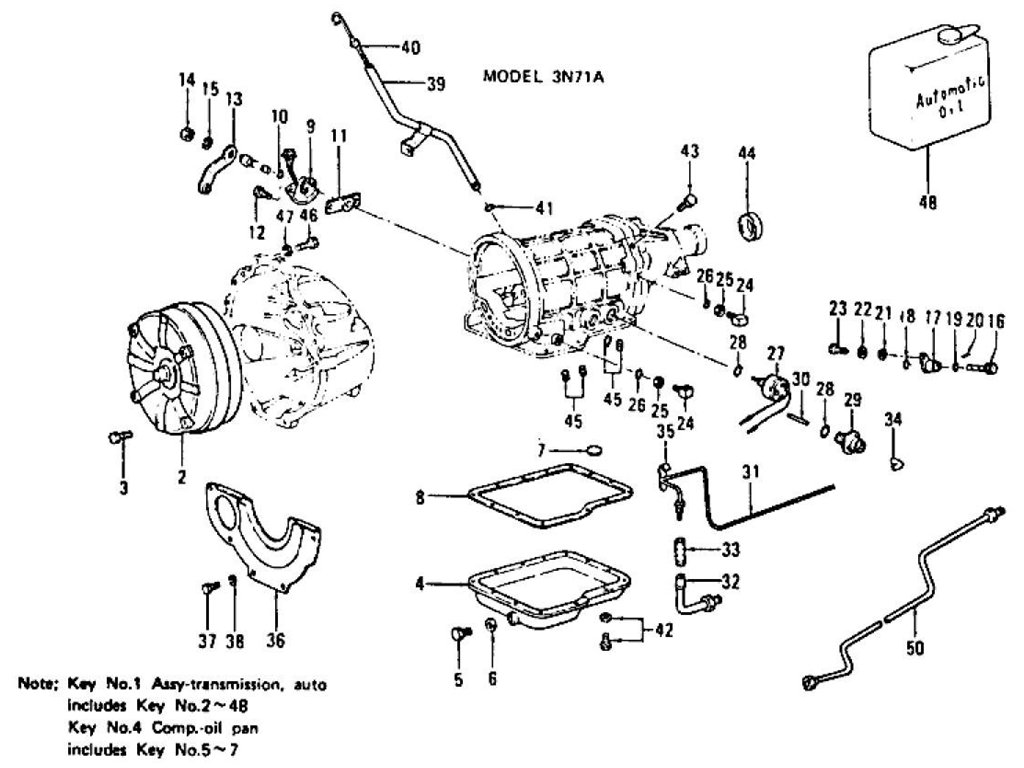

Transmission Case [1] (Automatic-3N71A) (To Mar.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TRANSMIS | 31000-E8050 | AUTOMATIC | 1 | |||||
| 1 | ASSY-TRANSMIS.AUTO.( | 31000-E8051 | AUTOMATIC | 1 | Yes | Yes | 31000-E8050 | ||
| 2 | ASSY-CONVERTER TORQU | 31100-E0100 | AUTOMATIC | 1 | |||||
| 2 | ASSY-CONVERTER TORQU | 31100-X0500 | AUTOMATIC | 1 | Yes | Yes | 31100-E0100 | ||
| 3 | BOLT-CONVERTER | 31009-77500 | AUTOMATIC | 4 | |||||
| 4 | COMP-OIL PAN | 31390-20301 | AUTOMATIC | 1 | |||||
| 4 | COMP-OIL PAN | 31390-X0900 | AUTOMATIC | 1 | Yes | Yes | 31390-20301 | ||
| 4 | COMP-OIL PAN | 31390-X0901 | AUTOMATIC | 1 | Yes | Yes | 31390-X0900 | ||
| 5 | PLUG-DRAIN OIL PAN | 31394-20300 | AUTOMATIC | 1 | |||||
| 6 | GASKET-DRAIN PLUG | 31395-20300 | AUTOMATIC | 1 | |||||
| 7 | MAGNET-OIL PAN | 31396-20300 | AUTOMATIC | 1 | |||||
| 8 | GASKET-OIL PAN | 31397-20301 | AUTOMATIC | 1 | |||||
| 8 | GASKET-OIL PAN | 31397-H1000 | AUTOMATIC | 1 | Yes | Yes | 31397-20301 | ||
| 8 | GASKET-OIL PAN | 31397-X0101 | AUTOMATIC | 1 | Yes | Yes | 31397-H1000 | ||
| 9 | ASSY-SWITCH INHIBITO | 31918-H0100 | AUTOMATIC | 1 | |||||
| 9 | ASSY-SWITCH INHIBITO | 31918-H0101 | AUTOMATIC | 1 | 31918-H0100 | ||||
| 9 | ASSY-SWITCH INHIBITO | 31918-X0101 | AUTOMATIC | 1 | Yes | Yes | 31918-H0101 | ||
| 10 | SEAL-"O" RING | 31916-H0101 | AUTOMATIC | 1 | |||||
| 10 | SEAL-"O" RING | 31916-X0100 | AUTOMATIC | 1 | Yes | Yes | 31916-H0101 | ||
| 11 | GASKET-INHIBITOR | 31919-H0100 | AUTOMATIC | 1 | |||||
| 11 | GASKET-INHIBITOR | 31919-X0100 | AUTOMATIC | 1 | Yes | Yes | 31919-H0100 | ||
| 11 | GASKET-INHIBITOR | 31919-X0101 | AUTOMATIC | 1 | Yes | Yes | 31919-X0100 | ||
| 12 | BOLT-INHIBITOR SWITC | 08160-61210 | AUTOMATIC | 1 | |||||
| 12 | BOLT-INHIBITOR SWITC | 08160-62010 | AUTOMATIC | 1 | 08160-61210 | ||||
| 13 | LEVER-RANGE SELECT | 31913-E4701 | AUTOMATIC | 1 | |||||
| 14 | NUT | 01211-00011 | AUTOMATIC | 1 | Yes | Yes | 08911-34410 | ||
| 14 | NUT | 08911-34410 | AUTOMATIC | 1 | |||||
| 15 | WASHER-LOCK | 08916-34410 | AUTOMATIC | 1 | |||||
| 16 | ASSY-PINION SPEEDOME | 32703-E8000 | AUTOMATIC | 1 | |||||
| 17 | SLEEVE ASSY-SPEEDOME | 32707-78000 | AUTOMATIC | 1 | Yes | Yes | 32707-E8000 | ||
| 17 | SLEEVE ASSY-SPEEDOME | 32707-E8000 | AUTOMATIC | 1 | |||||
| 18 | SEAL-OIL SPEEDOMETER | 32709-14600 | AUTOMATIC | 1 | |||||
| 19 | SEAL-"O" RING | 32710-14600 | AUTOMATIC | 1 | |||||
| 20 | PIN-RETAINING SPEEDO | 32873-14600 | AUTOMATIC | 1 | |||||
| 21 | PLATE-LOCK SPEEDOMET | 32718-14600 | AUTOMATIC | 1 | |||||
| 22 | WASHER-LOCK (M6) | 08915-13610 | AUTOMATIC | 1 | |||||
| 23 | BOLT-SPEEDOMETER (M6 | 08110-61210 | AUTOMATIC | 1 | |||||
| 24 | CONNECTOR-OIL TUBE | 31881-77550 | AUTOMATIC | 2 | |||||
| 25 | NUT-OIL TUBE | 31882-20300 | AUTOMATIC | 2 | |||||
| 26 | SEAL-"O" RING | 31883-20301 | AUTOMATIC | 2 | |||||
| 27 | ASSY-SOLENOID DOWN S | 31941-H0101 | AUTOMATIC | 1 | |||||
| 27 | ASSY-SOLENOID DOWN S | 31941-X0101 | AUTOMATIC | 1 | Yes | Yes | 31941-H0101 | ||
| 27 | ASSY-SOLENOID DOWN S | 31941-X0102 | AUTOMATIC | 1 | Yes | Yes | 31941-X0101 | ||
| 27 | ASSY-SOLENOID DOWN S | 31941-X0103 | AUTOMATIC | 1 | Yes | Yes | 31941-X0102 | ||
| 28 | SEAL-"O" RING (26S) | 31933-X0100 | AUTOMATIC | 2 | Yes | Yes | 31933-20300 | ||
| 28 | SEAL-"O" RING (26S) | 31933-20300 | AUTOMATIC | 2 | |||||
| 29 | ASSY-DIAPHRAGM VACUU | 31931-H0101 | AUTOMATIC | 1 | |||||
| 29 | ASSY-DIAPHRAGM VACUU | 31931-X0101 | AUTOMATIC | 1 | Yes | Yes | 31931-H0101 | ||
| 29 | ASSY-DIAPHRAGM VACUU | 31931-X0102 | AUTOMATIC | 1 | Yes | Yes | 31931-X0101 | ||
| 30 | ROD-DIAPHRAGM L=29.0 | 31932-20303 | AUTOMATIC | 1 | |||||
| 30 | ROD-DIAPHRAGM L=29.0 | 31932-X0103 | AUTOMATIC | 1 | Yes | Yes | 31932-20303 | ||
| 30 | ROD-DIAPHRAGM L=29.5 | 31932-20304 | AUTOMATIC | 1 | |||||
| 30 | ROD-DIAPHRAGM L=29.5 | 31932-X0104 | AUTOMATIC | 1 | Yes | Yes | 31932-20304 | ||
| 30 | ROD-DIAPHRAGM L=30.0 | 31932-20300 | AUTOMATIC | 1 | |||||
| 30 | ROD-DIAPHRAGM L=30.0 | 31932-X0100 | AUTOMATIC | 1 | Yes | Yes | 31932-20300 | ||
| 30 | ROD-DIAPHRAGM L=30.5 | 31932-20302 | AUTOMATIC | 1 | |||||
| 30 | ROD-DIAPHRAGM L=30.5 | 31932-X0102 | AUTOMATIC | 1 | Yes | Yes | 31932-20302 | ||
| 30 | ROD-DIAPHRAGM L=31.0 | 31932-20301 | AUTOMATIC | 1 | |||||
| 30 | ROD-DIAPHRAGM L31.0 | 31932-X0101 | AUTOMATIC | 1 | Yes | Yes | 31932-20301 | ||
| 31 | TUBE-VACUUM | 31061-E3200 | AUTOMATIC | 1 | |||||
| 32 | CONNECTOR-VACUUM TUB | 31063-E7900 | AUTOMATIC | 1 | |||||
| 33 | JOINT-TUBE | 31067-E0100 | AUTOMATIC | 1 | |||||
| 33 | JOINT-TUBE | 31067-U7000 | AUTOMATIC | 1 | Yes | Yes | 31067-E0100 | ||
| 34 | TUBE-ELBOW | 31064-20300 | AUTOMATIC | 1 | |||||
| 34 | TUBE-ELBOW | 31064-U7000 | AUTOMATIC | 1 | Yes | Yes | 31064-20300 | ||
| 35 | CLAMP-VACUUM TUBE | 31065-A4000 | AUTOMATIC | 1 | |||||
| 36 | COVER-DUST CLUTCH HO | 30422-21000 | AUTOMATIC | 1 | |||||
| 36 | COVER-DUST CLUTCH HO | 30422-B6500 | AUTOMATIC | 1 | |||||
| 36 | COVER-DUST CLUTCH HO | 30422-Y0100 | AUTOMATIC | 1 | Yes | Yes | 30422-B6500 | ||
| 37 | BOLT-FIXING DUST COV | 08110-61210 | AUTOMATIC | 4 | |||||
| 38 | WASHER FIXING DUST C | 08915-13610 | AUTOMATIC | 4 | |||||
| 39 | PIPE-OIL CHARGING | 31080-21200 | AUTOMATIC | 1 | |||||
| 40 | GAUGE-OIL LEVEL | 31086-20301 | AUTOMATIC | 1 | |||||
| 41 | SEAL-"O" RING (20S) | 31084-20300 | AUTOMATIC | 1 | |||||
| 42 | BOLT WITH WASHER OIL | 08110-61262 | AUTOMATIC | 14 | |||||
| 43 | BREATHER-AIR | 31381-E4000 | AUTOMATIC | 1 | |||||
| 44 | SEAL-OIL REAR EXTENS | 32136-07200 | AUTOMATIC | 1 | |||||
| 44 | SEAL-OIL REAR EXTENS | 32136-E0100 | AUTOMATIC | 1 | Yes | Yes | 32136-07200 | ||
| 44 | SEAL-OIL REAR EXTENS | 32136-U0100 | AUTOMATIC | 1 | Yes | Yes | 32136-E0100 | ||
| 45 | PLUG-SQUARE HEAD | 00931-10200 | AUTOMATIC | 4 | |||||
| 45 | PLUG-SQUARE HEAD | 00931-10210 | AUTOMATIC | 4 | Yes | Yes | 00931-10200 | ||
| 46 | BOLT-TRANSMISSION TO | 08131-04010 | AUTOMATIC | 4 | |||||
| 47 | WASHER-SPRING | 08915-14010 | AUTOMATIC | 4 | |||||
| 48 | OIL-TORQUE CONVERTER | 01L07-00004 | AUTOMATIC | 1 | |||||
| 49 | KIT-GASKET | 31000-H0126 | AUTOMATIC | 1 | |||||
| 50 | ASSY-TUBE OIL COOLER | 21621-E7900 | AUTOMATIC | 1 | |||||
| 50 | ASSY-TUBE OIL COOLER | 21623-E7900 | AUTOMATIC | 1 |
