Search Item:Key: Part Name: Part Number:

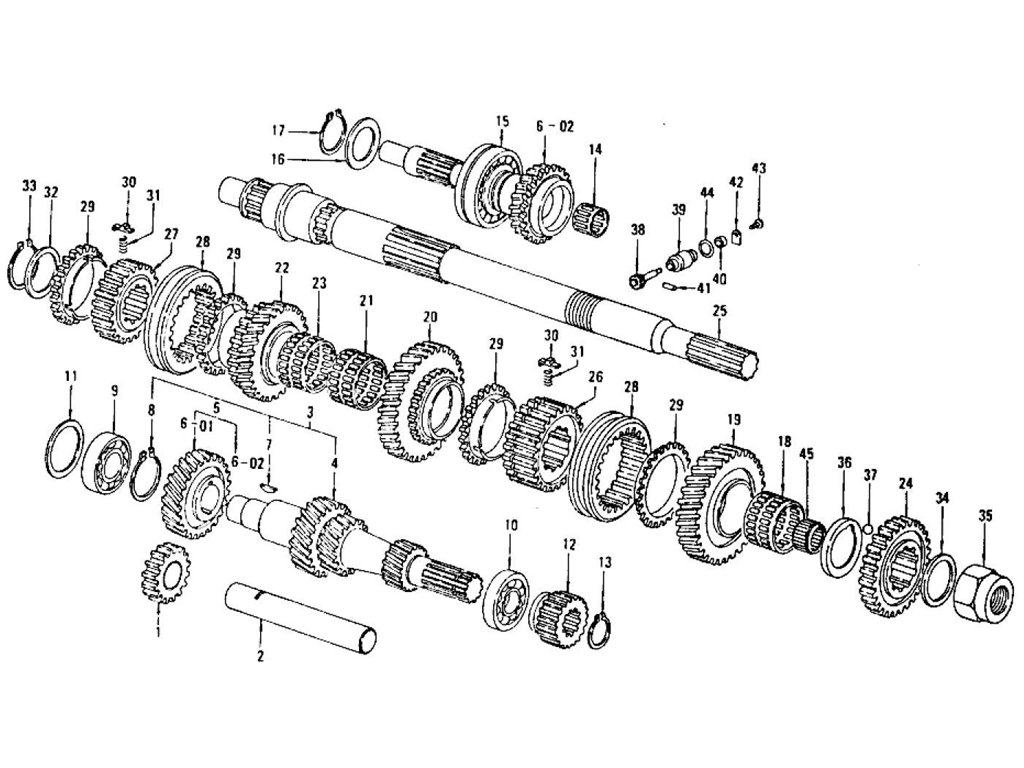

Transmission Gears, Speedometer Pinion (4 Speed-F4W71B) (From Sep.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEAR-REVERSE IDLER | 32280-E9200 | 4 SPEED | 7411 | 1 | ||||
| 1 | GEAR-REVERSE IDLER | 32280-E9201 | 4 SPEED | 7412 | 1 | No | No | 32280-E9200 | |
| 1 | SERVICE FILE GEAR REVERSE | 32280-E9226 | 4 SPEED | 1 | Yes | Yes | 32280-E9201 | ||
| 2 | SHAFT-REVERSE IDLER | 32281-E9200 | 4 SPEED | 1 | |||||
| 3 | ASSY-GEAR | 32210-E9201 | 4 SPEED | 7411 | 1 | ||||
| 3 | ASSY-GEAR | 32210-E9202 | 4 SPEED | 7412 | 1 | No | No | 32210-E9201 | |
| 4 | GEAR-COUNTER | 32212-E9201 | 4 SPEED | 1 | |||||
| 5 | SET-GEAR MAIN & COUN | 32200-E9450 | 4 SPEED | 7412 | 1 | No | No | 32200-E9051 | |
| 5 | SET-GEAR MAIN&COUNTO | 32200-E9051 | 4 SPEED | 7411 | 1 | Yes | Yes | 32200-E9050 | |
| 5 | SET-GEAR | 32200-E9050 | 4 SPEED | 1 | |||||
| 6 | GEAR-COUNTER DRIVE | 32217-E9001 | 4 SPEED | 1 | |||||
| 6 | GEAR-MAIN DRIVE | 32200-E9001 | 4 SPEED | 1 | |||||
| 6 | GEAR-MAIN DRIVE | 32200-E9400 | 4 SPEED | 7412 | 1 | ||||
| 7 | KEY-WOODRUFF | 32214-E9000 | 4 SPEED | 2 | |||||
| 8 | RING-SNAP(1.4T) | 32215-E9000 | 4 SPEED | 1 | |||||
| 8 | RING-SNAP(1.5T) | 32215-E9001 | 4 SPEED | 1 | |||||
| 8 | RING-SNAP(1.6T) | 32215-E9002 | 4 SPEED | 1 | |||||
| 9 | BEARING-COUNTER SHAF | 32219-E9000 | 4 SPEED | 1 | |||||
| 10 | BEARING-COUNTER SHAF | 32203-18000 | 4 SPEED | 1 | |||||
| 11 | SHIM-BEARING COUNTER | 32218-E9000 | 4 SPEED | 1 | |||||
| 11 | SHIM-BEARING COUNTER | 32218-E9001 | 4 SPEED | 1 | |||||
| 11 | SHIM-BEARING COUNTER | 32218-E9002 | 4 SPEED | 1 | |||||
| 11 | SHIM-BEARING COUNTER | 32218-E9003 | 4 SPEED | 1 | |||||
| 11 | SHIM-BEARING COUNTER | 32218-E9004 | 4 SPEED | 1 | |||||
| 11 | SHIM-BEARING COUNTER | 32218-E9005 | 4 SPEED | 1 | |||||
| 12 | GEAR-REVERSE COUNTER | 32220-E9200 | 4 SPEED | 7411 | 1 | ||||
| 12 | GEAR-REVERSE COUNTER | 32220-E9201 | 4 SPEED | 7412 | 1 | 32220-E9200 | |||
| 12 | SERVICE FILE GEAR REVERSE | 32280-E9226 | 4 SPEED | 1 | Yes | Yes | 32220-E9201 | ||
| 13 | RING-SNAP(1.4T) | 32228-E9200 | 4 SPEED | 1 | |||||
| 13 | RING-SNAP(1.5T) | 32228-E9201 | 4 SPEED | 1 | |||||
| 13 | RING-SNAP(1.6T) | 32228-E9202 | 4 SPEED | 1 | |||||
| 14 | BEARING-PILOT | 32272-36900 | 4 SPEED | 1 | |||||
| 15 | BEARING-MAIN DRIVE | 32273-04100 | 4 SPEED | 1 | |||||
| 16 | SPACER-BEARING MAIN | 32205-78000 | 4 SPEED | 1 | |||||
| 17 | RING-SNAP (1.73) | 32204-78005 | 4 SPEED | 1 | |||||
| 17 | RING-SNAP(1.80T) | 32204-78000 | 4 SPEED | 1 | |||||
| 17 | RING-SNAP(1.87T) | 32204-78001 | 4 SPEED | 1 | |||||
| 17 | RING-SNAP(1.94T) | 32204-78002 | 4 SPEED | 1 | |||||
| 17 | RING-SNAP(2.01T) | 32204-78003 | 4 SPEED | 1 | |||||
| 17 | RING-SNAP(2.08T) | 32204-78004 | 4 SPEED | 1 | |||||
| 18 | BEARING-NEEDLE | 32264-14600 | 4 SPEED | 1 | |||||
| 19 | ASSY-GEAR | 32242-E9200 | 4 SPEED | 1 | |||||
| 20 | ASSY-GEAR | 32250-E9200 | 4 SPEED | 1 | |||||
| 21 | BEARING-NEEDLE | 32264-14600 | 4 SPEED | 1 | |||||
| 22 | ASSY-GEAR | 32260-E9200 | 4 SPEED | 1 | |||||
| 23 | BEARING-NEEDLE | 32264-14600 | 4 SPEED | 1 | |||||
| 24 | GEAR-REVERSE MAIN SH | 32245-E9200 | 4 SPEED | 7411 | 1 | ||||
| 24 | GEAR-REVERSE MAIN SH | 32245-E9201 | 4 SPEED | 7412 | 1 | 32245-E9200 | |||
| 24 | SERVICE FILE GEAR REVERSE | 32280-E9226 | 4 SPEED | 1 | Yes | Yes | 32245-E9201 | ||
| 25 | SHAFT-MAIN | 32241-E9000 | 4 SPEED | 1 | |||||
| 26 | HUB-SYNCHRONIZER | 32601-E9200 | 4 SPEED | 1 | |||||
| 27 | HUB-SYNCHRONIZER | 32605-E9000 | 4 SPEED | 1 | |||||
| 28 | SLEEVE-COUPLING | 32606-E9000 | 4 SPEED | 2 | |||||
| 28 | SLEEVE-COUPLING | 32606-E9001 | 4 SPEED | 7708 | 2 | Yes | Yes | 32606-E9000 | |
| 29 | RING-BAULK | 32604-P0100 | 4 SPEED | 4 | |||||
| 30 | INSERT-SHIFTING | 32609-E9000 | 4 SPEED | 6 | |||||
| 31 | SPRING-SHIFTING INSE | 32602-32200 | 4 SPEED | 6 | |||||
| 32 | WASHER-THRUST SYNCHR | 32207-E9000 | 4 SPEED | 1 | |||||
| 33 | RING-SNAP(1.4T) | 32263-E9000 | 4 SPEED | 1 | |||||
| 33 | RING-SNAP(1.5T) | 32263-E9001 | 4 SPEED | 1 | |||||
| 33 | RING-SNAP(1.6T) | 32263-E9002 | 4 SPEED | 1 | |||||
| 34 | WASHER-PLAIN | 32353-E9000 | 4 SPEED | 1 | |||||
| 35 | NUT | 32354-E9000 | 4 SPEED | 1 | |||||
| 36 | WASHER-THRUST | 32246-E9200 | 4 SPEED | 1 | |||||
| 37 | BALL-STEEL | 32720-14600 | 4 STEEL | 1 | |||||
| 38 | ASSY-PINION SPEEDOME | 32703-P2617 | 4 SPEED | 7110 | 1 | ||||
| 38 | ASSY-PINION SPEEDOME | 32703-P2616 | 4 SPEED | 7111 | 7411 | 1 | No | No | 32703-P2617 |
| 38 | ASSY-PINION SPEEDOME | 32703-P2617 | 4 SPEED | 7412 | 1 | No | No | 32703-P2616 | |
| 39 | ASSY-SLEEVE SPEEDOME | 32707-66300 | 4 SPEED | 1 | |||||
| 40 | SEAL-OIL | 32709-14600 | 4 SPEED | 1 | |||||
| 41 | PIN-RETAINING | 32873-14600 | 4 SPEED | 1 | |||||
| 42 | PLATE-LOCK | 32718-14600 | 4 SPEED | 1 | |||||
| 43 | BOLT-HEX | 08110-61262 | 4 SPEED | 1 | |||||
| 44 | RING-"O" | 32710-14600 | 4 SPEED | 1 | |||||
| 45 | BUSHING 1ST GEAR | 32253-14600 | 4 SPEED | 1 |
