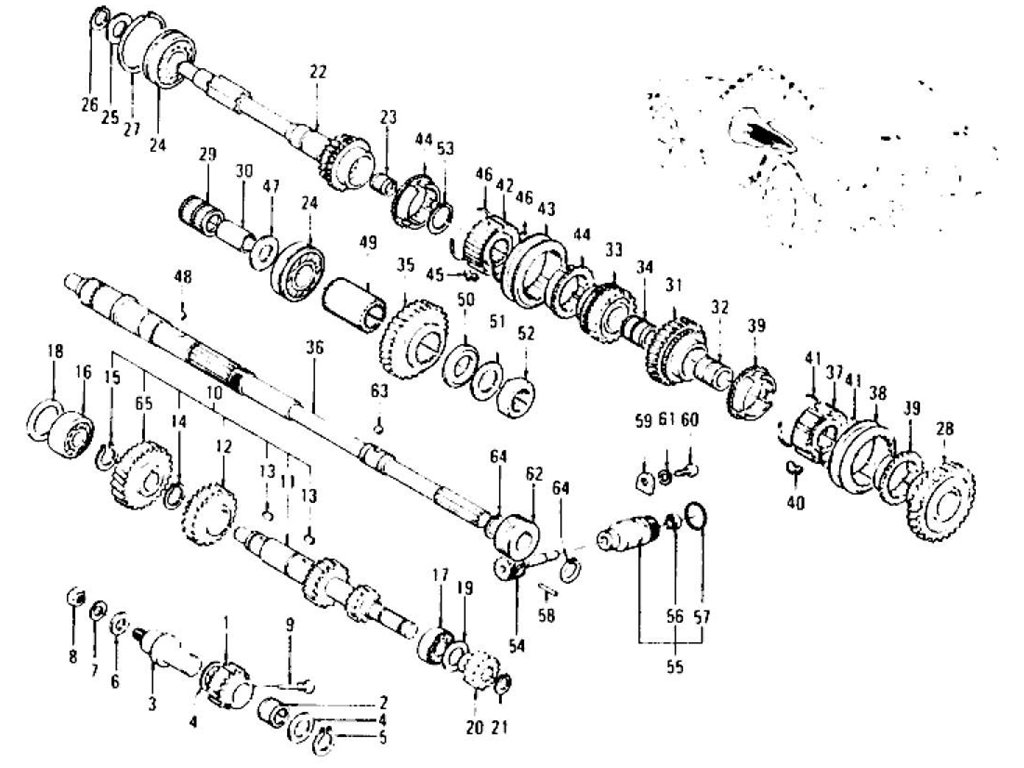

Transmission Gears, Speedometer Pinion (4 Speed-F4W71A) (To Aug.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEAR-REVERSE IDLER | 32282-78010 | 4 SPEED | 1 | |||||
| 2 | BERING-NEEDLE 20X26X | 32272-36900 | 4 SPEED | 1 | |||||
| 3 | SHAFT-REVERSE IDLER | 32281-78010 | 4 SPEED | 1 | |||||
| 3 | SHAFT-REVERSE IDLER | 32281-E3501 | 4 SPEED | 1 | 32281-78010 | ||||
| 4 | WASHER-THRUST REVERS | 32284-78000 | 4 SPEED | 2 | |||||
| 5 | RING-SNAP REVERSE ID | 32285-20100 | 4 SPEED | 1 | |||||
| 6 | WASHER-PLAIN | 32294-78010 | 4 SPEED | 1 | |||||
| 7 | WASHE-SPRING | 08915-14410 | 4 SPEED | 1 | |||||
| 8 | NUT-REVERSE IDLEER S | 01211-00011 | 4 SPEED | 1 | Yes | Yes | 08911-34410 | ||
| 8 | NUT-REVERSE IDLER SH | 08911-34410 | 4 SPEED | 1 | |||||
| 9 | SCREW-SET REVERSE ID | 32290-78000 | 4 SPEED | 1 | |||||
| 10 | ASSY-SHAFT COUNTER | 32210-78010 | 4 SPEED | 1 | |||||
| 11 | SHAFT-COUNTER | 32212-78010 | 4 SPEED | 1 | |||||
| 12 | GEAR-3RD SPEED COUNT | 32216-78010 | 4 SPEED | 1 | |||||
| 13 | KEY-WOODRUFF | 00926-51600 | 4 SPEED | 4 | |||||
| 14 | RING-SNAP | 00922-13200 | 4 SPEED | 1 | |||||
| 15 | RING-SNAP | 00922-12800 | 4 SPEED | 1 | |||||
| 16 | BEARING-COUNTER SHAF | 32273-14360 | 4 SPEED | 1 | |||||
| 17 | BEARING-COUNTER SHAF | 32203-78000 | 4 SPEED | 1 | |||||
| 17 | BEARING-COUNTER SHAF | 32203-E0100 | 4 SPEED | 1 | Yes | Yes | 32203-78000 | ||
| 18 | RING-BEARING COUNTER | 32224-20100 | 4 SPEED | 1 | |||||
| 19 | SHIM-BEARING COUNTER | 32218-20100 | 4 SPEED | 1 | |||||
| 19 | SHIM-BEARING COUNTER | 32218-20101 | 4 SPEED | 1 | |||||
| 19 | SHIM-BEARING COUNTER | 32218-20102 | 4 SPEED | 1 | |||||
| 19 | SHIM-BEARING COUNTER | 32218-20103 | 4 SPEED | 1 | |||||
| 19 | SHIM-BEARING COUNTER | 32218-20104 | 4 SPEED | 1 | |||||
| 19 | SHIM-BEARING COUNTER | 32218-20105 | 4 SPEED | 1 | |||||
| 19 | SHM-BEARING COUNTER | 32218-20106 | 4 SPEED | 1 | |||||
| 20 | GEAR-REVERSE COUNTER | 32220-78010 | 4 SPEED | 1 | |||||
| 21 | RING-SNAP REVERSE CO | 32228-20100 | 4 SPEED | 1 | |||||
| 21 | RING-SNAP REVERSE CO | 32228-20101 | 4 SPEED | 1 | |||||
| 21 | RING-SNAP REVERSE CO | 32228-20102 | 4 SPEED | 1 | |||||
| 21 | RING-SNAP REVERSE CO | 32228-20104 | 4 SPEED | 1 | |||||
| 22 | ASSY-GEAR MAIN DRIVE | 32200-78010 | 4 SPEED | 1 | |||||
| 22 | SET-GEAR MAIN DRIVE | 32200-78055 | 4 SPEED | 1 | Yes | Yes | 32200-78010 | ||
| 23 | BEARNG-PILOT MAIN SH | 32272-36900 | 4 SPEED | 1 | |||||
| 24 | BEARING-MAIN DRIVE G | 32273-04100 | 4 SPEED | 2 | |||||
| 25 | SPACER-BEARING MAIN | 32205-78000 | 4 SPEED | 1 | |||||
| 26 | RING-SNAP MAIN DRIVE | 32204-78000 | 4 SPEED | 1 | |||||
| 26 | RING-SNAP MAIN DRIVE | 32204-78001 | 4 SPEED | 1 | |||||
| 26 | RING-SNAP MAIN DRIVE | 32204-78002 | 4 SPEED | 1 | |||||
| 26 | RING-SNAP MAIN DRIVE | 32204-78003 | 4 SPEED | 1 | |||||
| 27 | RING-BEARING MAIN DR | 32207-20100 | 4 SPEED | 1 | |||||
| 27 | RING-BEARING MAIN DR | 32207-20101 | 4 SPEED | 1 | |||||
| 27 | RING-BEARING MAIN DR | 32207-20102 | 4 SPEED | 1 | |||||
| 28 | ASSY-GEAR 1ST SPEED | 32242-78010 | 4 SPEED | 1 | |||||
| 29 | BEARING-NEEDLE 1ST | 32264-14600 | 4 SPEED | 1 | |||||
| 30 | BUSH-1ST GEAR MAIN S | 32253-14600 | 4 SPEED | 1 | |||||
| 31 | ASSY-GEAR 2ND SPEED | 32250-78010 | 4 SPEED | 1 | |||||
| 32 | BEARING-NEEDLE 2ND | 32264-14600 | 4 SPEED | 1 | |||||
| 33 | ASSY-GEAR 3RD SPEED | 32260-78010 | 4 SPEED | 1 | |||||
| 34 | BEARING-NEEDLE 3RD | 32264-14600 | 4 SPEED | 1 | |||||
| 35 | GEAR-REVERSE MAIN SH | 32245-78010 | 4 SPEED | 1 | |||||
| 36 | SHAFT-MAIN | 32241-78011 | 4 SPEED | 1 | |||||
| 37 | HUB-SYNCHRO 1ST & 2N | 32601-73200 | 4 SPEED | 1 | Yes | Yes | 32601-A8610 | ||
| 37 | HUB-SYNCHRO 1ST & 2N | 32601-A8610 | 4 SPEED | 1 | |||||
| 38 | SLEEVE-COUPLING | 32606-73200 | 4 SPEED | 1 | |||||
| 38 | SLEEVE-COUPLING | 32606-N7100 | 4 SPEED | 1 | Yes | Yes | 32606-73200 | ||
| 39 | RING-BAULK | 32604-14810 | 4 SPEED | 2 | |||||
| 39 | RING-BAULK | 32604-A4610 | 4 SPEED | 2 | Yes | Yes | 32604-14810 | ||
| 39 | RING-BAULK | 32604-P0100 | 4 SPEED | 2 | Yes | Yes | 32604-R4610 | ||
| 40 | INSERT-SHIFTING | 32609-73200 | 4 SPEED | 3 | |||||
| 40 | INSERT-SHIFTING | 32609-73201 | 4 SPEED | 3 | Yes | Yes | 32609-73200 | ||
| 41 | SPRING-SPREAD | 32603-73200 | 4 SPEED | 2 | |||||
| 42 | HUB-SYNCHRO 3RD & 4T | 32605-78001 | 4 SPEED | 1 | |||||
| 43 | SLEEVE-COUPLING | 32606-73200 | 4 SPEED | 1 | |||||
| 43 | SLEEVE-COUPLING | 32606-N7100 | 4 SPEED | 1 | Yes | Yes | 32606-73200 | ||
| 44 | RING-BAULK | 32604-14810 | 4 SPEED | 2 | |||||
| 44 | RING-BAULK | 32604-A4610 | 4 SPEED | 2 | Yes | Yes | 32604-14810 | ||
| 44 | RING-BAULK | 32604-P0100 | 4 SPEED | 2 | Yes | Yes | 32604-A4610 | ||
| 45 | INSERT-SHIFTING | 32609-73200 | 4 SPEED | 3 | |||||
| 45 | INSERT-SHIFTING | 32609-73201 | 4 SPEED | 3 | Yes | Yes | 32609-73200 | ||
| 46 | SPRING-SPREAD | 32603-73200 | 4 SPEED | 2 | |||||
| 47 | WASHER-THRUST MAIN S | 32246-78000 | 4 SPEED | 1 | |||||
| 48 | BALL-THRUST MAIN SHA | 32247-20100 | 4 SPEED | 1 | |||||
| 49 | HUB-REVERSE MAIN | 32258-78011 | 4 SPEED | 1 | |||||
| 50 | WASHER-THRUST REVERS | 32352-78002 | 4 SPEED | 1 | |||||
| 51 | RLATE-LOCK | 32353-78001 | 4 SPEED | 1 | |||||
| 52 | NUT-HEX M27X1.0 | 32354-25501 | 4 SPEED | 1 | |||||
| 53 | RING-SNAP SYNCHRO HU | 32263-14601 | 4 SPEED | 1 | |||||
| 53 | RING-SNAP SYNCHRO HU | 32263-14602 | 4 SPEED | 1 | |||||
| 53 | RING-SNAP SYNCHRO HU | 32263-14603 | 4 SPEED | 1 | |||||
| 54 | ASSY-PINION SPEED ME | 32703-78101 | 4 SPEED | 1 | |||||
| 55 | ASSY-SLEEVE SPEED ME | 32707-78000 | 4 SPEED | 1 | |||||
| 56 | SEAL-OIL 10X16X4 | 32709-14600 | 4 SPEED | 1 | |||||
| 57 | RING-"O" PINION SLEE | 32710-14600 | 4 SPEED | 1 | |||||
| 58 | PIN-RETAINING SPEED | 32873-14600 | 4 SPEED | 1 | |||||
| 59 | PLATE-LOCK SPEED MET | 32718-14600 | 4 SPEED | 1 | |||||
| 60 | BOLT-PLATE LOCK M6 | 08110-61210 | 4 SPEED | 1 | |||||
| 61 | WASHER SPRING | 08915-13610 | 4 SPEED | 1 | |||||
| 62 | GEAR-DRIVE 6T | 32701-66005 | 4 SPEED | 1 | |||||
| 63 | BALL-STEEL 1/4 | 32720-36900 | 4 SPEED | 1 | |||||
| 64 | RING-SNAP | 32228-20101 | 4 SPEED | 2 | |||||
| 65 | GEAR-COUNTER SHAFT D | 32200-78055 | 4 SPEED | 1 | Yes | Yes | 32217-78010 | ||
| 65 | GEAR-COUNTER SHAFT D | 32217-78010 | 4 SPEED | 1 |
