Search Item:Key: Part Name: Part Number:

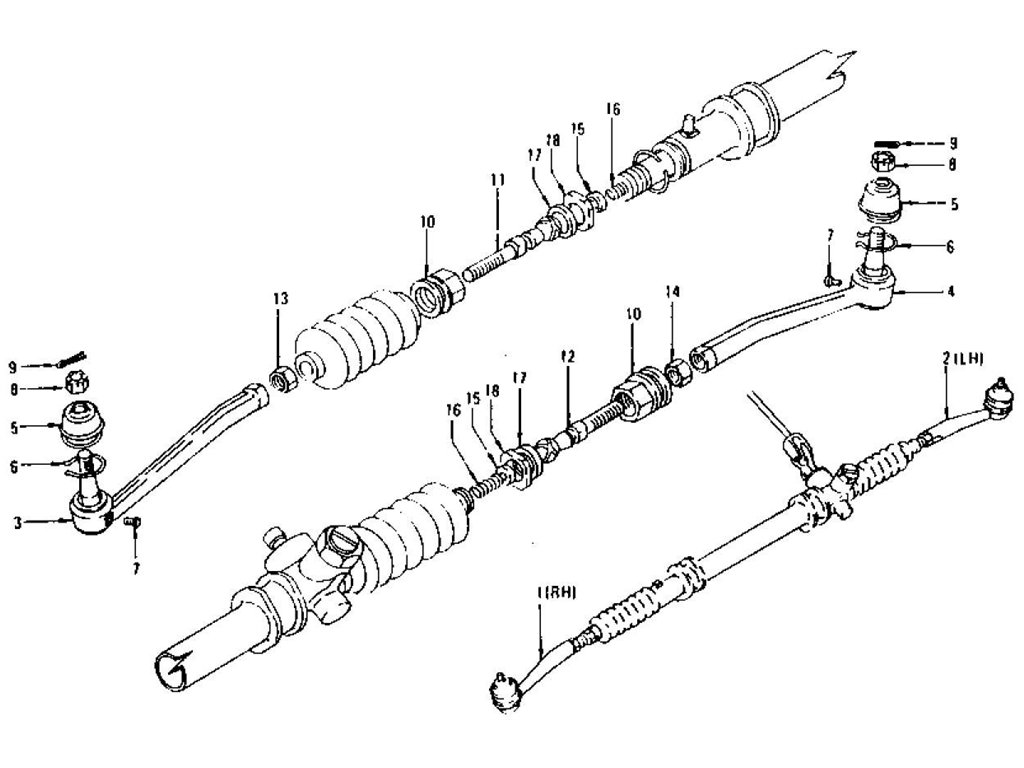

Steering Linkage
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-ROD SIDE RH | 48510-E8700 | 1 | Yes | Yes | 48510-E6000 | |||
| 1 | ASSY-ROD SIDE RH | 48510-E6000 | 1 | ||||||
| 2 | ASSY-ROD SIDE LH | 48630-E6000 | 1 | ||||||
| 2 | ASSY-ROD SIDE LH | 48630-E8700 | 1 | Yes | Yes | 48630-E6000 | |||
| 3 | ASSY-SOCKET SIDE ROD | 48520-78500 | 1 | ||||||
| 4 | ASSY-SOCKET SIDE ROD | 48640-78500 | 1 | ||||||
| 5 | COVER-DUST SIDE ROD | 48522-21000 | 2 | ||||||
| 6 | CLAMP-DUST COVER SID | 48548-18000 | 2 | ||||||
| 7 | PLUG-FILLER | 40189-73000 | 2 | ||||||
| 8 | NUT-HEX | 01227-00031 | 2 | Yes | Yes | 08911-04210 | |||
| 8 | NUT-HEX M12X1.25 | 08911-04210 | 2 | ||||||
| 9 | PIN-COTTER 3.25X25 | 08921-32510 | 2 | ||||||
| 10 | SOCKET-SIDE ROD INNE | 48528-E6000 | 2 | ||||||
| 11 | BAR-SIDE ROD RH | 48511-E8725 | 1 | Yes | Yes | 48512-E6025 | |||
| 11 | BAR-SIDE ROD RH | 48512-E6025 | 1 | ||||||
| 12 | BAR-SIDE ROD LH | 48612-E6025 | 7110 | 1 | |||||
| 12 | BAR-SIDE ROD LH | 48611-E8725 | 7111 | 1 | 48612-E6025 | ||||
| 13 | NUT-HEX LOCK M14X1.5 | 01211-00011 | 1 | Yes | Yes | 08911-34410 | |||
| 13 | NUT-HEX LOCK M14X1.5 | 08911-34410 | 1 | ||||||
| 14 | NUT-LOCK SIDE ROD LH | 01211-00021 | 1 | Yes | Yes | 48514-78500 | |||
| 14 | NUT-LOCK SIDE ROD LH | 48514-78500 | 1 | ||||||
| 15 | SEAT-SPRING | 48515-78502 | 2 | ||||||
| 16 | SPRING-SIDE ROD INNE | 48518-78500 | 2 | ||||||
| 17 | SPACER-LOCK NUT STEE | 48635-E4100 | 7307 | 2 | |||||
| 17 | SPACER-LOCK NUT STEE | 48635-N3400 | 2 SEATER | 7308 | 2 | No | No | 48635-E4100 | |
| 18 | NUT-STOPPER STEERING | 48634-78500 | 7110 | 2 | |||||
| 18 | NUT-STOPPER STEERING | 48634-E8700 | 7111 | 2 | No | No | 48634-78500 |
